Corning (3M) UY Splice Connector, 26-22awg (100 pieces)
$19.97
Reference#: 68058
Item#: UY
Item#: UY
Description

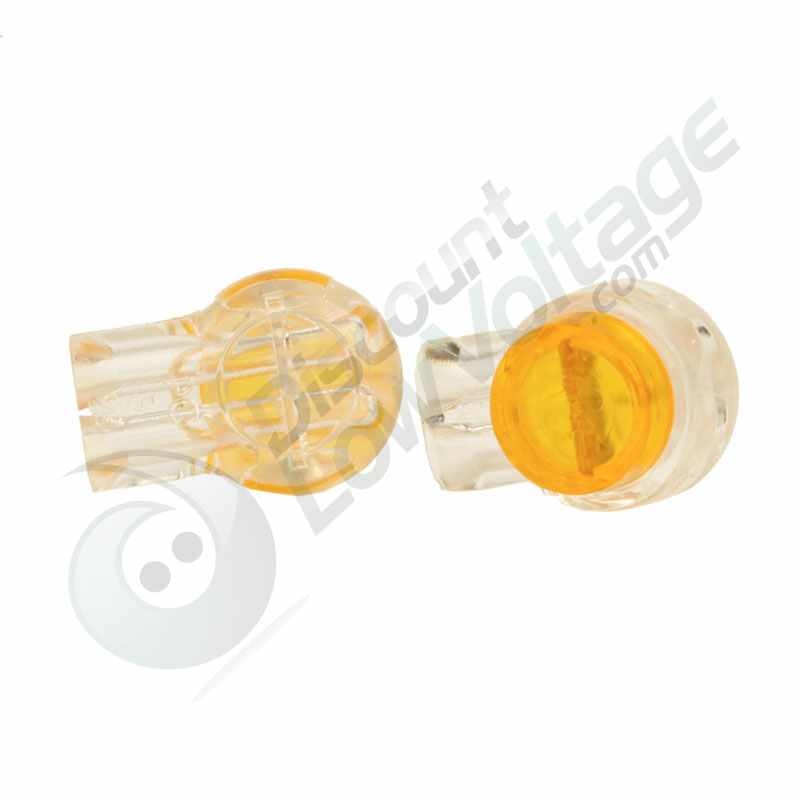

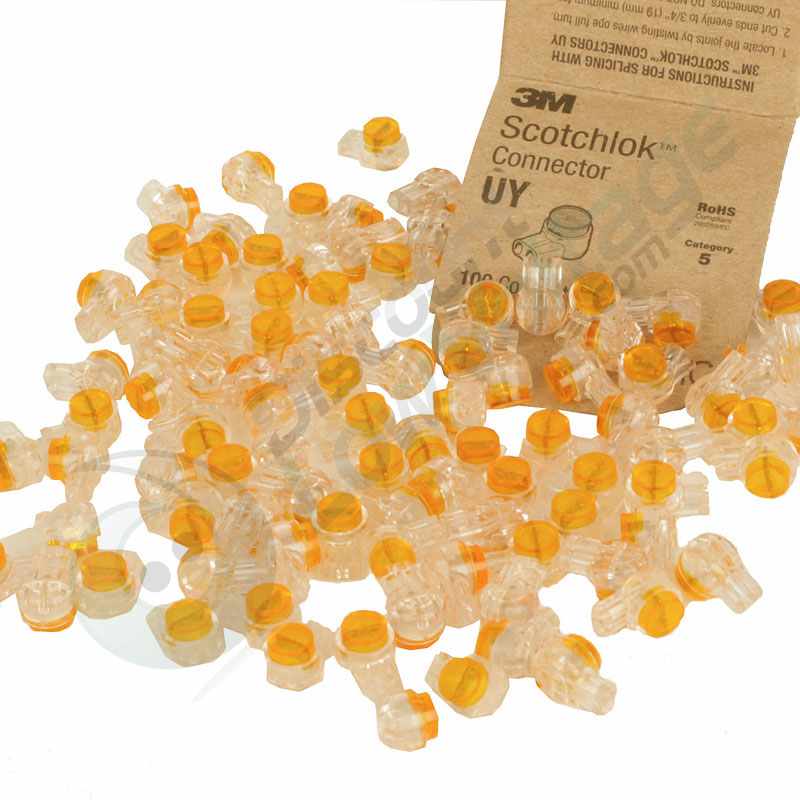

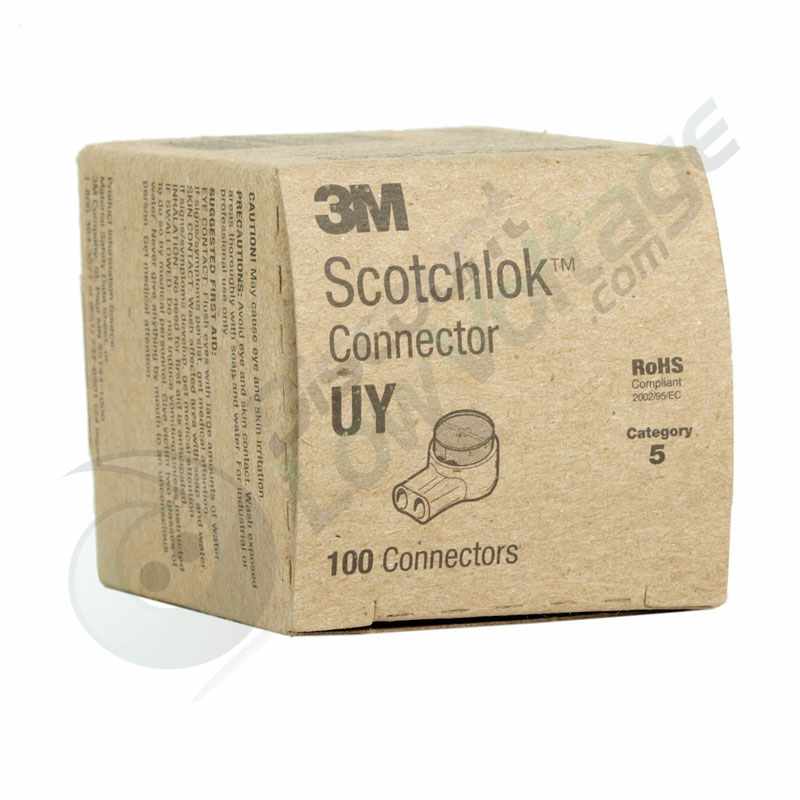

Corning (3M) Scotchlok UY Splice Connectors
UY splice connectors enable connecting wires without the need of isolation stripping. They are Gel filled for Moisture Resistance and for PIC Cable Applications. UY connectors should be used for wires with external coat up to 1.52mm in diameter and 0.4-0.7 wire diameter.
You can find 26-19 AWG UY2 Splice Connectors here:
UY2 Splice Connectors
Features
2 wire
22-26 AWG
1.52mm/.06" Maximum Insulation O.D.
Polycarbonate
UL Listed
22-26 AWG
1.52mm/.06" Maximum Insulation O.D.
Polycarbonate
UL Listed
Specification
Cable Type: PIC
Component Type: Connector
Composition: Filled
Connector Type: Butt/2 Conductor
Flame Retardant: No
Insulation Outside Diameter: 0.060 Inch
Maximum Wire Gauge: 22 AWG
Minimum Wire Gauge: 26 AWG
Product Family: UY
RUS Listed: Yes
Trademark Name 1: 3M
Trademark Name 2: Scotchlok
Component Type: Connector
Composition: Filled
Connector Type: Butt/2 Conductor
Flame Retardant: No
Insulation Outside Diameter: 0.060 Inch
Maximum Wire Gauge: 22 AWG
Minimum Wire Gauge: 26 AWG
Product Family: UY
RUS Listed: Yes
Trademark Name 1: 3M
Trademark Name 2: Scotchlok
