3M 50/100 Pair Better Buried Splice Closures
Item#: 3M-BB2X24-8882
Description
Features
Benefits:
Better Buried End Caps
Tapered end caps can be trimmed and slit for exact cable size required. Single, double and triple entry styles are available dependent on size. When adding a branch cable to an existing cable, grooved end caps can be easily split in the field and quickly released with Locking “H” strips provided in each kit.
3M Scotchcast™ Strain Relief Bars
Strain relief bars can be installed on a simple or double sheath cable to protect the splice from electrical interference and damage from the cable tension. The aluminum strain relief bar assemble includes hose clamps and an insulation sleeve.
3M Scotchcast Spacer Web 4430
Spacer web is designed to protect splice connectors by positioning them away from the closure walls. Better coverage is achieved because compound flows around the complete bundle.
• Protects splice components
• Enhanced coverage
Hose Clamps
Hose clamps secure the closure body and end caps.
• Corrosion resistant
• Easy to install
• Re-enterable
Specification
Approx. Compound Included Volume: 1320 Millilitre
China RoHS - Below MCV: Yes
Closure Length End to End: 28.0 Inch
Cover Length: 24.0 Inch
Encapsulated: Yes
Encapsulation Method: Gravity Pour
Endcap I (max. dia.): Port 1 (1.2 inches)
Endcap II (max. dia.): Port 1 (1.2 inches) Port 2 ( 0.7 inches)
EU RoHS Compliant: Yes
Maximum Splice Bundle Diameter: 2.0 Inch
Maximum Splice Opening: 17.0 Inch
Re-enterable: Yes
Connector Type: Modular, Discrete
Maximum Cable Pair Count: 50 Pair, 100 Pair
UPC: 0–00–51115–14661–9
3M ID: 80–6111–4783–8

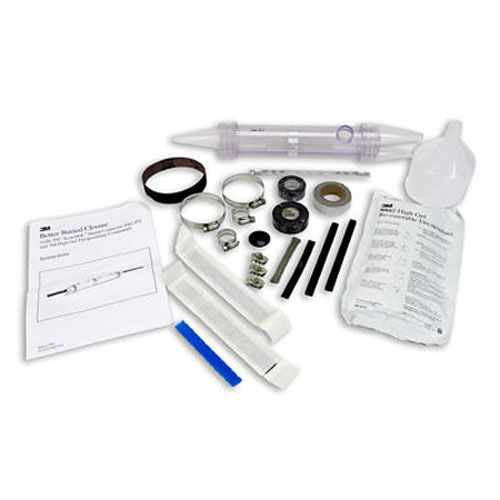

Kit Contents:
• 3M™ Scotchlok™ Shield Bond Connectors
• 3M™ Better Buried Sleeve Kits (Closure Extension)
• 8882 High Gel Encapsulating Compound (re-enterable)
• Hose clamps
• Scotch® Vinyl Tape 88T
• 3M™ Scotchcast™ Spacer Web 4430 (for re-entry only)
• DR Tape
• Sheath scuff material
• Scotch® Linerless Rubber Splicing Tape 130C
• 3M™ Scotchcast™ Pair Saver 4458 or 4458W
• Scotch® Rubber Splicing Tape 23
• 3M™ Scotchcast™ Strain Relief Bar Kits 4465 or 4465-L
• B Sealing Tape
• Bonding braid
• 3M™ Better Buried End Caps (bulk) 1 port and 2 ports (1 in and 2 out)
• Funnel
• Closure body
