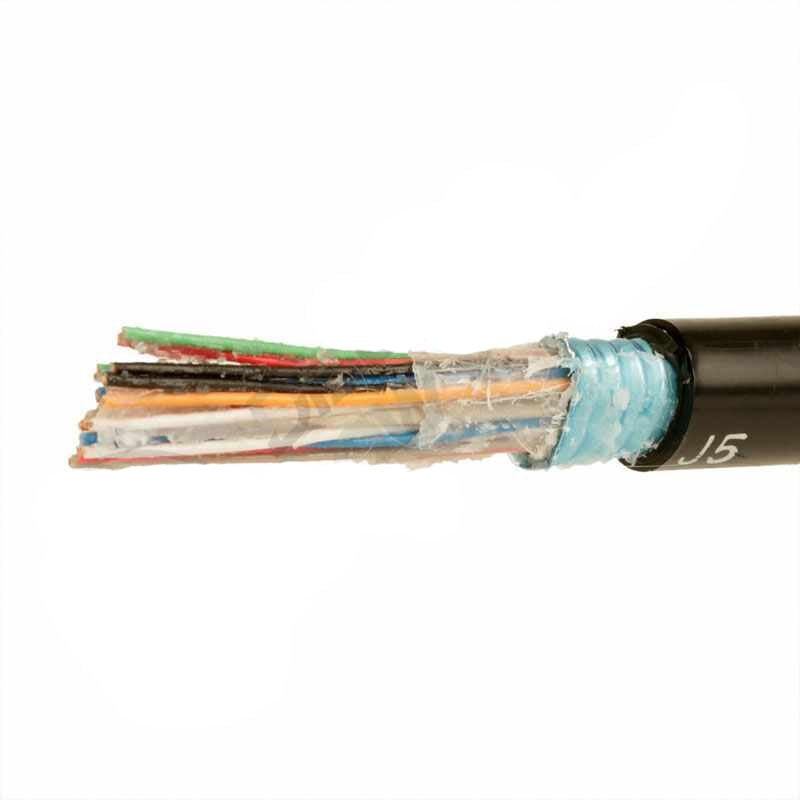

12 Pair 22AWG Telephone Cable - PE89 Direct Burial (Per Foot)
$1.74
Reference#: 74741
Item#: BC1892422BKGN
Item#: BC1892422BKGN
Description
UTILITY
The shielding jacket and filling and flooding compounds in our 12 Pair 22AWG PE89 Direct Burial Telephone Cable provide exceptional durability and moisture resistance. Use it where you need protection from the elements, whether as an aerial cable or as an underground phone cable. For a core wrap, it boasts a non-hygroscopic dielectric tape applied longitudinally with an overlap. It has an aluminum shield comprised of corrugated, copolymer-coated 0.008” aluminum tape applied longitudinally with an overlap and sheath interfaces flooded with an adhesive water-blocking compound. The jacket is black, linear low-density polyethylene.
AVAILABILITY
Use this direct-burial gel-filled phone cable in an underground conduit. It is also suitable for outdoor applications without the use of conduit, for direct burial applications, saving materials and installation costs.
·Core Construction: Solid, annealed copper, size 22 AWG
·Insulation: Color-coded in accordance with industry standards
·Twisted Pairs: Insulated conductors are twisted into pairs with varying lengths to minimize crosstalk
Get free shipping on qualified orders on this telephone cable. It usually takes two to five business days. Faster shipping options are available if you need your order sooner.
VALUE
Discount Low Voltage has spent thousands of dollars on advanced cable reeling equipment, so we can cut this cable to the exact length you request. For even greater savings, take advantage of our quantity discounts for orders of 1,000 feet or more. Questions about this cable? Call us toll-free for quick answers during normal business hours. Or use the "Ask a Question" feature and we'll reply back to you as soon as possible.
The shielding jacket and filling and flooding compounds in our 12 Pair 22AWG PE89 Direct Burial Telephone Cable provide exceptional durability and moisture resistance. Use it where you need protection from the elements, whether as an aerial cable or as an underground phone cable. For a core wrap, it boasts a non-hygroscopic dielectric tape applied longitudinally with an overlap. It has an aluminum shield comprised of corrugated, copolymer-coated 0.008” aluminum tape applied longitudinally with an overlap and sheath interfaces flooded with an adhesive water-blocking compound. The jacket is black, linear low-density polyethylene.
AVAILABILITY
Use this direct-burial gel-filled phone cable in an underground conduit. It is also suitable for outdoor applications without the use of conduit, for direct burial applications, saving materials and installation costs.
·Core Construction: Solid, annealed copper, size 22 AWG
·Insulation: Color-coded in accordance with industry standards
·Twisted Pairs: Insulated conductors are twisted into pairs with varying lengths to minimize crosstalk
Get free shipping on qualified orders on this telephone cable. It usually takes two to five business days. Faster shipping options are available if you need your order sooner.
VALUE
Discount Low Voltage has spent thousands of dollars on advanced cable reeling equipment, so we can cut this cable to the exact length you request. For even greater savings, take advantage of our quantity discounts for orders of 1,000 feet or more. Questions about this cable? Call us toll-free for quick answers during normal business hours. Or use the "Ask a Question" feature and we'll reply back to you as soon as possible.
Specification
Core Construction:
Solid, annealed copper; size 22 AWG
Insulation:
Color-coded in accordance with telephone industry standards
Twisted Pairs:
Insulated conductors are twisted into pairs with varying lay lengths to minimize crosstalk
Core Assembly:
12 Pair Telephone Cable: pairs are assembled together in a single group
Core Wrap:
Non-hygroscopic dielectric tape applied longitudinally with an overlap
Aluminum Shield:
Corrugated, copolymer-coated, 0.008" aluminum tape applied longitudinally with an overlap
The sheath interfaces are flooded with an adhesive water-blocking compound
Jacket:
Black, linear low density polyethylene
Compliance:
Rural Development Utility Program(RDUP) 7 CFR 1755.890 (RUS PE-89)
Solid, annealed copper; size 22 AWG
Insulation:
Color-coded in accordance with telephone industry standards
Twisted Pairs:
Insulated conductors are twisted into pairs with varying lay lengths to minimize crosstalk
Core Assembly:
12 Pair Telephone Cable: pairs are assembled together in a single group
Core Wrap:
Non-hygroscopic dielectric tape applied longitudinally with an overlap
Aluminum Shield:
Corrugated, copolymer-coated, 0.008" aluminum tape applied longitudinally with an overlap
The sheath interfaces are flooded with an adhesive water-blocking compound
Jacket:
Black, linear low density polyethylene
Compliance:
Rural Development Utility Program(RDUP) 7 CFR 1755.890 (RUS PE-89)
