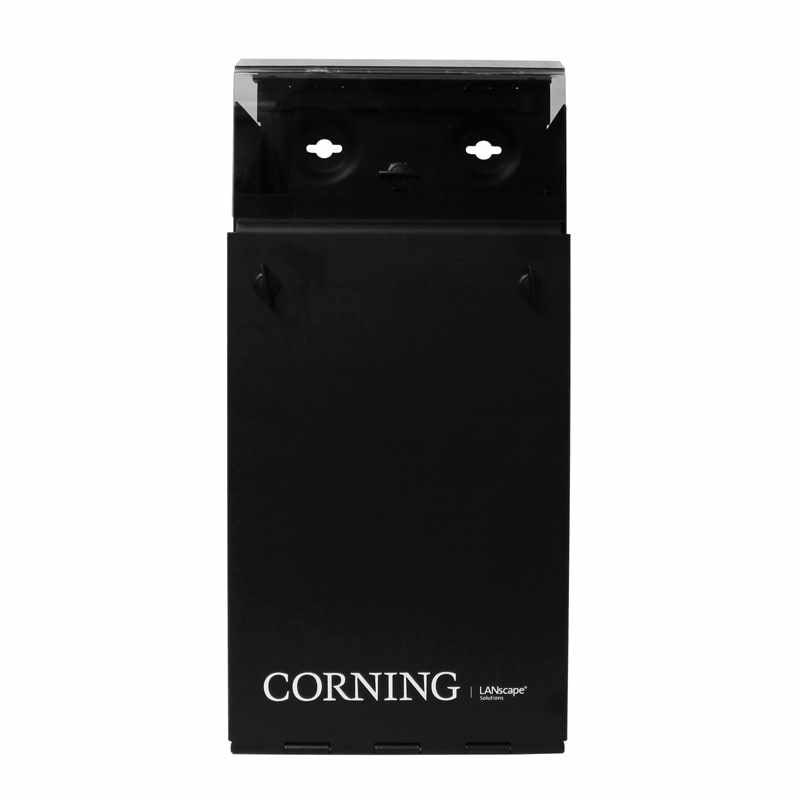

Corning 2 Panel Wall Mount Enclosure

$129.95
Reference#: 69252
Item#: COR-WCH-02P



Description

Corning wall-mountable connector housing (WCH) product family offers enhanced innovative features that make installation and troubleshooting of fiber optic connectivity faster, easier and more cost-effective. From fiber and cable routing and strain-relief to port labeling and termination, these housings reduce the risk of error that can disrupt networks.

The WCH housing provides interconnect or cross-connect capabilities between the outside plant, riser or distribution cables and the opto-electronics. With the WCH-02P (two panels, cassettes or modules), WCH-04P (four panels, cassettes or modules), and WCH-06P (six panels, cassettes or modules) capacity, the rugged metal housings can be wall mounted in main cross-connects, telecommunication rooms or other areas where space is a premium. Units accept standard closet connector housing (CCH) cassettes, connector panels and modules for a variety of connectivity options.

The WCH product family features a clear, transparent jumper side door for easy visibility during installation and testing, easy-to-use recessed mounting holes with mounting screws, documentation labels, removable strain-relief brackets, routing clips and guides, improved latches, as well as a preinstalled bubble level for simple and accurate installation. All housings also have field-installable lock kits available for both cable entry and jumper side doors.

* Must use Corning insert panels

Features

  • Interconnect and cross-connect capabilities
  • Variety of applications Interconnect and cross-connect capabilities

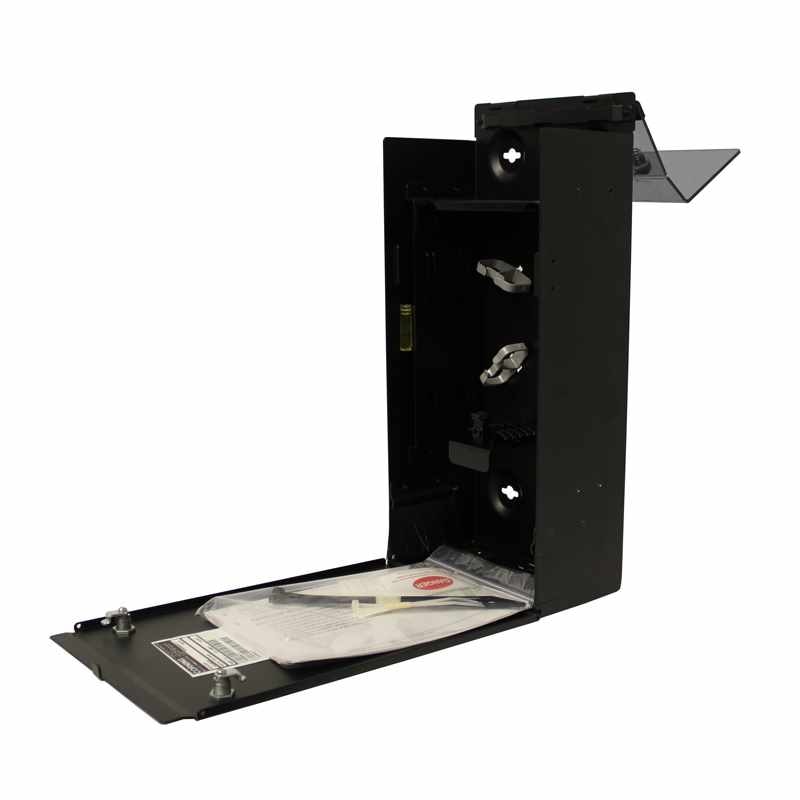

  • Drop-down access door allows for temporary work area during installation

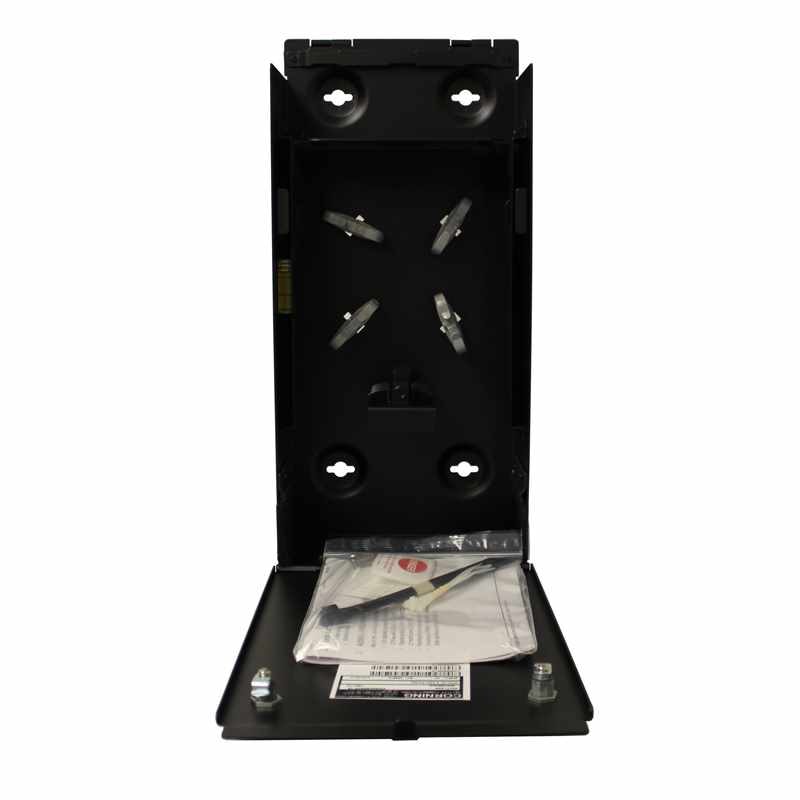

  • Jumper routing guides
  • Easy fiber management
  • Field-installable lock kit (optional) for additional security
  • Durable, rugged metal construction

Specification

Application
  • Enterprise Networks
Mounting Type
  • Wall-mount
Product Type
  • Wall-Mountable Hardware
Housing Color
  • Black
Housing Type
  • WCH
Locking Availability
  • Provider door
Maximum Number of Panels per Housing
  • 2
Panel or Module Type
  • CCH
Splice Tray Options
  • Up to (2) category 2R, or (1) category 4R
Dimensions (HxWxD)
  • 23.5 cm x 33.2 cm x 8.2 cm (9.25 in x 13.25 in x 3.25 in)
RoHS
  • Free of hazardous substances according to RoHS 2002/95/EG
