* DISCONTINUED * 6 Pair Figure 8 w/ 0.25" Messenger, 24AWG, PE38 (per foot)
Item#: 2012015
Description
Notice: This item has been discontinued.
6 pair, 24AWG aerial telephone cable. This 6 pair cable is constructed with a 1/4" steel messenger for aerial applications.
Designed exclusively for aerial installation. Suitable for voice frequency use on all pairs and carrier frequency, both analog and digital, on a selected pair assignment basis.
Specification
* DISCONTINUED *
Solid, annealed, bare copper conductors
Solid polyolefin conductor insulation color-coded to telephone industry standards
Insulated conductors are twisted into pairs of varying lengths of lay to minimize crosstalk
Pairs are stranded into units and the resultant cable core is covered with a non-hygroscopic tape
This cable is finished with a self-support SEALPIC-84 sheath.

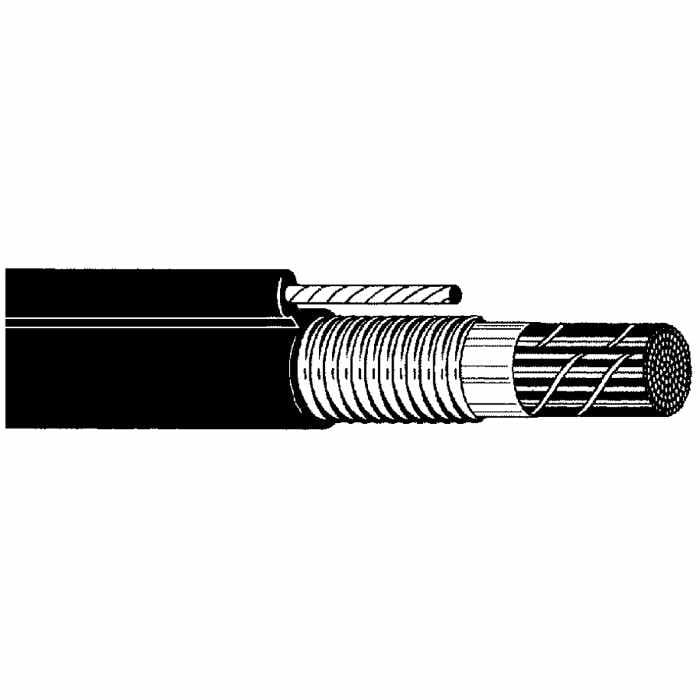

This sheath consists of a polymer-coated, corrugated aluminum shield and a 1/4 in., extra-high-strength, stranded steel messenger laid parallel to it with a common jacket of black polyethylene.
The cross-sectional shape of this construction resembles a Figure 8
