Cat5e 350MHz 25 Pair Indoor CMR (price per foot)

$1.19
Reference#: 71650
Item#: 5E25URGY2



Description

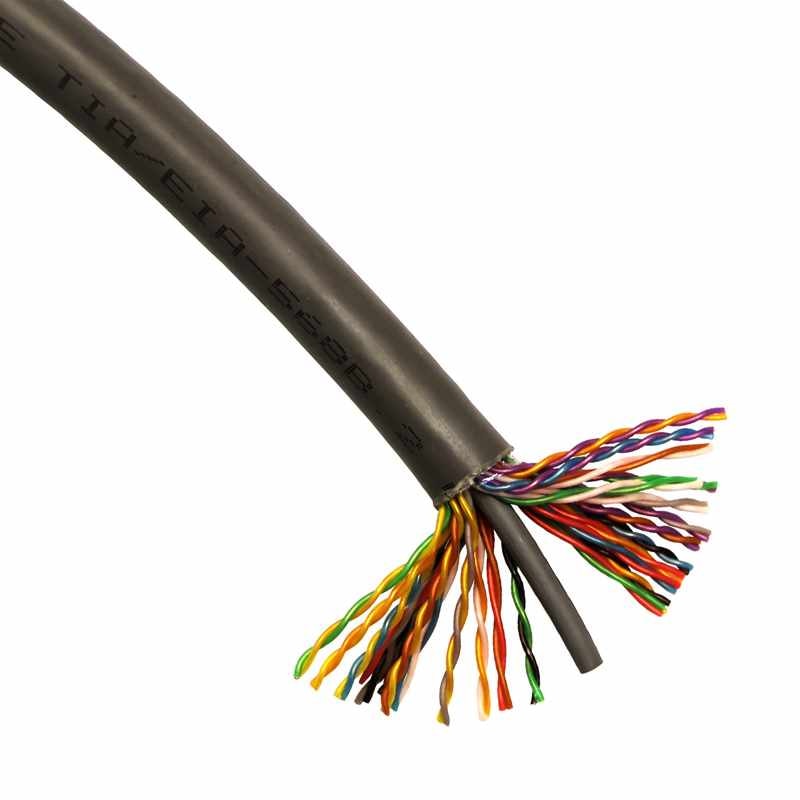

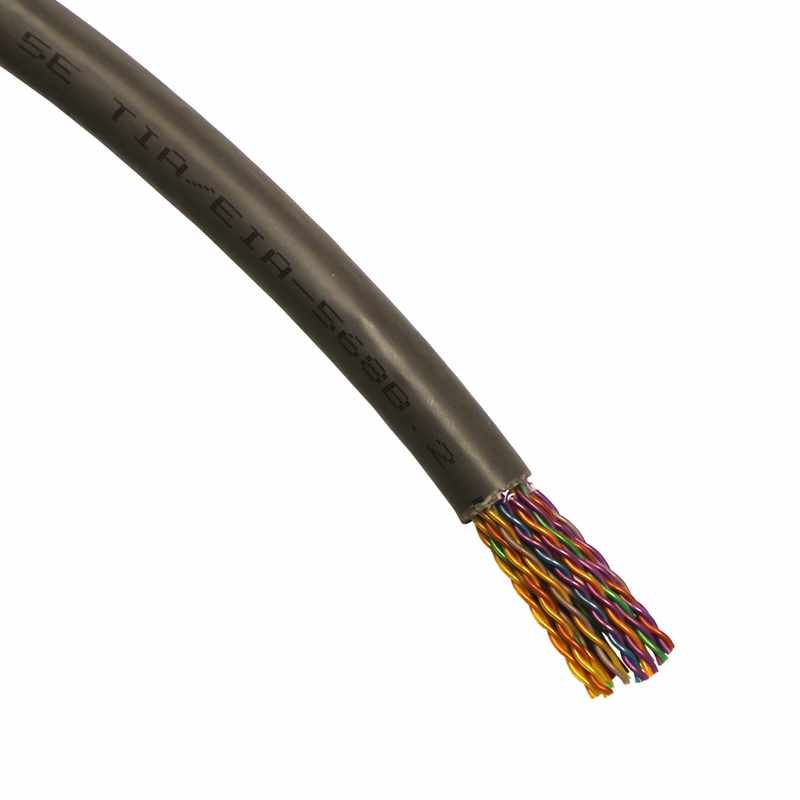

This Cat5e 25 Pair Indoor cable is sold by the foot, and is the perfect fit for reliable installations where the cable will be used for backbone cabling systems. Bulk Cat5e 25 Pair cable is 350MHz rated and has 50 conductors (25-pairs) of 24 AWG unshielded cables. 5E25URGY2 is ETL Listed, ROHS compliant and suitable for 350MHz high speed data applications, Gigabit Ethernet, Fast Ethernet and 155Mbps TP-PMD CDDI. We cut this bulk 25 pair cable here in our warehouse, so there are no order minimums and you can choose the exact length needed for your installation with no wasted cable left over. Order any length between 1ft-1000ft.

Features

  • ETL Listed Type CMR
  • C(ETL) listed CMG FT4
  • ETL Verified to TIA - 568-C.2, and ISO/IEC 11801
  • ROHS Compliant
  • ATM 155 Mbps
  • Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4,
  • 1000 Mbps 1000BASE-T Gigabit Ethernet™ (IEEE 802.3)
  • 16 Mbps Token Ring™ (IEEE 802.5)

    • Specification

    Physical Characteristics
    • Number of Conductor Pairs: 25
    • Size: 24 AWG
    • Stranding: Solid
    • Conductor Material: Solid annealed bare copper
    • Shielded: No
    • Rip Cord: Yes
    • Insulation Overall Diameter: 0.0354 in. ± 0.0002 in.
    • Insulation Average Thickness: 0.00787 in.
    • Insulation Material: HDPE
    • Jacket: Flame Retardant PVC
    • Outer Jacket Average Wall Thickness: 0.043 in. ± 0.0002 in.
    • Outer Jacket Nom. O.D.: 0.492 in. ± 0.0002 in.
    • Assembly Diameter: 0.413 in
    • Twisted Pair Diameter: 0.0709 in.
    • Nominal Weight: .138 lbs/ft

    Mechanical Characteristics
    • Temperature Rating (Installation/Operation): -20°C to + 75°C
    • Min. Bend Radius: 8 times the O.D.
    • Max. Pulling Force: 25 lbs
