Optix America 3X 250um MPO Male (Pins) Multi Mode OM4 Splice-on Connector (Six Pack)

$459.00
Reference#: 77420
Item#: 3XSOC-MPO-OM4-M-250-6



Description

The Optix 3X MPO field installable splice-on connector with patent-pending design offers up to three opportunities to be spliced to avoid costly scrapped connectors on “failed splice” connections. The “One & Done” problem associated with current MPO connectors is solved with these connectors.

Another advantage is that an increased boot length provides excellent strain relief and offers better protection at the fragile splice point. The 30mm splice sleeve is steel-plated on both sides to avoid crushing and stressing the end fibers typically caused by shrinkage upon heating ribbon cable. Designed to be spliced with 250um ribbon, rollable ribbon, or loose tube cable, this connector simplifies the termination of a multi fiber connection, allowing for a reliable termination in field applications.

Features

  • Patent Pending Connector
  • Twenty Year Product Warranty
  • Up to three opportunities to re-splice or reuse the connector
  • Avoid the “One&Done” problem associated with current field installable MPO connectors
  • Avoid costly scrapped connectors on “failed splice” connections
  • No special holders needed

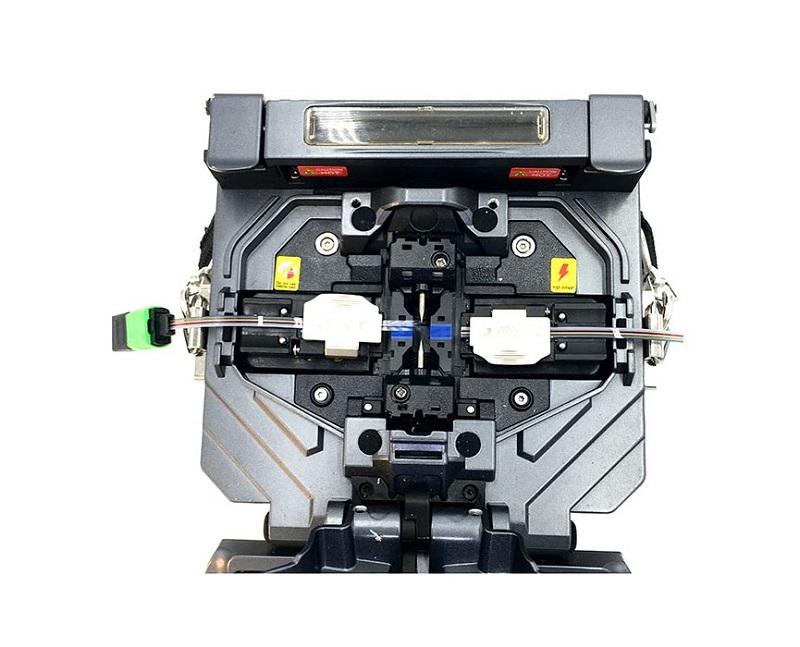

  • Splices easily on any brand fusion splicer

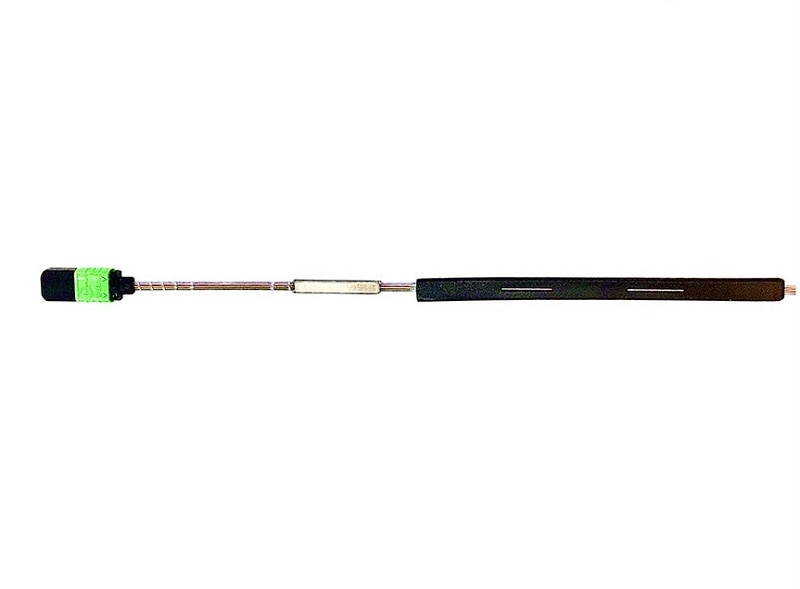

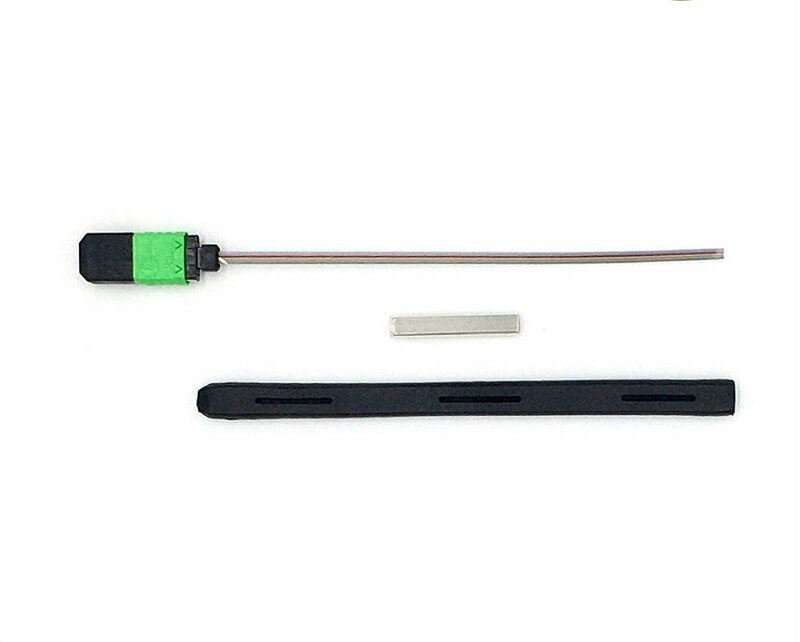

  • Only three parts – flexible silicon boot (126mm), steel-plated splice sleeve (30mm), Fiber stub (122mm)
  • Flexible silicon boot routes easily and neatly even in tight wall enclosures
  • Increased boot length provides better strain relief and protection
  • Double steel-plated splice sleeve for maximum splice area protection
