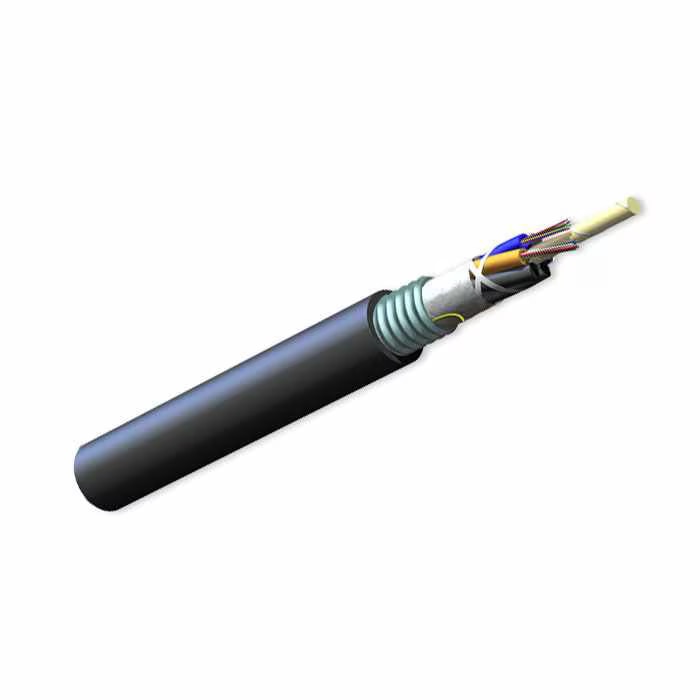

Corning 24 Strand 62.5/125 Multimode OM1 Outdoor Armored Direct Burial Fiber Optic Cable - Black (Per Foot)

$6.19
Reference#: 69139
Item#: COR-024KUC-T4130D20



Description

Corning Cable Systems ALTOS Lite Gel-Free Single-Jacket/Single-Armor Cables are designed for direct-buried applications. The loose tube design provides stable and highly reliable transmission parameters for a variety of voice, data, video and imaging applications. The design also provides high-fiber density within a given cable diameter while allowing flexibility to suit many system designs.

Features

  • Single-armor construction provides additional crush and rodent protection
  • High-strength ripcord under armor for ease of stripping
  • Gel-free design is fully waterblocked using craft-friendly water-swellable yarns and tapes, making cable access simple and requiring no clean up
  • Available in 62.5 μm, 50 μm, single-mode and hybrid versions
  • Standard 3.0 mm buffer tube size reduces the number of access tools required by crafts personnel
  • SZ-stranded, loose tube design isolates fibers from installation and environmental rigors and allows for easy mid-span access

Specification

Nominal Weight (lb/1000 ft)
  • 87
Nominal Outer Diameter
  • 0.48 in
Minimum Bend Radius
  • Loaded:  121 mm (4.8 in)
  • Installed: 182 mm (7.2 in)
Maximum Tensile Loads
  • Short-Term: 2700 N (600 lb)
  • Long-Term: 890 N (200 lb)
Temperatures
  • Storage -40°C to 70°C (-40°F to 158°F)
  • Installation: -30°C to 70°C (-22°F to 158°F)
  • Operation: -40°C to 70°C (-40°F to 158°F)
Application
Aerial, Direct Buried, Duct
