Corning 12 Port Duplex LC SM Panel
$209.50
Reference#: 77358
Item#: CCH-CP24-A9
Item#: CCH-CP24-A9
Description

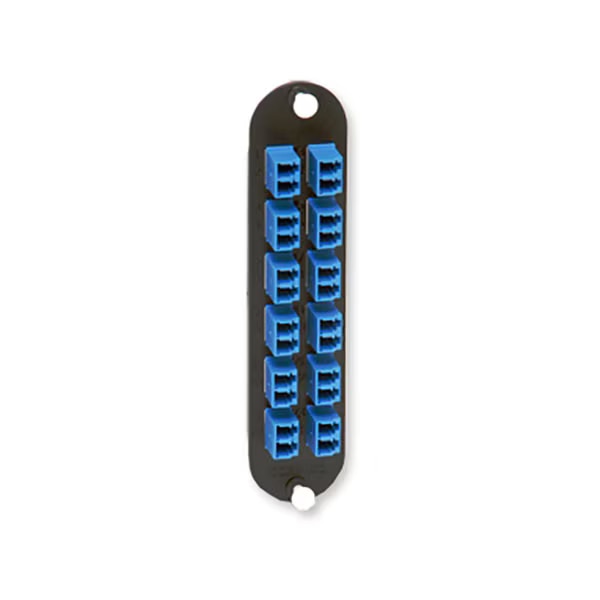

The Corning CCH-CP24-A9 loaded LC fiber panel has 12 duplex LC couplers, capable of holding 24 strands of fiber optic cable. This panel is for use with singlemode fiber optic cable and connectors. Corning Cable Systems Closet Connector Housing Panels (CCH-CP) are offered in a variety of fiber counts for use with LANscape® Solutions hardware products for a “one-size-fits-all” approach. Used with factory-installed or field-installable connectors, these panels provide interconnect or cross-connect capability in a housing at main cross-connects, intermediate cross-connects, telecommunication rooms or work areas. Available with a variety of industry-standard adapter types, the CCH-CP provides an efficient way to securely mate two connectors and offers multimode and single-mode applications.
* For installation with Corning boxes only
Features
- Universal design approach
- One-size-fits-all LANscape Solutions housings
- Broadest range of fiber count and adapter types
- Solutions for all needs
- Colored icon labeling
- Easy connector identification
- One-size-fits-all LANscape Solutions housings
- Broadest range of fiber count and adapter types
- Solutions for all needs
- Colored icon labeling
- Easy connector identification
Specification
General Specifications
Application Enterprise Networks, Data Center
Product Type Panels & Modules
Fiber Category SM
Design - Hardware
Connector Polish UPC
Fiber Count 24
Number of Adapters per Panel 12
Design Adapter
Adapter Housing Color Blue
Adapter Housing Material Composite
Adapter Style Standard
Adapter Type LC duplex
Insert Material Ceramic
Chemical characteristics
RoHS Free of hazardous substances according to RoHS 2002/95/EG
