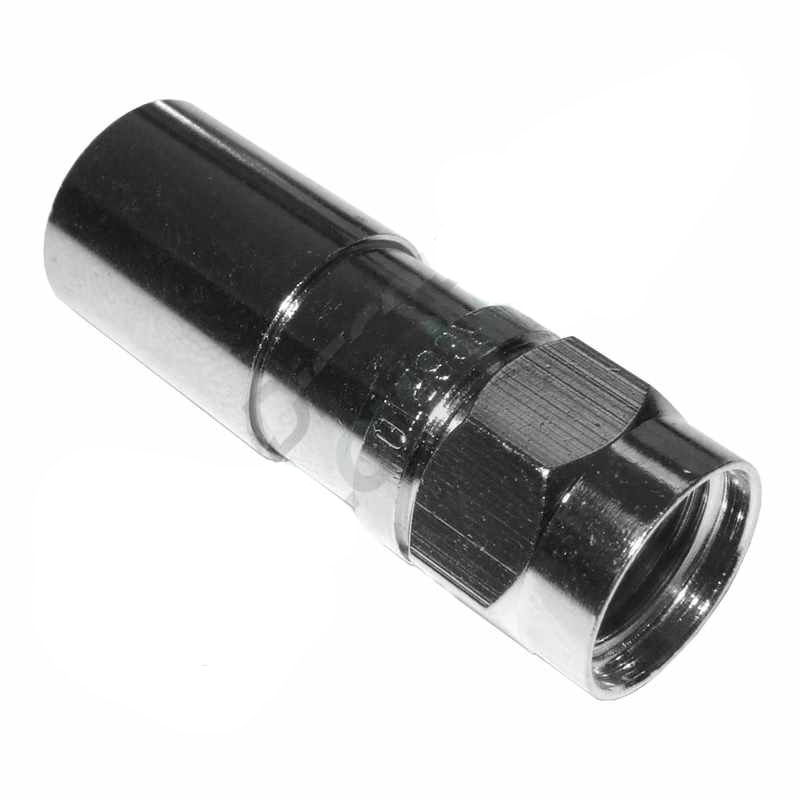

Ideal 92-650 F-Connector for RG6 PVC (Compression Type)

$0.93
Reference#: 71109
Item#: ID-92-650



Description

IDEAL Compression Connectors are all single piece designs that are manufactured to meet the demands and expectations of the satellite and cable TV industry. All series of connectors are effortlessly positioned onto properly stripped coax and are permanently connected when terminated with an IDEAL OmniSeal Compression Tool. All IDEAL compression F-connectors use a standard 1/40, 1/40 strip. Multiple package quantities and connector features ensure that you will have the right connector for your application.

Approved for use by satellite and cable TV companies

Features

Features:

• Fits 60% reg/tri/quad cable

• Nickel-plated, brass-construction for superior corrosion resistance

• 5MHz to 3GHz performance

• Approved for use by satellite and cable TV companies

• Approved for indoor and outdoor use

• Use 30-603, 30-793 or 30-633 compression tools

Specification

Directions:

Step 1: Use Ideal coaxial stripper to step-strip cable to correct dimensions.

Step 2: Fold braiding back against outer jacket. Push connector onto coaxial cable until approximately 1/8" of center conductor is extended from the connector.

Step 3: Use Ideal Compression tool to terminate connector.
