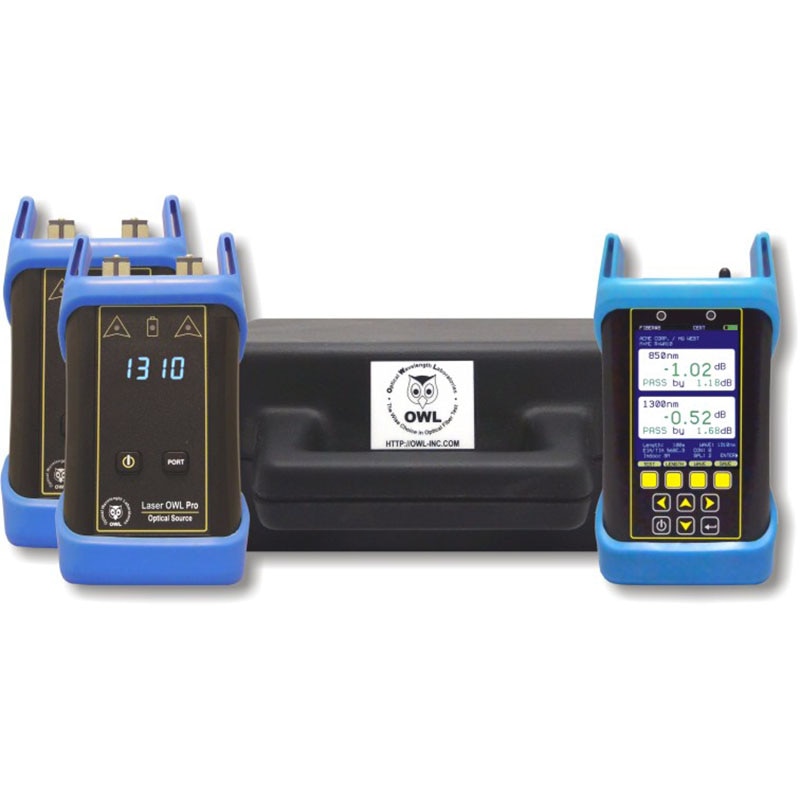

KF7-D83-L35 Fiber OWL 7 Singlemode/Multimode Fiber Optic Certification Test Kit

$2,139.00
Reference#: 77016
Item#: KF7-D83-L35



Description

The KF7-D83-L35 Fiber OWL 7 Singlemode/Multimode Fiber Optic Certification Test Kit contains the tools necessary for certifying fiber optic links against a myriad of popular cabling standards in singlemode and multimode networks, commonly referred to in the industry as Tier 1 certification.

The Fiber OWL 7 (p/n: F7) optical power meter is multimode and singlemode ready, and contains a user-friendly Fiber Link Wizard with color diagrams to guide the setup process, calculate the link budget, and set the optical reference. Up to 10,000 fiber runs may be stored in internal memory, and can be downloaded to a PC for report generation with OWLView software.

The universal detector port on the F7 comes with 2 adapter caps, one for 2.5mm connectors such as SC, ST, and FC, and the other for 1.25mm connectors such as LC. The length testing port is SC.

The Dual OWL Pro and Laser OWL Pro fiber optic light sources are designed for accurate testing and certification of multimode and singlemode networks. The light source outputs are temperature-stabilized for accurate measurements.
These sources come configured with SC connector ports.

Applications: Full-featured Tier 1 fiber link certification, Optical loss (attenuation) measurement, Optical power measurement, Continuity testing, Patch cord verification

Kit Contents:

  • Power Meter: Fiber OWL 7
  • Light Source: Dual OWL Pro and Laser OWL Pro
  • Hard-shell carrying case
  • Protective rubber boots
  • USB download cables and battery chargers
  • USB flash drive containing OWLView software and product documentation
  • NIST certificate of calibration
    * Patch cables, adapters, and other related accessories not included.

    • Features


    • Standards-based link certification for multimode and singlemode fiber links
    • Color LCD indicates PASS / FAILstatus based on color
    • Unlimited job configurations
    • User-friendly Link Wizard with helpful color on-screen diagrams to help guide the setup process
    • Up to 10,000 test readings can be stored in memory
    • Upgradeable to length testing, a critical factor for link budget calculation
    • Prints official certification reports via OWLView certification software
    • Re-chargeable Lithium Polymer battery
    • NIST Traceable
    • USA Made! Factory located in the heartland of the US!

    Specification

    Full Specifications can be found on the 'OWL KF7-D83-L35 Certification Test Kit Data Sheet' under the Downloads tab.
