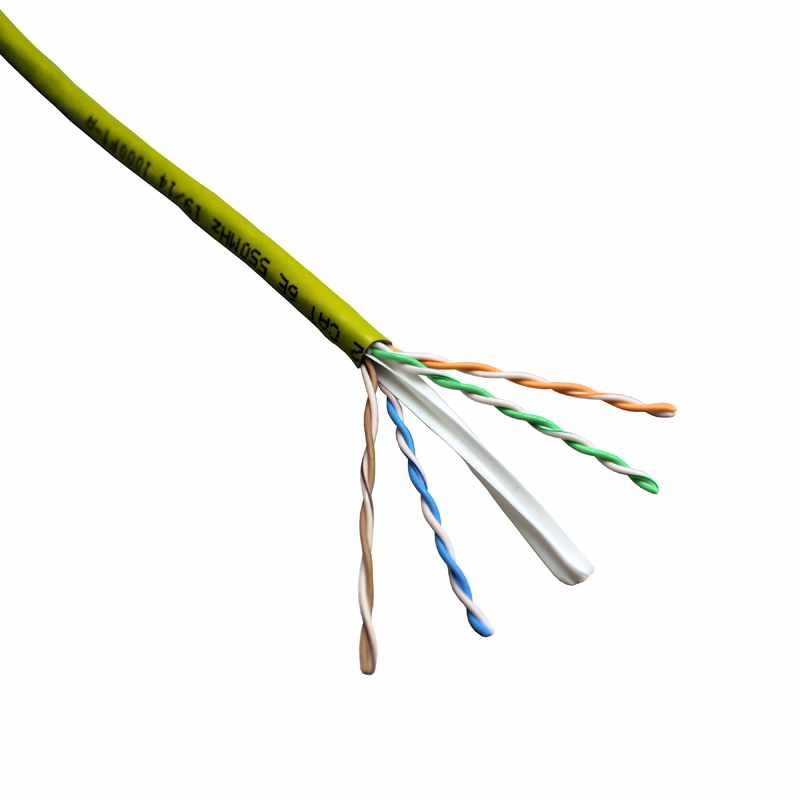

Hyperline Cat6e 550MHz 4pr 23awg Unshielded PVC Ethernet Cable, Yellow (1000 ft)

This 1,000 foot roll of unshielded (UTP) Cat6e cable uses solid conductors and features 550MHz bandwidth capacity. Solid conductors have slightly better electrical properties than stranded conductors, making solid cables well suited for use in permanent, in-wall installations and for longer cable runs. Hyperline Cat6e cable also has a center spline, for reduced alien crosstalk.

Hyperline Cat6e cables are made of 100% bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in Cat5e and Cat6 communications cables.

Conductor diameter:

• 0.54 ± 0.01 mm (24 AWG)

Insulated conductor diameter:

• 0.99 ± 0.2 mm (0.038" ± 0.008")

Outer cable diameter:

• 6.2 ± 0.2 mm (0.24" ± 0.008")

Jacket thickness:

• 0.4 mm (0.015")

Pulling strength:

• 130 N

Minimum bend radius:

• 4 outer cable diameters

Operating temperature:

• -20°C to +75°C (-4°F to +167°F)

Weight per 1000 ft:

• 12.9 kg (28.4 lbs)

Standard package:

• 305 m (1000 ft)
