Corning 6 Strand Singlemode Outdoor Fiber Optic Cable - Black (Per Foot)

$0.62
Reference#: 69039
Item#: COR-006EU4-T4701D20



Description

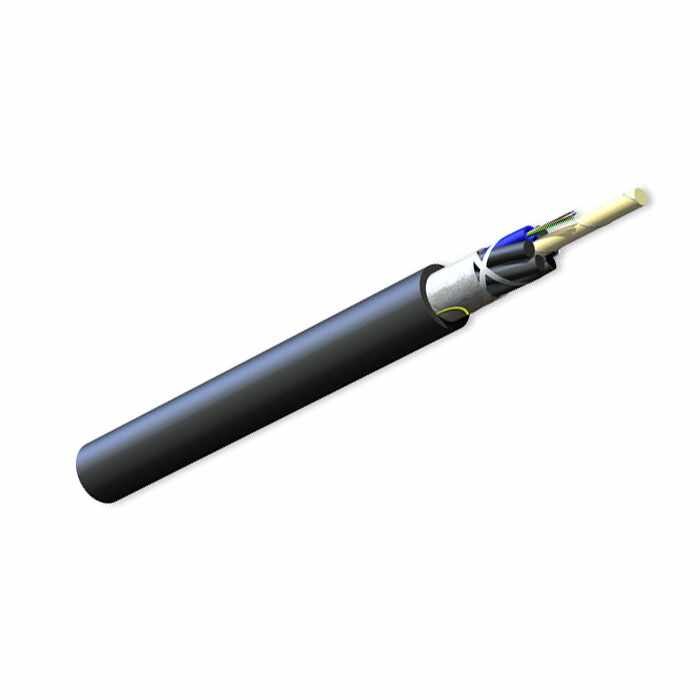

Corning 006EU4-T4701D20 6 strand SM Loose tube

This is Corning Cable Systems Altos 6 strand fiber optic cable part number 006EU4-T4701D20 (replaces part # 006EU4-T4101D20) and is designed for outdoor and limited indoor use for campus backbones in lashed aerial and duct installations.

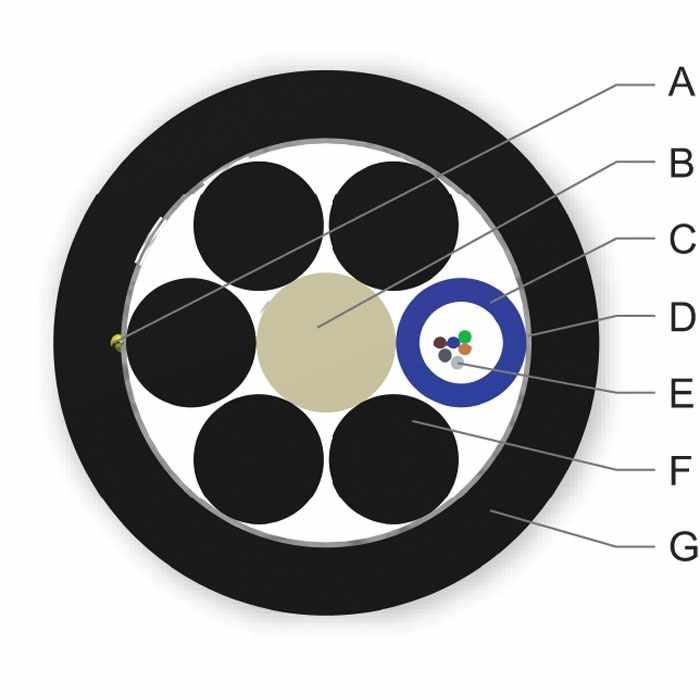

The loose tube gel-free design is fully waterblocked using craft-friendly, water-swellable materials, which means cable access is simple and no clean up is required. The flexible craft-friendly buffer tubes are easy to route in closures and the SZ-stranded,loose tube design isolates fibers from installation and environmental rigors while allowing easy midspan access. The all-dielectric cable construction requires no bonding or grounding and these cables have a medium-density polyethylene jacket that is rugged, durable and easy to strip. A variety of fiber types are available including 62.5, 50, single-mode and hybrid versions, as well as fibers with Gigabit Ethernet and 10 Gigabit Ethernet performance.

These cables are also available with optional extended operating temperature to -50 degrees C (-58 degrees F) in a variety of fiber counts.

How to pull Fiber Optic Cable on our Low Voltage Product Talk blog.

Features

  • Fully waterblocked loose tube gel-free design Simple access and no clean up
  • Medium-density polyethylene jacket All-dielectric cable construction Rugged, durable and easy to strip
  • Requires no grounding or bonding
  • Ready for any application including Gigabit Ethernet and 10 Gigabit Ethernet

Specification

Nominal Weight
  • 49
Nominal Outer Diameter
  • 0.41 in
Minimum Bend Radius
  • Loaded: 15.8 cm (6.2 in)
  • Installed: 10.5 cm (4.1 in)
Maximum Tensile Loads
  • Short-Term: 2700 N (600 lbf)
  • Long-Term: 890 N (200 lbf)

Temperatures

  • Storage: -40° to +70°C (-40° to +158°F)
  • Installation: -30° to +70°C (-22° to +158°F)
  • Operation: -40° to +70°C (-40° to +158°F)

Common Installations

  • Outdoor lashed aerial and duct; indoor when installed according to National Electrical Code® (NEC®) Article 770

Design and Test Criteria

  • ANSI/ICEA S-87-640
