Corning 24 Strand 62.5/125 Multimode OM1 Indoor Armored Riser Fiber Optic Cable - Orange (Per Foot)

Reference#: 69129
Item#: COR-024K81-33130-A1

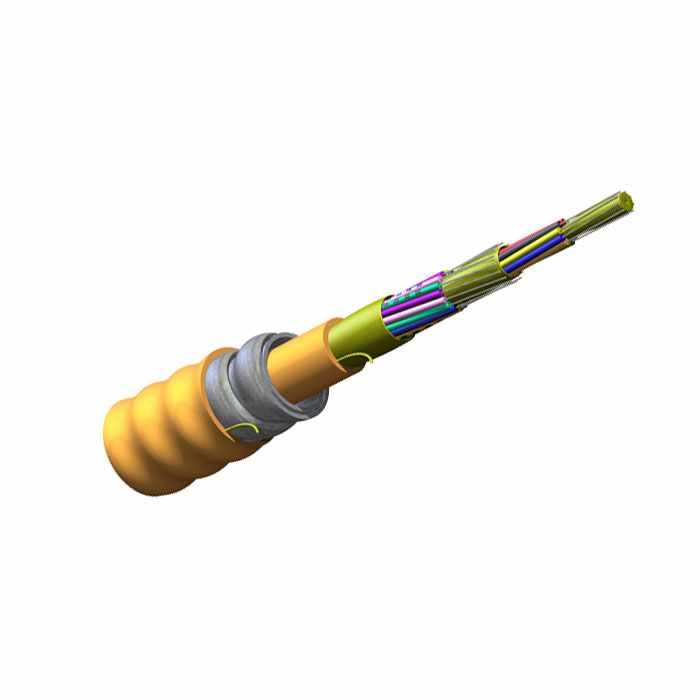

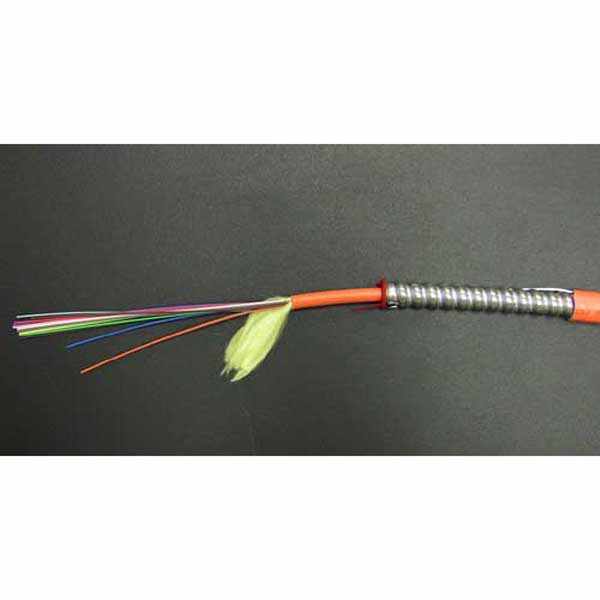

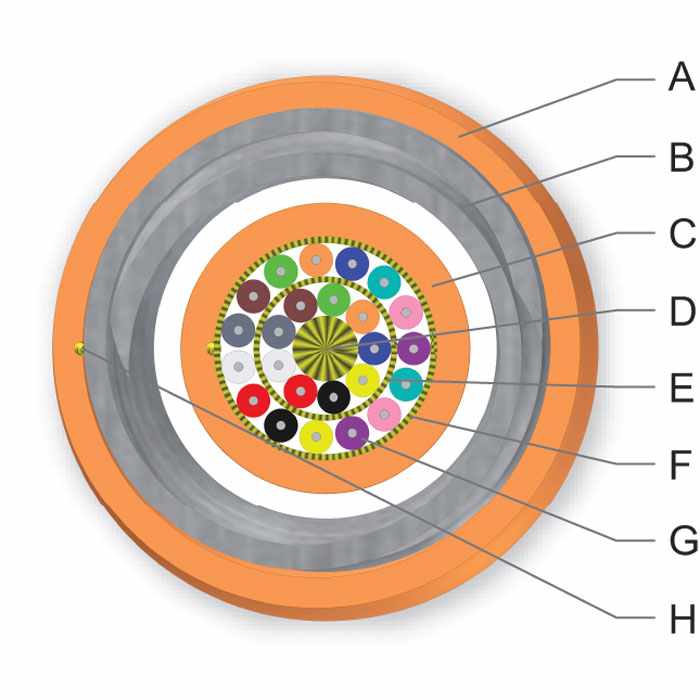

Corning Cable Systems MIC Interlocking Armored Riser Cables are standard OFNR MIC Riser Cables placed inside a spirally-wrapped aluminum interlocking armor for ruggedness and superior crush resistance. Designed for use in riser and general purpose environments for intrabuilding backbone and horizontal installations, these multifiber cables use individually jacketed TBII Buffered Fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. This core is protected by a flexible, spiral-wrapped, aluminum interlocking armor that offers over seven times the crush protection compared to unarmored cables and easy one-step installation. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables. Offered in 50, 62.5, single-mode and hybrid versions.


  • Tight buffered cable design eliminates fan-out kits.
  • Interlocking armor offers seven times the cable protection of standard cable - no conduit needed.
  • Patented TBII dual acrylate slip layer provides faster, easier stripping.
  • This is a Multimode 62.5 fiber - call for other types.


Nominal Weight
  • 123 lbs
Nominal Outer Diameter
  • 0.59 in
Minimum Bend Radius
  • Loaded: 22.5 cm (8.9 in)
  • Installed: 15.0 cm (5.9)
Maximum Tensile Loads
  • Short-Term: 1320 N (300 lbf)
  • Long-Term: 400 N (90 lbf)


  • Storage: -40° to +70°C (-40° to +158°F)
  • Installation: -10° to +60°C (+14° to +140°)
  • Operation: -20° to +70°C (-4° to +158°
