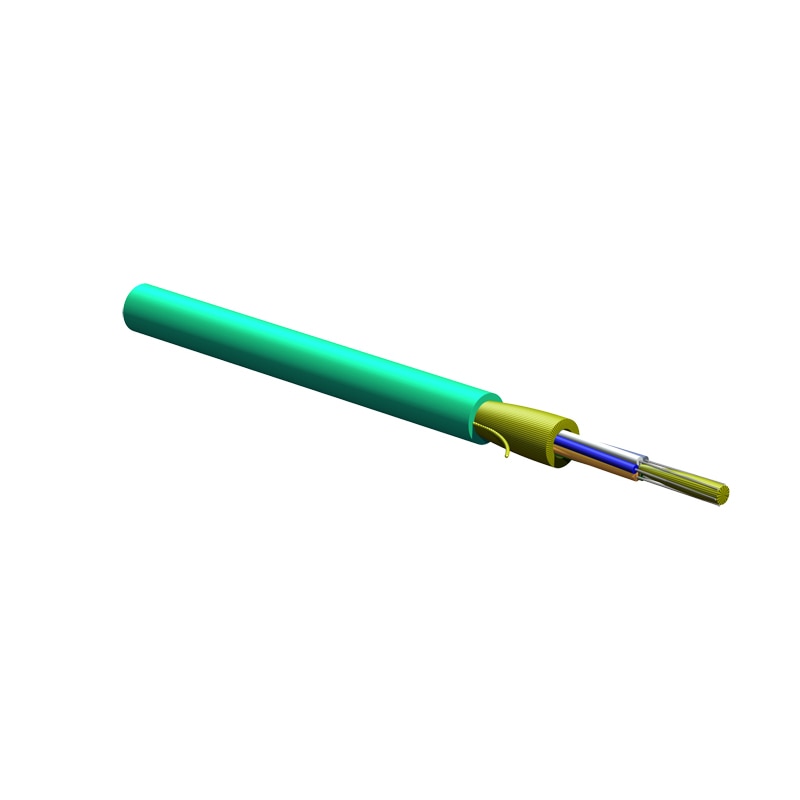

Corning 6 Strand 50/125 Multimode OM3 Indoor Plenum Fiber Optic Cable - Aqua (Per Foot)

$1.12
Reference#: 69061
Item#: COR-006T88-31180-29



Description

Corning Cable Systems MIC® Plenum Cables are designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations. These multifiber cables use 900 μm TBII® Buffered Fibers to allow easy, consistent stripping and to facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flame -retardant outer jacket.
The all -dielectric cable construction requires no grounding or bonding. MIC Plenum cables are ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations. The MIC Plenum Cables meet the application requirements of the National Electrical Code® (NEC®) Article 770 and are OFNP and FT -6 listed.
This cable is available in 12 different jacket colors (some only by special order); - blue, orange, green, brown, slate, white, red, black, yellow, purple, rose and aqua. The colored jacket allows for easy visual identification of the cables. The standard jacket color will be determined by the dominant fiber type in the cable and will use the standard part numbers shown here.

Features

900 µm TBII® Buffered Fibers
  • Easy, consistent stripping
All-dielectric construction
  • Requires no grounding or bonding
Flame-retardant jacket
  • Rugged and durable

Approval and Listings

  • National Electrical Code®(NEC®) OFNP, CSA FT-6, ICEA S-83-596

Flame Resistance

  • NFPA 262 (for plenum, riser and general building appli-cations)

Specification

Environment

  • Indoor

Application

  • General Purpose Horizontal, Vertical Riser, Plenum

Cable Type

  • Tight-Buffered

Product Type

  • Distribution

Flame Rating

  • Plenum (OFNP)

Fiber Category

  • 50 µm MM (OM3)

Storage

  • -40 °C to 70 °C (-40 °F to 158 °F)

Installation

  • 0 °C to 60 °C (32 °F to 140 °F)

Operation

  • 0 °C to 70 °C (32 °F to 158 °F)
