Corning 6 Strand 50/125 Multimode OM2 Indoor/Outdoor Riser Fiber Optic Cable - Black (Per Foot)

$1.38
Reference#: 69068
Item#: COR-006TSF-T4131D20



Description

Corning Cable Systems FREEDM LST Cables are flame-retardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct and riser applications. With a riser rating, there is no need for a transition splice when entering the building. Available in a compact design in fiber counts from 2 to 24 fibers, these cables are protected against water penetration by innovative water-blocking materials that swell to absorb water. Water-blocking without the use of messy gels provides more efficient and craft-friendly cable preparation, allows easier cable access and simplifies the use of buffer tube fan-out kits.

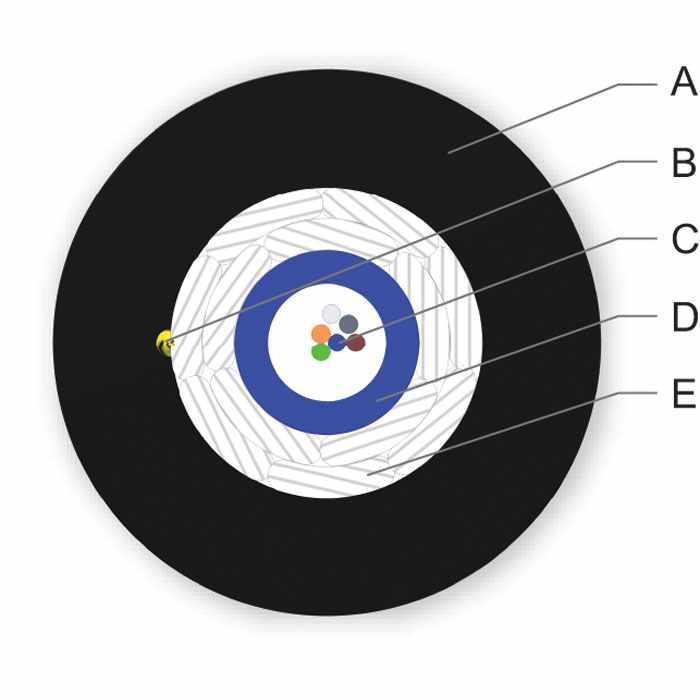

Buffer tubes and fibers in each tube are color-coded for quick, easy identification. The SZ-stranded, loose tube design isolates fibers from installation and environmental rigors and allows for easy midspan access.

Features

  • Riser Rating: No Transition splices when entering buildings
  • Gel-Free waterblocking technology: Craft-friendly cable preparation
  • Color-coded fibers: Quick and Easy Identification
  • All-Dielectric Construction: Requires no grounding or bonding
  • UV-Resistant, flame-retardant jacket: Rugged, durable and easy to strip


    Specification

    Nominal Weight (lb/1000ft)
    • 38 lbs
    Nominal Outer Diameter
    • 0.29 in
    Minimum Bend Radius
    • Installation:  111 mm (4.4 in)
    • Operation:  37 mm (1.5 in)

    Maximum Tensile Loads

    • Short-Term: 1350 N (300 lbf)
    • Long-Term: 400 N (90 lbf)

    Temperatures

    • Storage:  -40­°C­ to­ 70­°C­­ (-40­°F­ to­ 158­°F)
    • Installation:  -10 °C to 60 °C  (14 °F to 140 °F)
    • Operation:  -40 °C to 70 °C  (-40 °F to 158 °F)
    Chemical Characteristics
    • RoHS:  Free of hazardous substances according to RoHS 2002/95/EG
