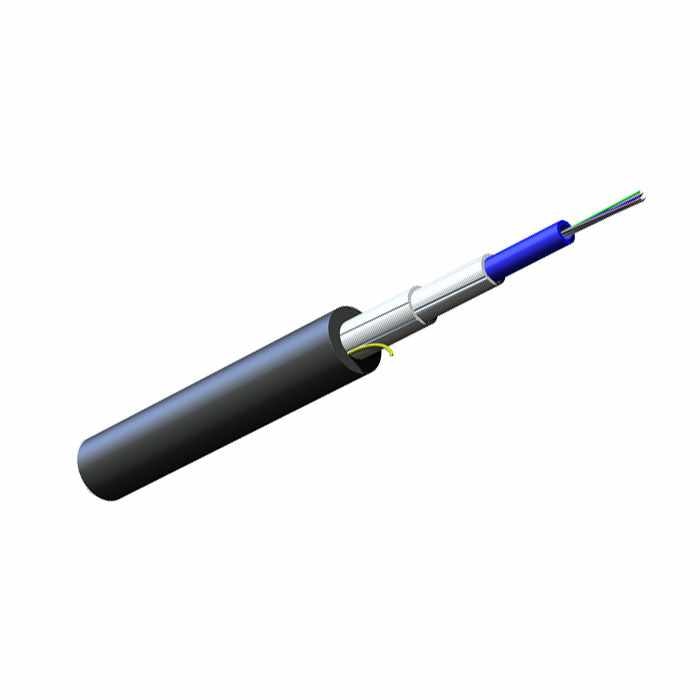

Corning 6 Strand 50/125 Multimode OM3 Indoor/Outdoor Riser Fiber Optic Cable - Black (Per Foot)

Corning Cable Systems FREEDM LST Cables are flame-retardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct and riser applications. With a riser rating, there is no need for a transition splice when entering the building. Available in a compact design in fiber counts from 2 to 24 fibers, these cables are protected against water penetration by innovative water-blocking materials that swell to absorb water. Water-blocking without the use of messy gels provides more efficient and craft-friendly cable preparation, allows easier cable access and simplifies the use of buffer tube fan-out kits.

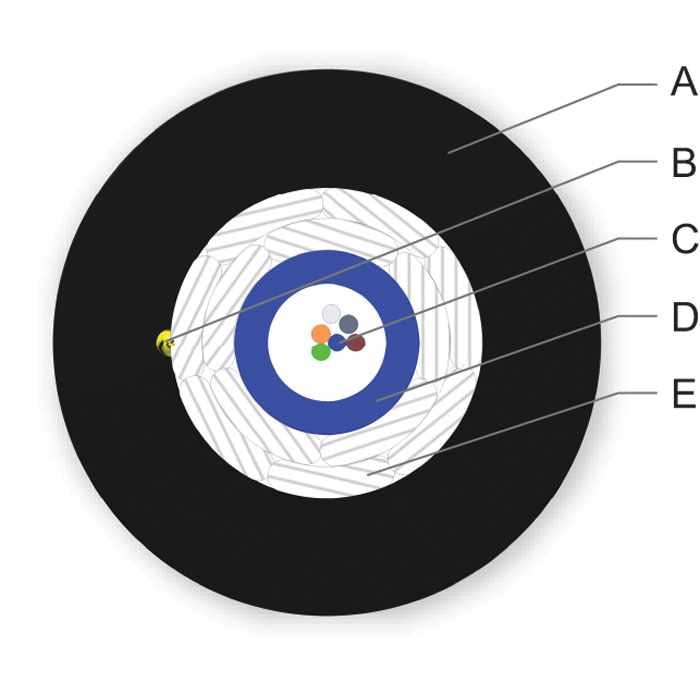

Buffer tubes and fibers in each tube are color-coded for quick, easy identification. The SZ-stranded, loose tube design isolates fibers from installation and environmental rigors and allows for easy midspan access.

• Riser rating eliminates need for transition splices when entering buildings

• Gel-free waterblocking technology allows craft-friendly cable preparation

• Color-coded tubes and fibers provide quick and easy identification

Nominal Weight (lb/1000ft)

• 38 lbs


Nominal Outer Diameter

• 0.29 in

Minimum Bend Radius

• Installation: 111 mm (4.4 in)

• Operation:  37 mm (1.5 in)


Maximum Tensile Loads

• Short-Term: 1350 N (300 lbf)

• Long-Term: 400 N (90 lbs)


Temperatures

• Storage: -40­°C­to­70­°C­­ (-40­°F­to­158­°F)

• Installation: -10­°C ­to ­60­°C ­­(14­°F­to­140­°F)
• Operation: -40­°C­to­70­°C ­­(-40­°F­to­158­°F)

Application

Aerial, Direct Buried, Duct, General Purpose Horizontal (Vertical Riser)
