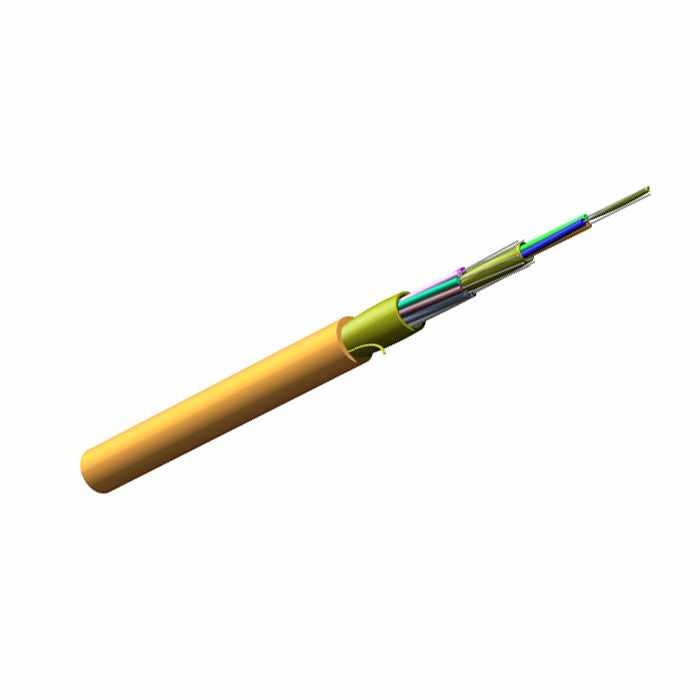

Corning 12 Strand 62.5/125 Multimode OM1 Indoor Riser Fiber Optic Cable - Orange (Per Foot)

$2.05
Reference#: 69088
Item#: COR-012K81-33130-24



Description

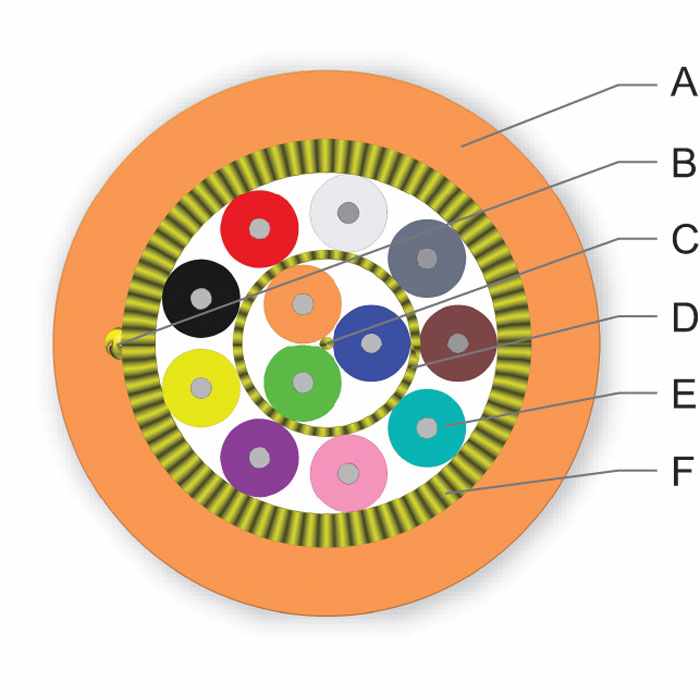

Corning Cable Systems MIC Riser Cables are designed for use in riser and general purpose environments for intrabuilding backbone and horizontal installations. These multi-fiber cables use 900 μm TBII Buffered Fibers to enable easy, consistent stripping and facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flame-retardant outer jacket.

The all-dielectric cable construction requires no grounding or bonding. MIC Plenum cables are ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations. The MIC Plenum Cables meet the application requirements of the National Electrical Code (NEC) Article 770 and are OFNP and FT-6 listed.

Features

  • 900 µm TBII® Buffered Fibers
  • Easy, consistent stripping
  • All-dielectric construction
  • Requires no grounding or bonding
  • Flame-retardant jacket
  • Rugged and durable

Specification

Nominal Weight (lb/1000ft)
  • 22 lbs
Nominal Outer Diameter
  • 0.25 in
Minimum Bend Radius
  • Installation: 95 mm (3.7 in)
  • Operation:  32 mm (1.3 in)
Maximum Tensile Loads
  • Short-Term: 660 N (150 lbf)
  • Long-Term: 200 N (45 lbs)

Temperatures

  • Storage: -40­°C­to­70­°C­­(-40­°F­to­158­°F)
  • Installation: -10­°C­to­60­°C­­(14­°F­to­140­°F)
  • Operation: -20­°C­to­70­°C­­(-4­°F­to­158­°F)
