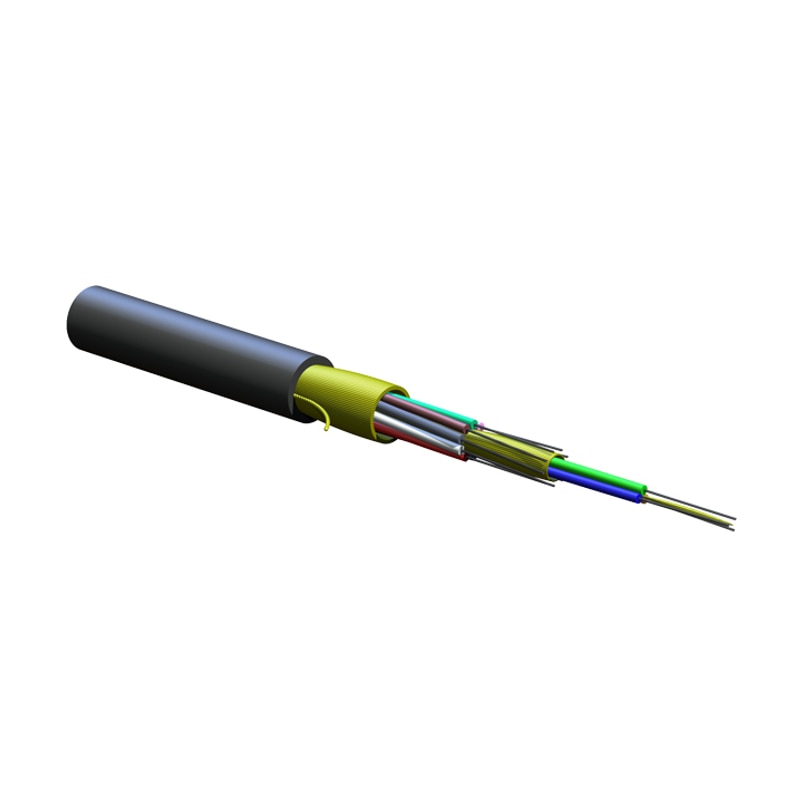

Corning 12 Strand 62.5/125 Multimode OM1 Indoor/Outdoor Riser Fiber Optic Cable - Black (Per Foot)

$2.15
Reference#: 69094
Item#: COR-012K8F-31130-29



Description

Corning Cable Systems FREEDM® One Cables are flame-retardant, UV-resistant, indoor/outdoor cables designed for aerial, duct and direct-buried applications with no need for a transition splice when entering the building. The tight-buffered construction facilitates easier termination for low-fiber-count applications in the local area network (LAN) and eliminates need for fan-out kits. The design features TIA-598 color-coded 900 μm TBII® Buffered Fibers for easy identification, consistent stripping and direct termination. The small diameter and bend radius of the cable allow for easy installation in space-constrained areas while the innovative waterblocking technology is ideal for OSP applications. The all-dielectric cable construction requires no grounding or bonding and the UV-resistant, flame-retardant jacket is rugged, durable and easy to strip.

This cable is available in 12 different jacket colors - blue, orange, green, brown, slate, white, red, black, yellow, purple, rose and aqua. The colored jacket allows for easy visual identification of the cables while still providing all of the required environmental protection of an indoor/outdoor cable jacket. Black is the standard jacket color using the standard part numbers shown here.

Features

Waterblocking technology
  • OSP (outdoor) applications
Small diameter and bend-radius
  • Easy installation in space-constrained areas
Color-coded fibers
  • Quick and easy identification
All-dielectric construction
  • Requires no grounding or bonding
UV-resistant, flame-retardant jacket
  • Rugged, durable and easy to strip
Approval and Listings
  • National Electrical Code® (NEC®) OFNR, FT-4

Design and Test

  • Criteria ICEA S-104-696

Specification

Environment

  • Indoor/Outdoor Cables
Application
  • Aerial, Direct Buried, Duct, General Purpose Horizontal, (Vertical Riser)

Cable Type

  • Tight-Buffered

Product Type

  • Dielectric

Flame Rating

  • Riser (OFNR)

Fiber Category

  • 62.5 µm MM (OM1)
