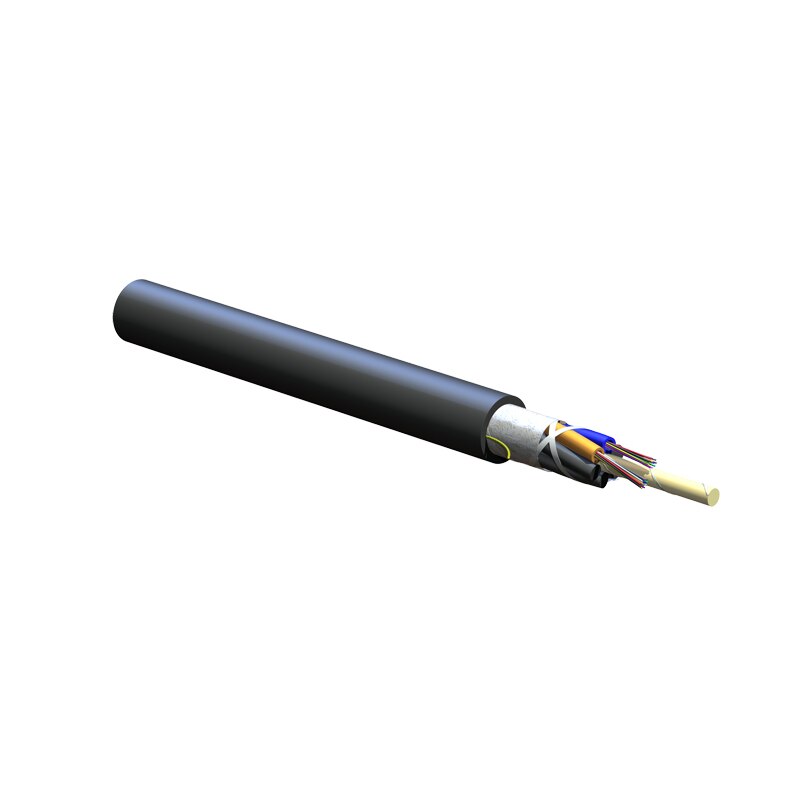

Corning 12 Strand 50/125 Multimode OM4 Outdoor Fiber Optic Cable - Black (Per Foot)

$4.40
Reference#: 69114
Item#: COR-012TU4-T4790D20



Description

Corning Cable Systems ALTOS®
All -Dielectric Gel -Free
Cables are designed for outdoor and limited indoor use
for campus backbones in lashed aerial and duct installa-tions. The loose tube gel -free design is fully waterblocked
using craft -friendly, water -swellable materials, which
means cable access is simple and no clean up is re-quired. The flexible craft -friendly buffer tubes are easy to
route in closures and the SZ -stranded, loose tube design
isolates fibers from installation and environmental rigors
while allowing easy midspan access. The all -dielectric
cable construction requires no bonding or grounding and
these cables have a medium -density polyethylene jacket
that is rugged, durable and easy to strip.

Features

Gel-free waterblocking technology
  • Craft-friendly cable preparation
Medium-density polyethylene jacket
  • Rugged, durable and easy to strip while providing supe-rior protection against UV radiation, fungus, abrasion and other environmental factors
All-dielectric construction
  • Requires no grounding or bonding

Common Installations

  • Outdoor lashed aerial and duct; indoor when installed according to National Electrical Code®(NEC®) Article 770

Design and Test

  • Criteria ANSI/ICEA S-87-640

Specification

Environment

  • Outdoor

Application

  • Aerial, Duct

Cable Type

  • Loose Tube

Product Type

  • Dielectric

Fiber Category

  • 50 µm MM (OM4)

Storage

  • -40 °C to 70 °C (-40 °F to 158 °F)

Installation

  • -30 °C to 70 °C (-22 °F to 158 °F)

Operation

  • -40 °C to 70 °C (-40 °F to 158 °F
