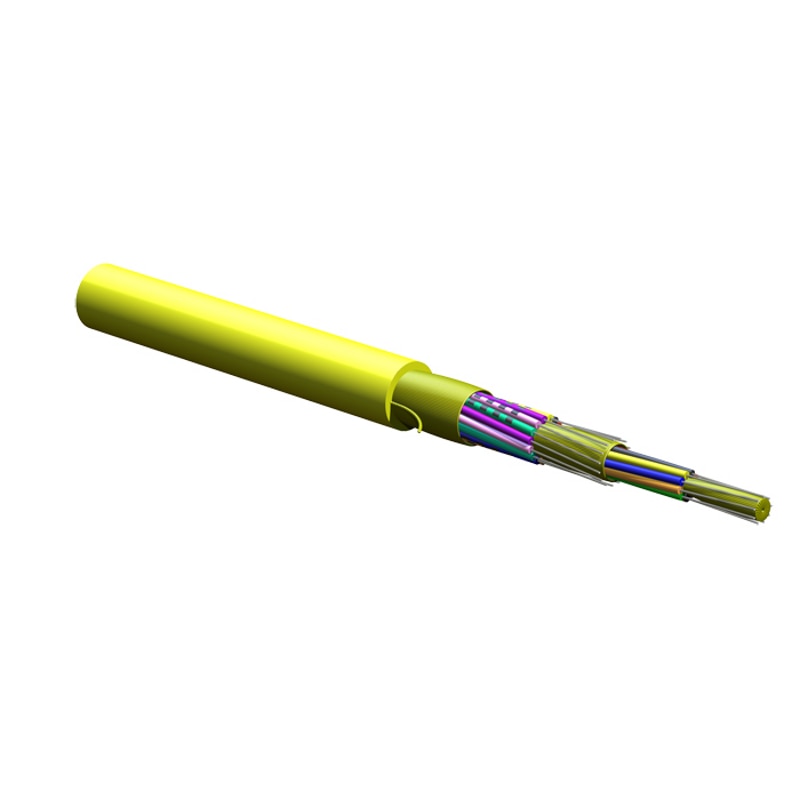

Corning 24 Strand Singlemode Indoor Riser Fiber Optic Cable - Yellow (Per Foot)

$2.32
Reference#: 69116
Item#: COR-024E81-33131-24



Description

Corning Cable Systems MIC® Riser Cables are designed for use in riser and general purpose environments for intrabuilding backbone and horizontal installations. These multifiber cables use 900 μm TBII® Buffered Fibers to en-able easy, consistent stripping and facilitate termination. The fibers are surrounded by dielectric strength members and protected by a flame -retardant outer jacket. The all -dielectric cable construction requires no ground-ing or bonding. MIC Plenum cables are ideal for routing inside buildings, within plenum areas and riser shafts, to the telecommunications rooms and workstations. The MIC Plenum Cables meet the application requirements of the National Electrical Code ®(NEC®) Article 770 and are OFNP and FT -6 listed.

Features

900 µm TBII® Buffered Fibers
  • Easy, consistent stripping
All-dielectric construction
  • Requires no grounding or bonding
Flame-retardant jacket
  • Rugged and durable

Approval and Listings

  • National Electrical Code®(NEC®) OFNR, CSA FT-4, ICEA S-83-596

Flame Resistance

  • UL-1666 (for riser and gen-eral building applications)

Specification

Environment

  • Indoor

Application

  • General Purpose Horizontal, Vertical Riser

Cable Type

  • Tight-Buffered

Product Type

  • Distribution

Flame Rating

  • Riser (OFNR)

Fiber Category

  • Single-mode (OS2)

Storage

  • -40 °C to 70 °C (-40 °F to 158 °F)

Installation

  • -10 °C to 60 °C (14 °F to 140 °F)

Operation

  • -20 °C to 70 °C (-4 °F to 158 °F)
