Corning 6 Strand 62.5/125 Multimode OM1 LT Indoor/Outdoor Riser Fiber Optic Cable - Black (Per Foot)

Reference#: 69050
Item#: COR-006KSF-T4130D20

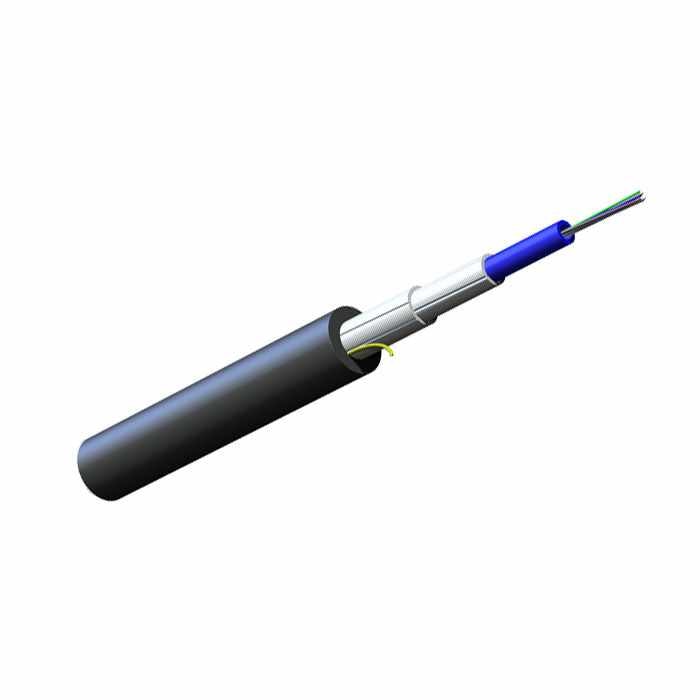

6 strand multimode 62.5/125 fiber optic cable, riser rated, loose tube design.

Corning Cable Systems FREEDM LST Cables are flame-retardant, indoor/outdoor, riser-rated cables designed for interbuilding and intrabuilding backbones in aerial, duct and riser applications. With a riser rating, there is no need for a transition splice when entering the building. Available in a compact design in fiber counts from 2 to 24 fibers, these cables are protected against water penetration by innovative water-blocking materials that swell to absorb water.

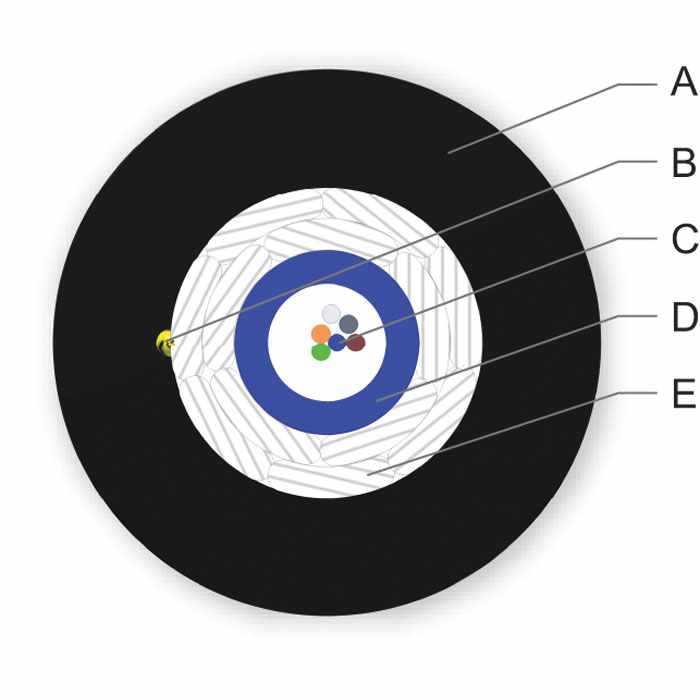

Water-blocking without the use of messy gels provides more efficient and craft-friendly cable preparation, allows easier cable access and simplifies the use of buffer tube fan-out kits. Buffer tubes and fibers in each tube are color-coded for quick, easy identification. The SZ-stranded, loose tube design isolates fibers from installation and environmental rigors and allows for easy midspan access.


  • Riser rating eliminates need for transition splices when entering buildings
  • Gel-free waterblocking technology allows craft-friendly cable preparation
  • Color-coded tubes and fibers provide quick and easy identification


Nominal Weight (lb/1000 ft)
  • 38
Nominal Outer Diameter
  • 0.29 in
Minimum Bend Radius
  • Loaded:  11.1 cm (4.4 in)
  • Installed:  3.7 cm (1.5 in)
Maximum Tensile Loads
  • Short Term: 1350 N (300 lbf)
  • Long Term: 400 N (90lbf)
  • Storage -40°C to 70°C (-40°F to 158°F)
  • Installation: -10°C to 70°C (+14°F to 140°F)
  • Operation: -40°C to 70°C (-40°F to 158°F)
Common Installations
  • Outdoor aerial and duct; indoor vertical riser and general purpose horizontal according to NEC Article 770l
Design and Test Criteria
  • ANSI/ICEAS S-104-696
