Corning 24 Strand 62.5/125 Multimode OM1 Indoor/Outdoor Plenum Fiber Optic Cable - Black (Per Foot)

$6.36
Reference#: 69135
Item#: COR-024K8P-31130-29



Description

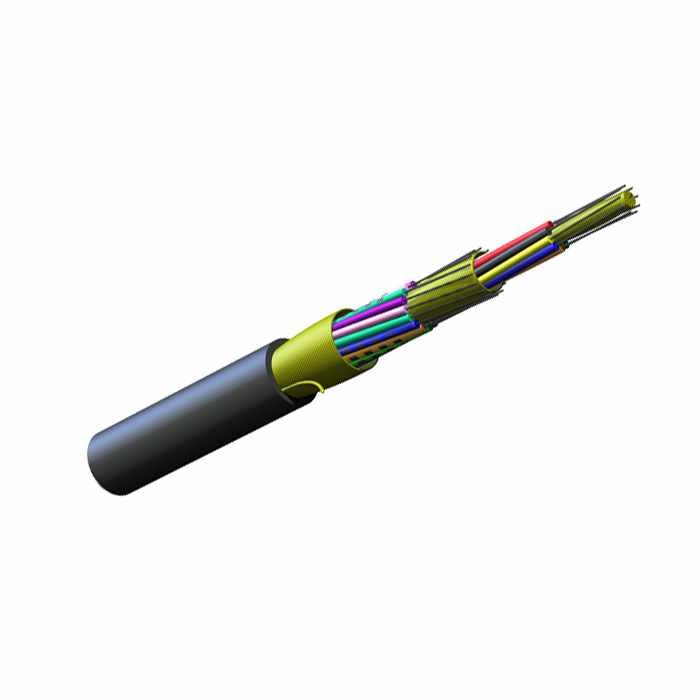

Corning 24 Strand Plenum Indoor/Outdoor Tight Buffer Fiber Optic Cable Corning Cable Systems FREEDOM One Riser Cables are flame-retardant, UV-resistant, indoor/outdoor cables designed for aerial, duct and direct-buried applications with no need for a transition splice when entering the building. Available in fiber counts of six, 12, 18 and 24 fibers, the tight-buffered construction facilitates easier termination for low-fiber-count applications in the local area network (LAN) and eliminates need for fan-out kits.

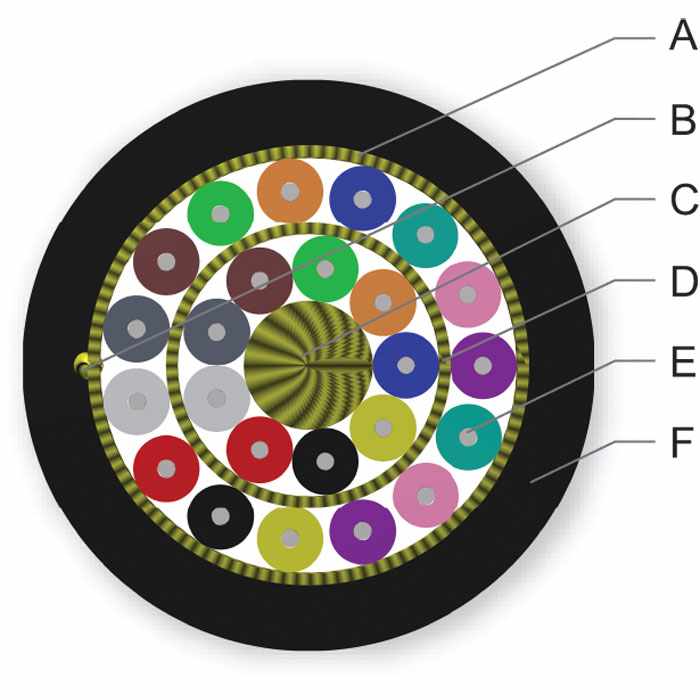

The design features TIA-598 color-coded 900 µm TBII Buffered Fibers for easy identification, consistent stripping and direct termination. Available in 50 µm, 62.5 µm, single-mode and hybrid versions, the cable design meets ICEA S-104-696 test criteria and is also OFNR and FT-4 listed for riser and general purpose use. The small diameter and bend radius of the cable allow for easy installation in space-constrained areas while the innovative waterblocking technology is ideal for OSP applications.

Features

  • Plenum Rated for Air Handling Spaces
  • Water-blocking technology for outside plant applications
  • Small diameter and bend radius for easy installation in space constrained areas
  • Color coded for easy identification and consistent stripping
  • UV resistant, flame-retardant jacket – rugged, durable and easy to strip
  • This cable is Plenum rated and sold per foot

Specification

Nominal Weight (lb/1000 ft)
  • 44
Nominal Outer Diameter
  • 0.31 in
Minimum Bend Radius
  • Loaded:  40 mm (1.5 in)
  • Installed: 120 mm (4.7 in)
Maximum Tensile Loads
  • Short-Term: 1350 N (300 lbf)
  • Long-Term: 400 N (90 lbf)
Temperatures
  • Storage -40°C to +70°C (-40°C to 158°F)
  • Installation: 0°C to +60°C (-32°C to 140°F)
  • Operation: -40°C to +70°C (-40°C to 158°F)
