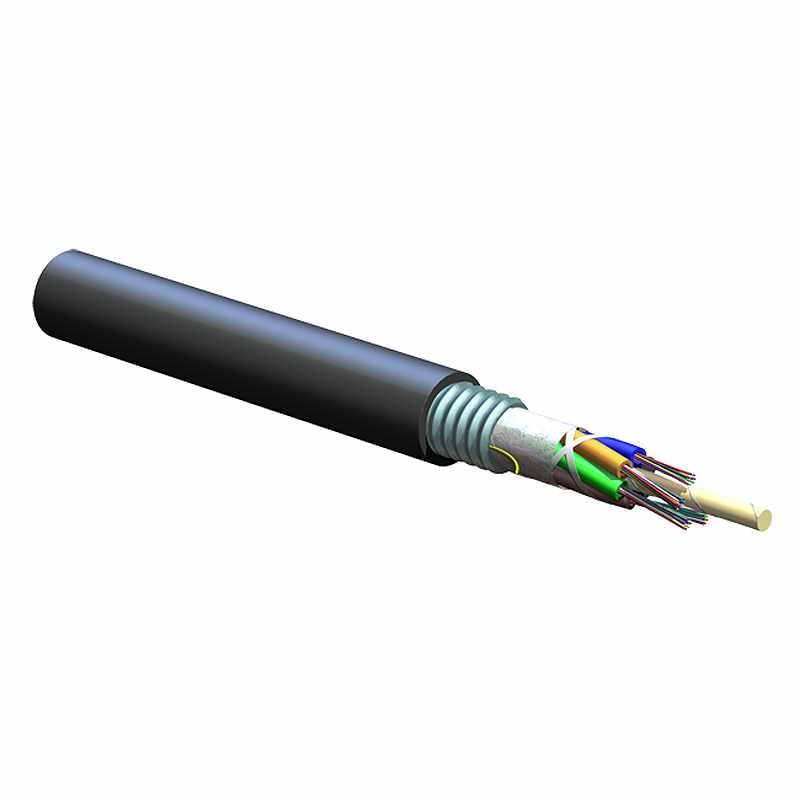

Corning 48 Strand Singlemode Outdoor Armored Direct Burial Fiber Optic Cable - Black (Per Foot)

Reference#: 69153
Item#: COR-048ZUC-T4F22D20


Corning ALTOS Lite gel-free, single-jacket, single-armored cables with FastAccess technology are designed for direct-buried installations. The innovative FastAccess technology feature combined with the gel-free loose tube design simplifies removal of the cable jacket and accessing the buffer tubes. The gel-free design means the cables are fully water-blocked using craft-friendly water-swellable materials which makes cable access simple and require no clean up.The loose tube design uses Corning's SMF-28 Ultra fiber to provide reliable transmission parameters for a variety of voice, data, video and imaging applications. The flexible buffer tubes are easy to route in closures, and the SZ-stranded, loose tube design isolates fibers from installation and environmental rigors while allowing easy midspan access.The single-armored construction provides additional crush and rodent protection.These cables have a medium-density polyethylene jacket that is rugged, durable and easy to strip.

Corning 048ZUC-T4F22D20 replaces the discontinued item # 048EUC-T4101D20


ALTOS Lite FastAccess Technology

Corning's ALTOS Lite FastAccess Technology refers to the combination of a Corning FastAccess Technology jacket with an innovative technology used to bind cable construction through the manufacturing process, eliminating the use of binder yarns and water-blocking tapes and up to a 60 percent improvement in cable access time. These technologies also reduce the overall risk of inadvertent fiber damage by reducing the need for sharp cable access tools.

  • Stranded optical core
    Elimination of overlapping yarn binders around stranded tubes to reduce end access time

  • Fully waterblocked loose tube all-dielectric gel-free design
    Simple access and no clean up

  • Single-armored construction
    Provides additional crush and rodent protection

  • Polyethylene jacket
    Rugged, durable and easy to strip (while providing superior protection against UV radiation, fungus, abrasion and other environmental factors)

  • Available with Corning's SMF-28 Ultra fiber
    ITU-T G.652 D and ITU-T G.657 A1 compliant fiber ready for any application
  • Specification


    • Outdoor
    • Aerial, Direct Buried, Duct
    Cable Type
    • Loose Tube
    Product Type
    • Armored
    Fiber Category
    • Single-mode (OS2)

    * For full product specifications, download the Data Sheet found in the 'Downloads' tab
