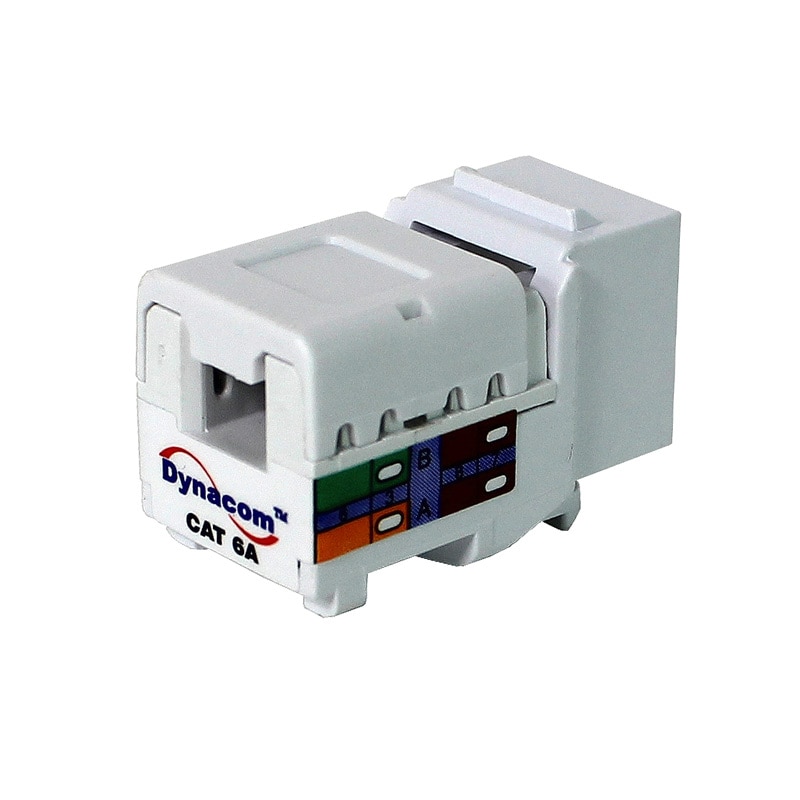

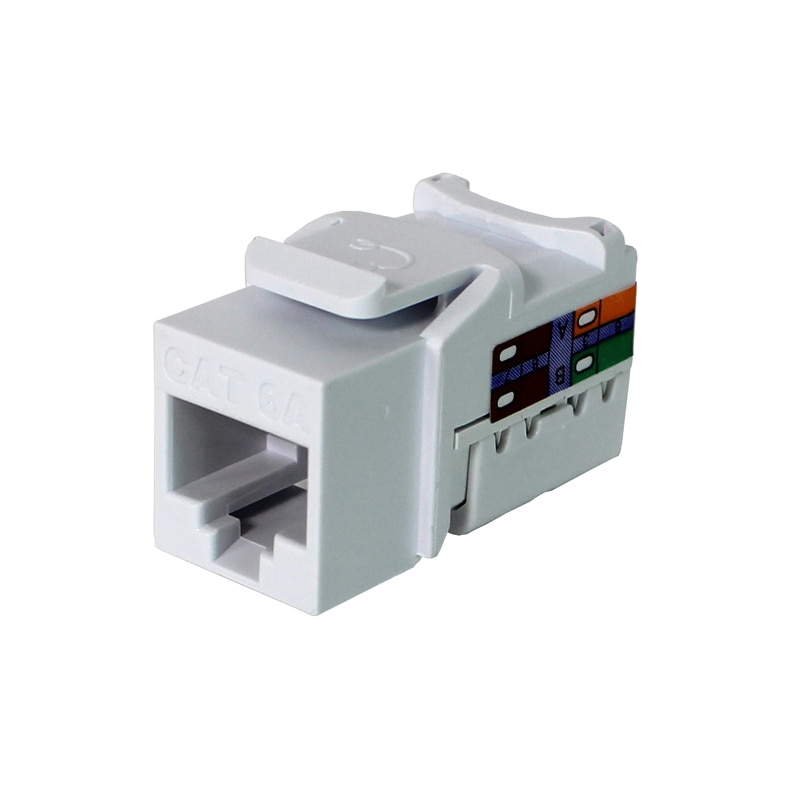

Dynacom Category 6A Keystone Kwik Jack (25 Pack) - White

$125.95
Reference#: 77412
Item#: DY-10606AK25-WHT



Description

If you're paying people by the hour to do installations, YOU NEED THIS JACK.

The Kwik-Jack, when used with the Kwik-Tool, will help you lower your labor costs better than any other jack on the market.

The Kwik-Jack is also compatible with standard 110 tools when a Kwik-Tool is not available.

Contractor Testimonial:

Check out the Discount Low Voltage blog for a contractor video testimonial on the Kwik Jack System.

Learning Center:

Click the Video tab to watch the Kwik Jack video, or visit the Discount Low Voltage Blog for step by step instructions on Terminating Cat5e/Cat6 Keystone Kwik Jacks.

Features

  • 25 Pack
  • High-Density Design
  • - SureLock Retention Technology' Eases Wire Dressing
  • - KwikTool Compatible for Easy Termination
  • - Component Compliant Performance
  • - Color Coded for T568A or 568B

Specification

Environmental Conditions

  • Temperature Range
  • Storage -40 to +70 C
  • Operation -10 to +60 C
  • Relative Humidity (Operational): Maximum Noncondensing 93%

Mechanical

  • Insertion/Extraction Life: 750 Cycles Minimum
  • IDC Wire Gauge: 22~24 AWG

Physical

  • Housing: High-Impact, Flame-Retardant Plastic, UL 94V-0
  • Spring Wire: Phosphor bronze alloy plated with 50 micro-inch of gold over 70~100 micro-inch of nickel
  • IDC: Phosphor bronze alloy with 100 micro-inch 100% Sn alloy
