Southwire P40073 300V Plenum Rated 18 Gauge 4 Conductor Shielded LS-PVC Cable (1,000 ft)

$319.00
Reference#: 68006
Item#: 1880AB4MCMP



Description

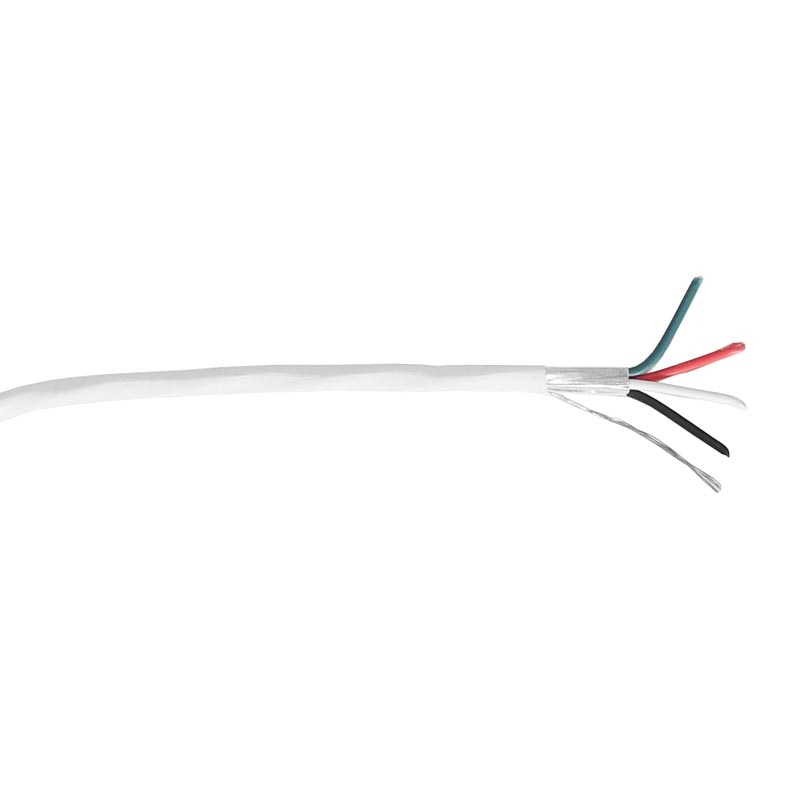

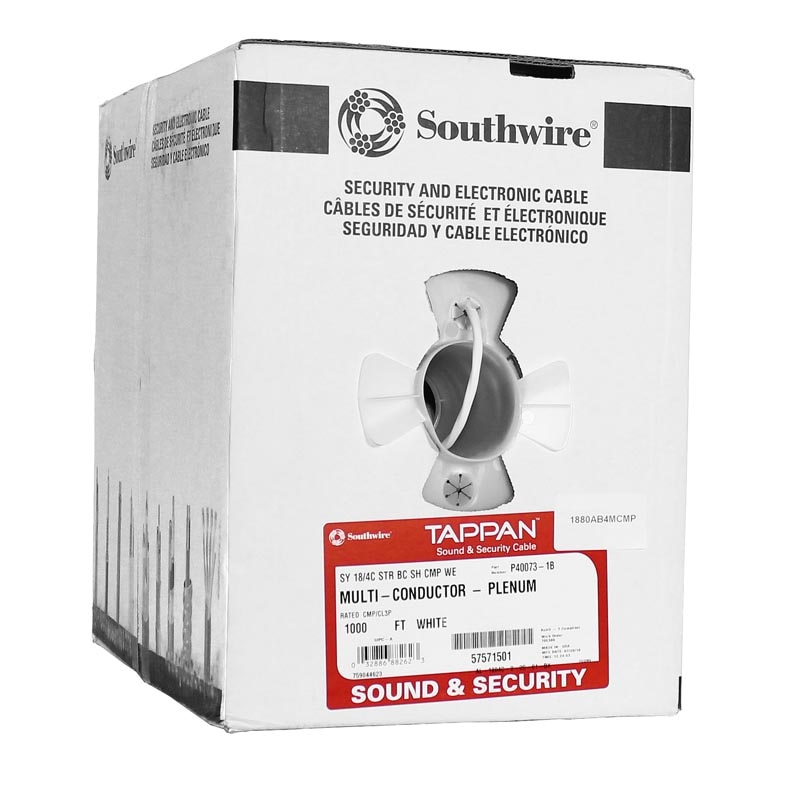

The Southwire P40073 plenum 18 gauge multiconductor cable is ideal for; security, sound and audio, speaker cable, public address, intercom, sound reinforcement, alarm and access control circuits and power-limited controls. This 4 conductor cable is constructed with stranded bare copper for a flexible, yet sturdy design to reduce breakage. Aluminum foil shield, polyester reinforced tape and stranded tinned copper drain wire make this cable ideal for reducing electromagnetic interference (EMI) and radio frequency interference (RFI) for improved signal integrity. CMP/CL3P/FPLP FT6 rated, 300V and made in the USA. DLV sells this Southwire low smoke polyvinyl chloride (LS-PVC) sound and security cable in 1,000 ft lengths.

Features

  • Sequential footage markings for easy identification during installation
  • Made in the USA
  • UL Listed

Specification

Construction:
  • Gauge: 18
  • Conductors: 4
  • Riser/Plenum: Plenum
  • Shielded: Yes (Aluminum foil, overall shield)
  • Jacket: White LS-PVC
Ratings:
  • UL 1424 FPLP, NEC article 760
  • UL 13 CL3P, NEC article 725
  • UL 444 CMP
  • CSA C22.2 No. 214 CMP
  • Flame Test NFPA 262 (UL 910) / CSA FT6
  • Directive (EU) 2015/863 – RoHS 3
