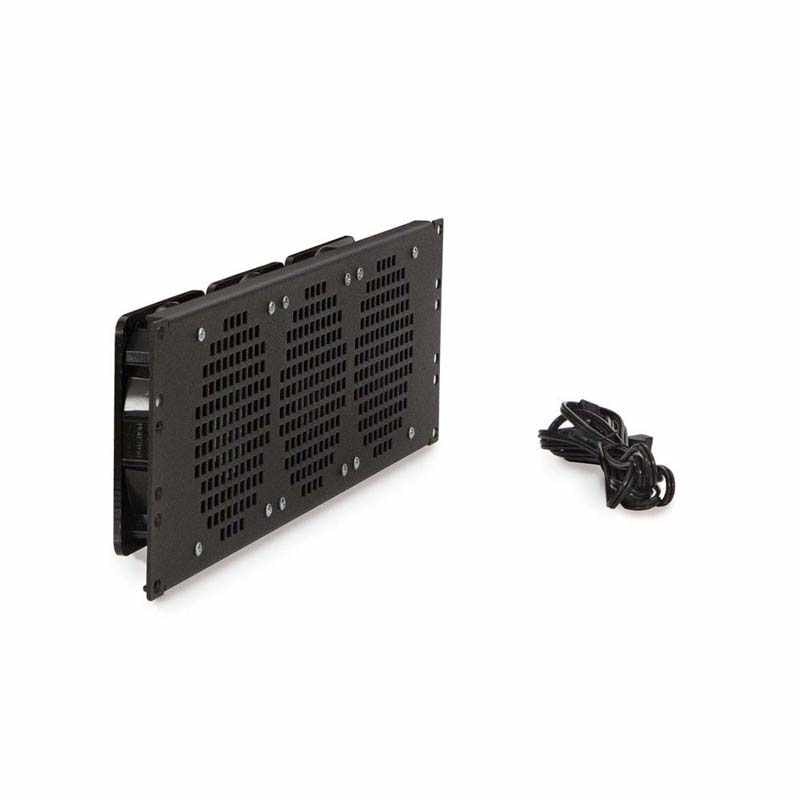

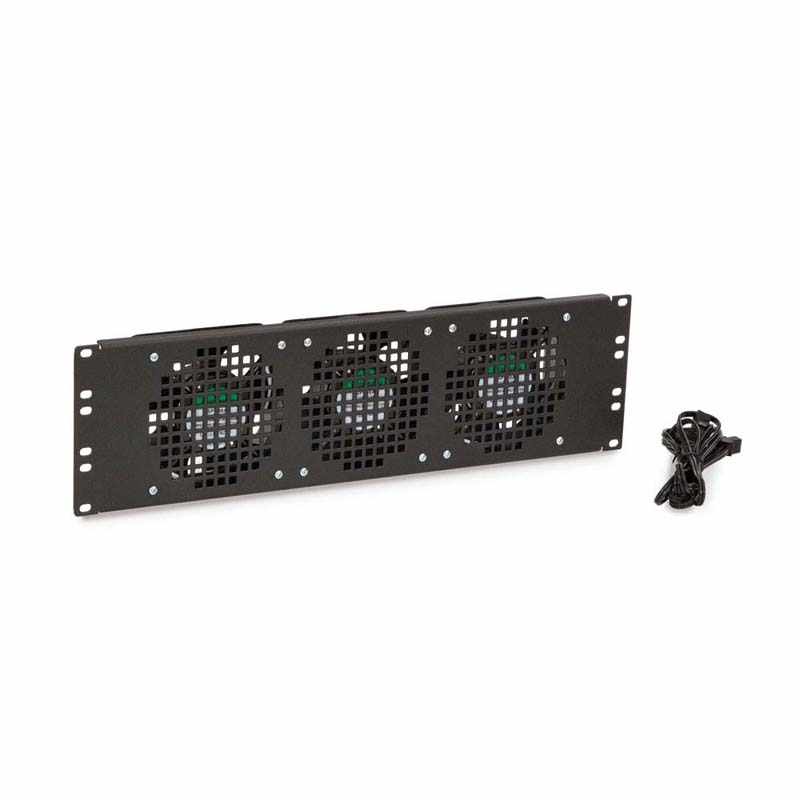

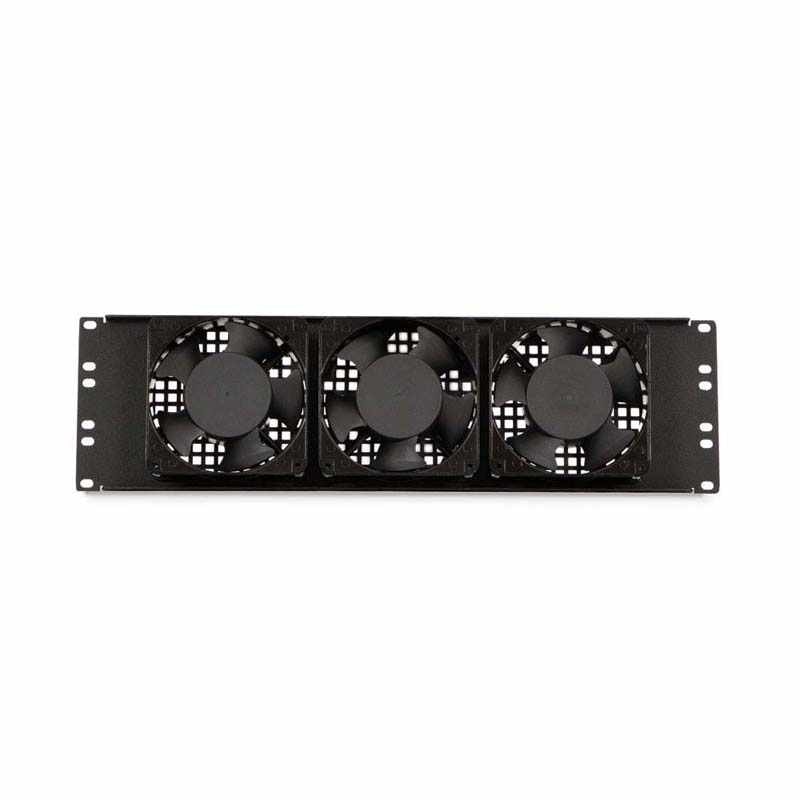

Kendall Howard 3U Triple Fan Panel

Reference#: 71207
Item#: KH-1908-3-001-02


Fans remove ambient heat that rackmount components emit. Circulating new air into a wallmount cabinet or server cabinet helps maintain the optimum temperature for rackmount components. The Kendall Howard Triple Fan Panel combines three 115 CFM fans, which together move 345 cubic feet of air per minute. By installing the Triple Fan Panel into your network configuration, you can ensure that the heat produced by your device will be properly and efficiently dissipated, resulting in a cooler environment within your cabinet. Simply mount the panel to the front or rear vertical rails of any 19” EIA Compliant rack and plug it in.Kendall Howard fan panels are top quality, pre-assembled and ready to install.


  • Three (3) 115 CFM fans
  • Pre-assembled and ready for use
  • Impedance protected
  • Black powdercoat finish
  • 1-year Warranty
  • Specification

    Part Number1908-3-001-02
    Weight6.50 lbs.
    Shipping Dimensions20.625" L x 5.625" W x 5.875" H
    Material(s)Rack Mount Panel: CRS (Cold Rolled Steel)
    Color/FinishRack Mount Panel: Black Powder Coat Finish
    Warranty1-Year Limited Warranty
    Shipping MethodFedEx Ground
    Fan SpecificationsBearing System: Sleeve
    Voltage: 115VAC
    Rated Speed: 3100 RPM
    Airflow: 115 CFM
    Noise Level: 49dBA
    Operating Temperature: 14ËšF (-10Ëš) to 158ËšF (70ËšC)
    Power Cord SpecificationsCable Length: 6ft (72 in)
    Plug Type: NEMA 1-15 (type A)
