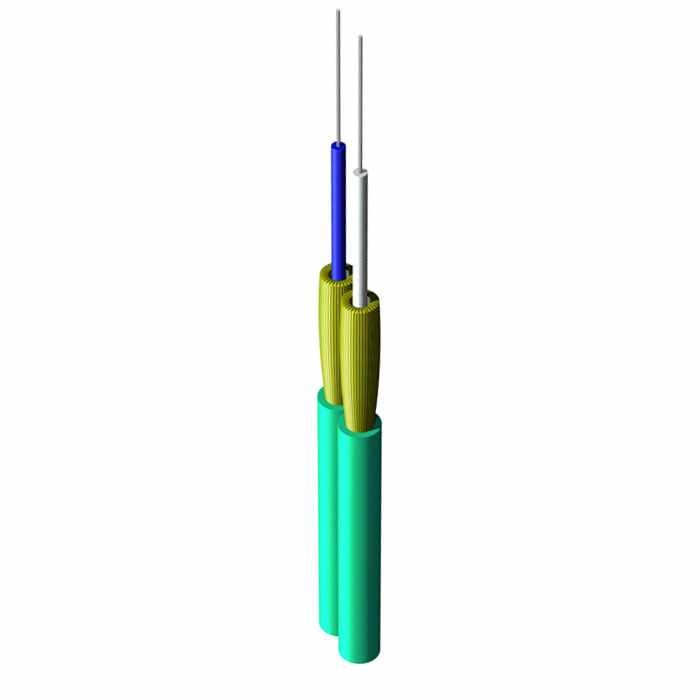

AFL 2 Strand Zipcord 10 Gigabit OM3 Plenum 3mm Fiber Optic Cable

Zipcord and DUAL-link cables are available to provide links to the future for such protocols as FDDI, 10 Gigabit Ethernet, ATM, and Fiber Channel. Connections are easy to terminate with this flexible, two-fiber design. AFL Telecommunications offers the broadest selection of duplex cordage including Plenum, Riser and LSZH in all diameters. LSZH jacketed cables are OFNR listed. One design for global companies that don’t want to maintain multiple cable types for varying global standards. Compliant with Directive 2002/95/EC (RoHS). Sold by the foot.

Learning Center:

Visit the Discount Low Voltage Blog to read the article on How To Pull Fiber Optic Cable - Tips/Advice

Visit our blog for a 10 Gigabit Ethernet Fiber Breakdown

• Print legend customization
• Jacket color - Aqua (OM3)
• Tight Buffer strip-ability (easy strip option allows removal of up to 1 meter of 900μm material without stripping the fiber’s 250μm coating)
• Ruggedized Duplex designs for transport from communications closet to wall outlet
• Tested to meet or exceed EIA/TIA 568-133 and Telcordia GR-409-CORE
• LSZH meets the requirements of IEC 61034-1, 61034-2, 60332-1-1, 60332-1-2, 60754-1, 60754-2
• Compliant to Directive 2002/95/EC (RoHS)
• AFL part number ZP002L301C01 Sold per foot.

• 18 lbs


• 0.11 in x 0.22 in


• Installation:  5.0 cm (2.0 in)

• Operation:   3.0 cm (1.2 in)


• Short-Term: 1063 N (239 lbf)

• Long-Term: 529 N (119 lbs)


Temperatures

• Storage: -40­°C­ to­ +75°C­­

• Installation:  0°C ­to ­+70­°C ­
• Operation:  ­ 0°C ­to ­+70­°C ­

Application

• Communications closet to wall outlet
• Wall outlet to desk
• Connectorized patchcords for interconnect and cross-connect applications
• Easy interface to ESCON®, FDDI, and various other duplex connectors
