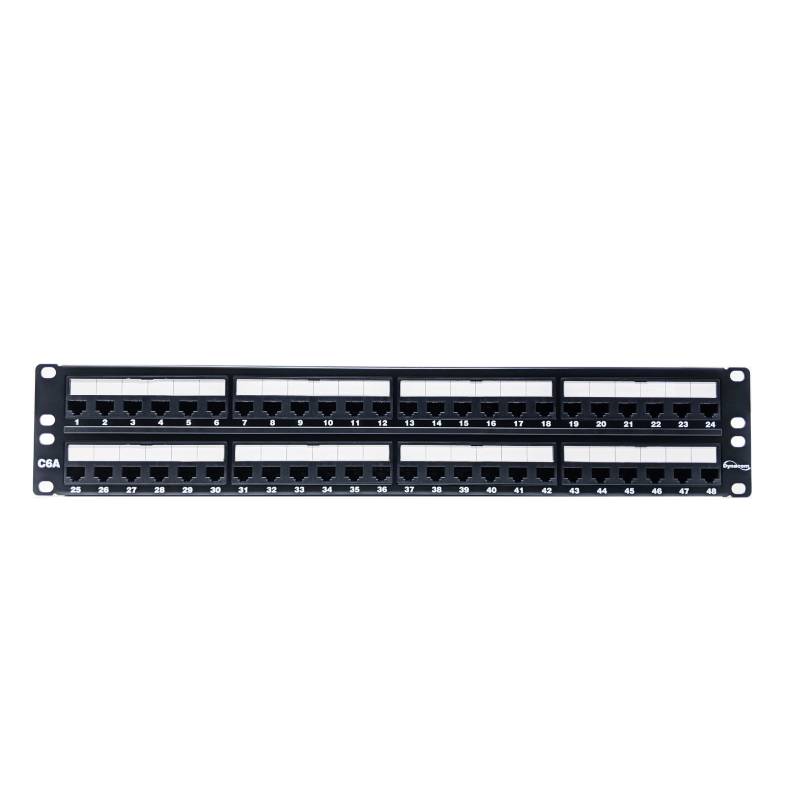

Dynacom 48-Port Cat 6A Patch Panel, 2U

$194.00
Reference#: 77410
Item#: DY-2012-48C6A



Description

Dynacom Cat 6A 110 style patch panels are designed to be used in the industry standard 19-inch racks and cabinets in telecommunication rooms and data centers. These panels meet or exceed all component level performance requirements in the ANSI/TIA-568.2-D Standard and the ISO/IEC 11801 standard. The horizontal IDC provides termination and great time-saving benefit.

Features

  • Ideal for 10 Gig network application
  • Integrated Labels with Clear Lenses

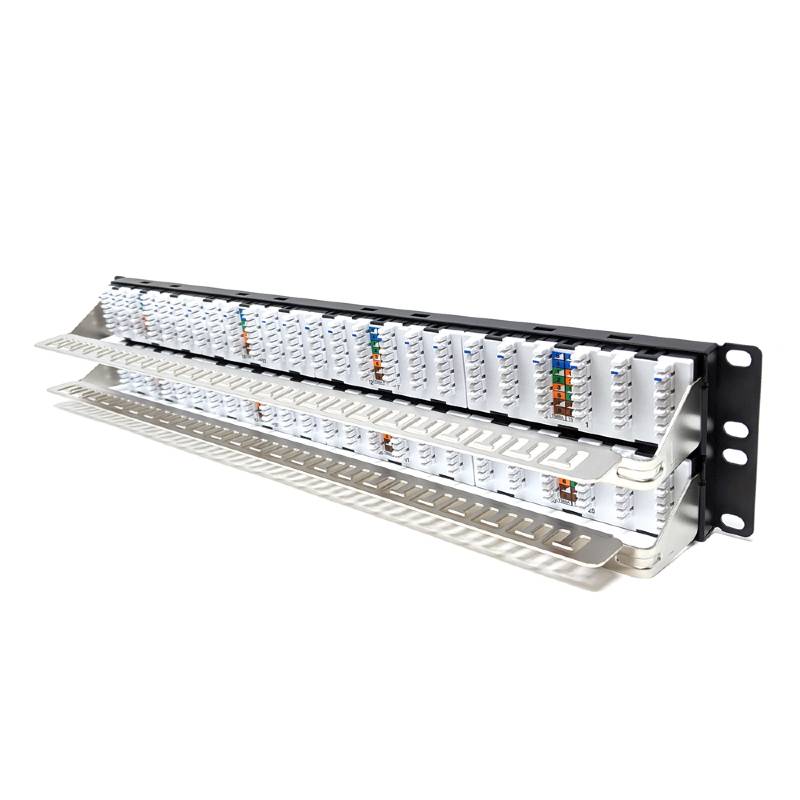

  • Quick Install Wire Management Bar included

    • Specification

    Transmission Performance
     Meets all requirements specified in connecting hardware requirement ANSI/TIA-568-C.2 Cat.6A
    IEEE 802.3bt type 4 for PoE applications

    Electrical
     Electrical Insulation Resistance: 500ohm min. @ 100V d.c
    Dielectric Withstanding Voltage: 1000V d.c or a.c
    Peak contact to contact @ 60Hz for 1 minute.

    Mechanical
     Insertion/Extraction Life: 750 cycles minimum
    IDC Wire Gauge: 22~24 AWG

    Physical
     Housing: High-impact, flame-retardant plastic
    UL 94V-0
    Spring Wire: Phosphor bronze alloy plated with 50 micro-inch of gold
    IDC: Phosphor bronze alloy with 100 micro-inch 100% sn alloy
