Southwire P20044 300V Plenum Rated 22 Gauge 12 Conductor Unshielded LS-PVC Cable (1,000 ft) * Limited to Quantity on Hand *

$484.00
Reference#: 68023
Item#: 2280AB12CMP



Description

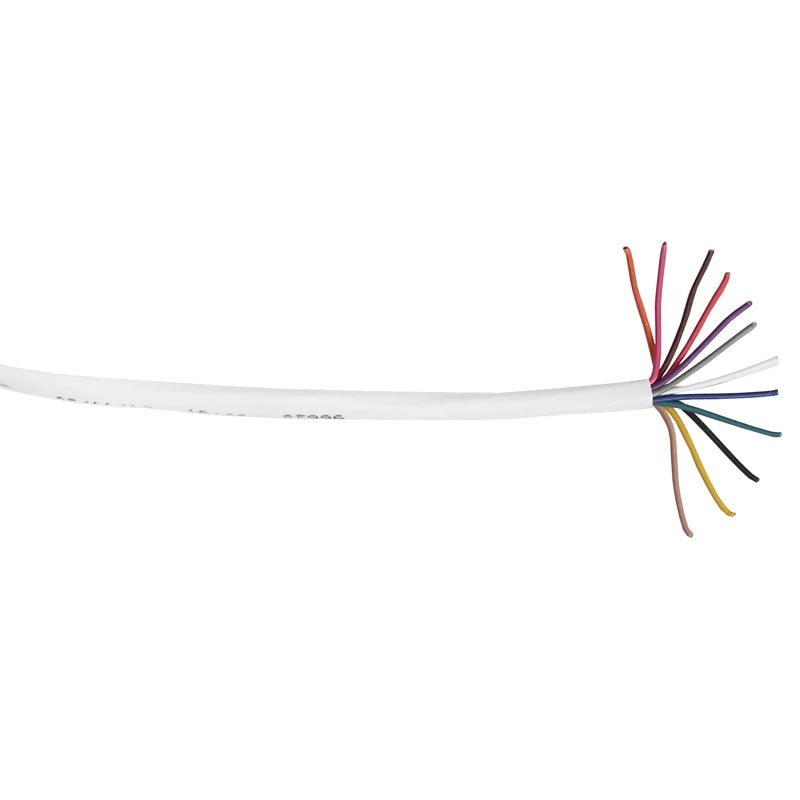

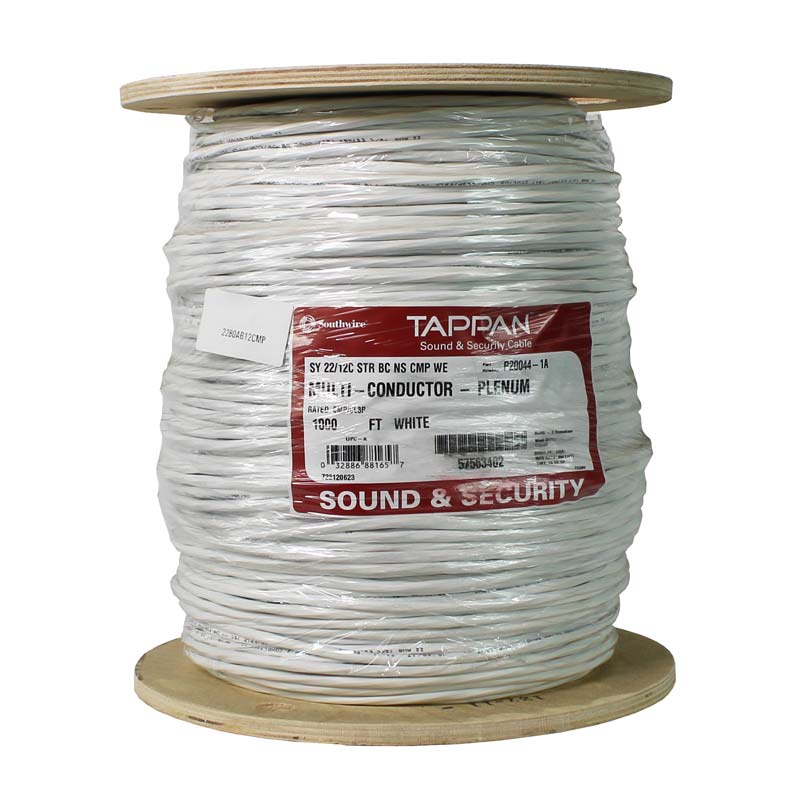

The Southwire P20044 plenum 22 gauge multiconductor cable is ideal for; security, sound and audio, speaker cable, public address, intercom, sound reinforcement, alarm and access control circuits and power-limited controls. This 12 conductor cable is constructed with stranded bare copper for a flexible, yet sturdy design to reduce breakage. CMP/CL3P/FPLP FT6 rated, 300V and made in the USA. DLV sells this Southwire low smoke polyvinyl chloride (LS-PVC) sound and security cable in 1,000 ft lengths.

Features

  • Sequential footage markings for easy identification during installation
  • Made in the USA
  • UL Listed

Specification

Construction:
  • Gauge: 22
  • Conductors: 12
  • Riser/Plenum: Plenum
  • Shielded: No
  • Jacket: White LS-PVC
Ratings:
  • UL 1424 FPLP, NEC article 760
  • UL 13 CL3P, NEC article 725
  • UL 444 CMP
  • CSA C22.2 No. 214 CMP
  • Flame Test NFPA 262 (UL 910) / CSA FT6
  • Directive (EU) 2015/863 – RoHS 3
