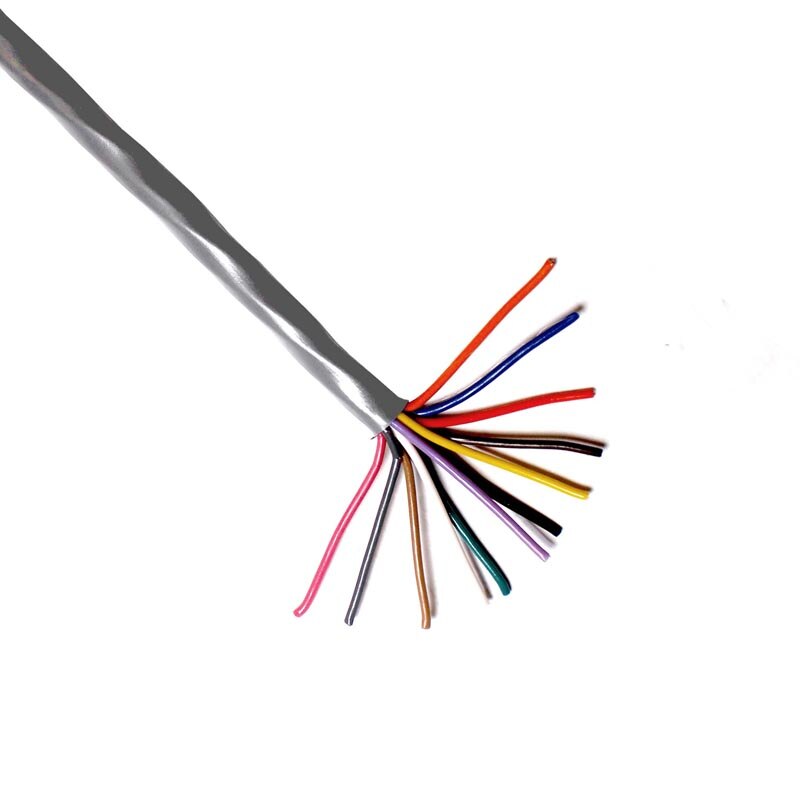

Southwire R20487 300V Riser Rated 22 Gauge 12 Conductor Unshielded PVC Cable (1,000 ft)

$441.00
Reference#: 68024
Item#: 2280AB12CMR



Description

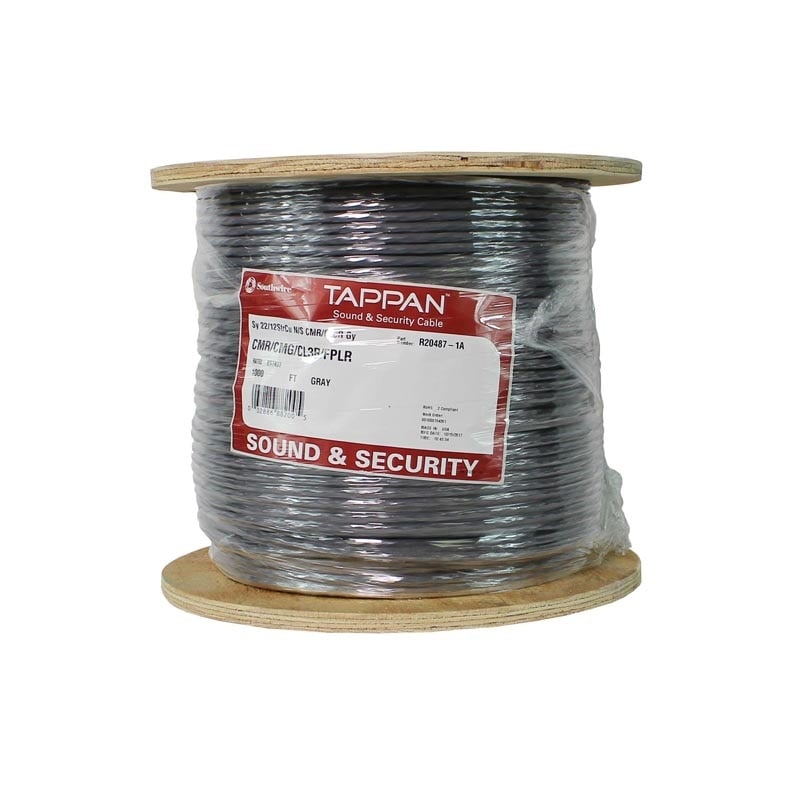

The Southwire R20487 22 gauge multiconductor cable is ideal for; security, sound and audio, speaker cable, public address, intercom, sound reinforcement, alarm and access control circuits and power-limited controls. This 12 conductor cable is constructed with stranded bare copper for a flexible, yet sturdy design to reduce breakage. CMR/CL3R/FPLR rated, 300V and made in the USA. DLV sells this Southwire sound and security cable in 1,000 ft lengths.

Features

  • Sequential footage markings for easy identification during installation
  • Made in the USA
  • UL Listed

Specification

Construction:
  • Gauge: 22
  • Conductors: 12
  • Riser/Plenum: Riser
  • Shielded: No
  • Jacket: Gray PVC
Ratings:
  • UL 444 CMR, NEC article 800
  • UL 1424 FPLR, NEC article 760
  • UL 13 CL3R, NEC article 725
  • Flame Test UL 1666 Vertical Riser / CSA FT4 (UL 1581)
  • CSA C22.2 CMG by C(UL)
  • Directive (EU) 2015 / 863 – RoHS 3
