Cat 3 Telco Patch Panel, 6P6C, 24 port, 1U - Female

Reference#: 72754
Item#: SH-MP51HU246F

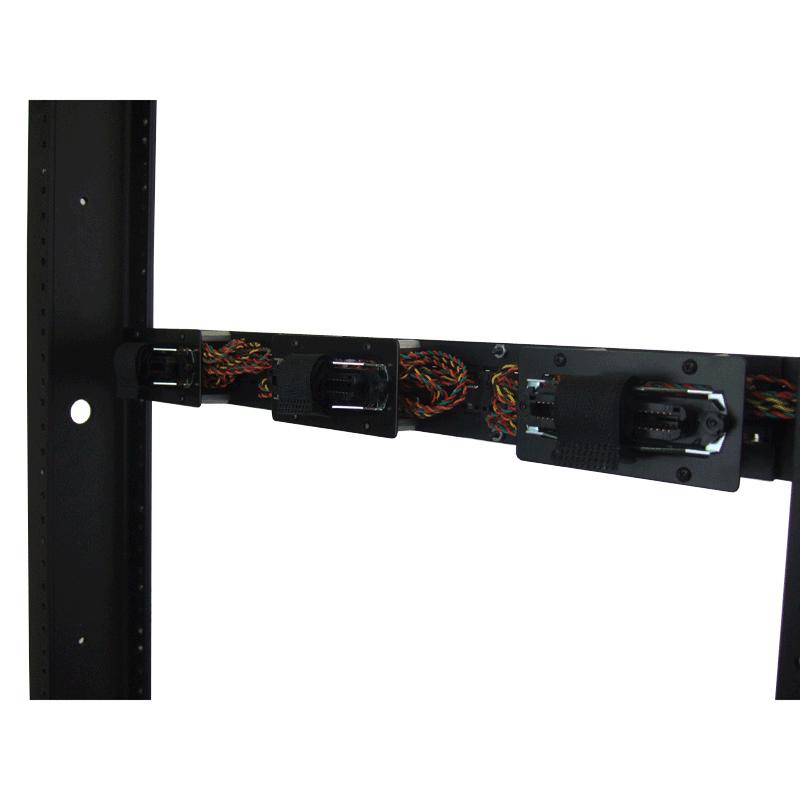

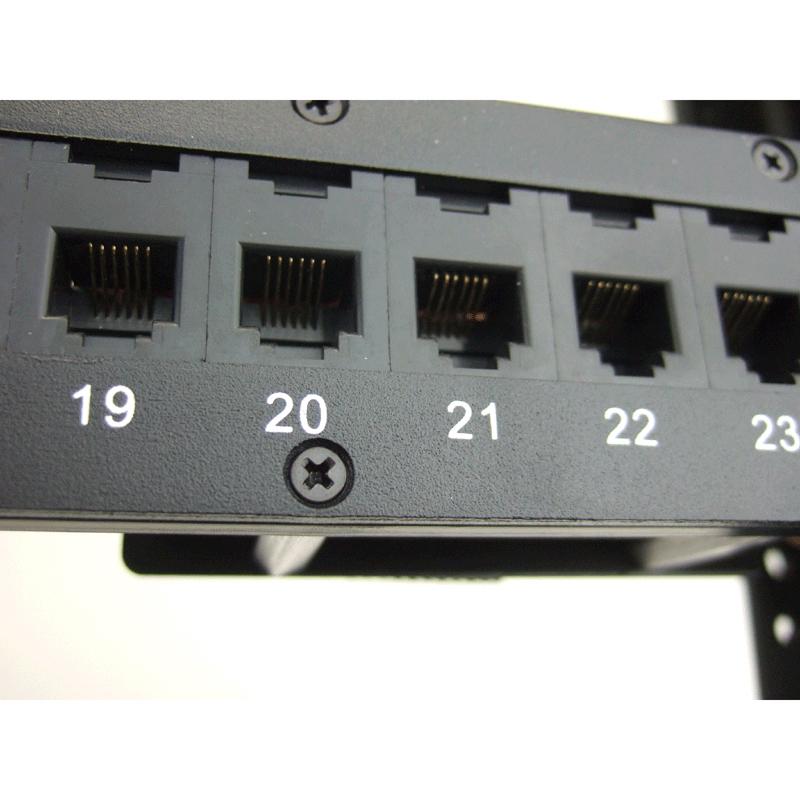

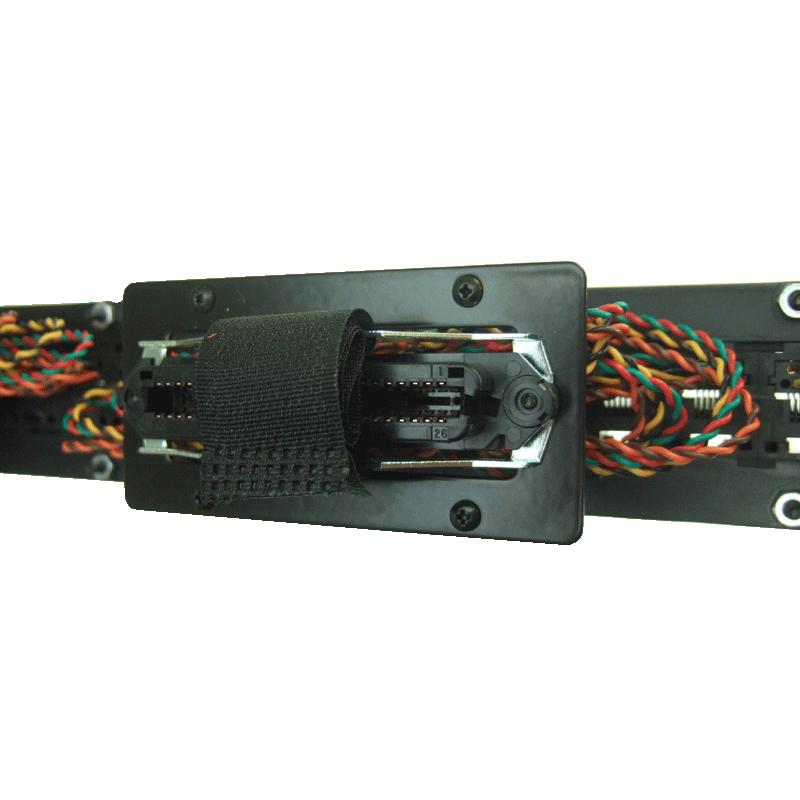

Category 3 Modular-Telco Patch Panels are available in 24 port sizes and support RJ-11 2-wire, RJ-11 4-wire, and RJ-14 6-wire USOC wiring systems. Each 50 position (50 pin) Telco connector is provided with both Velcro strain relief brackets and hex sockets to secure 25 pair cables with either 90 degree or 180 degree cable exit. Panel front features a write-on surface to provide port identification. Panels include an integrated cable management/strain relief system for improved cable routing and strain relief.


Provides flexibility for multi-port customer premises equipment connections

Category 3 transmission performance

Saves labor cost otherwise needed for multiple terminations

Standard 50 position (25 pair) male/female Telco style connectors

Contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs

Standard pin configuration

Available in 2- and 4-wire USOC wiring schemes

Rated for at least 750 plug insertions providing for the highest level of system reliability

Easy access to Telco connectors

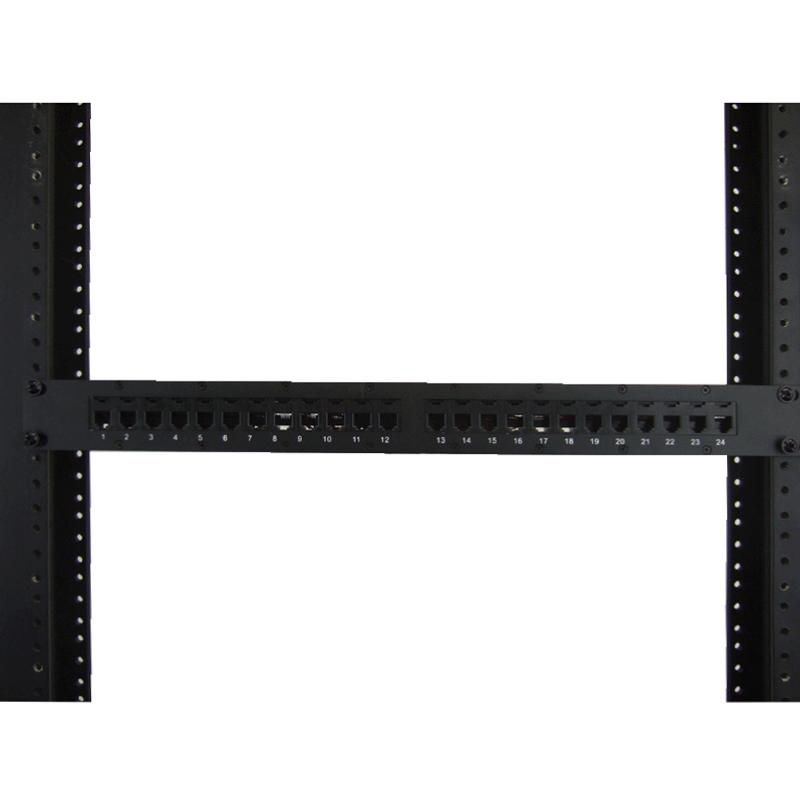

Designed to fit all standard 19" racks and cabinets

1 rack mount space (RMS)1.75"

Made in USA
