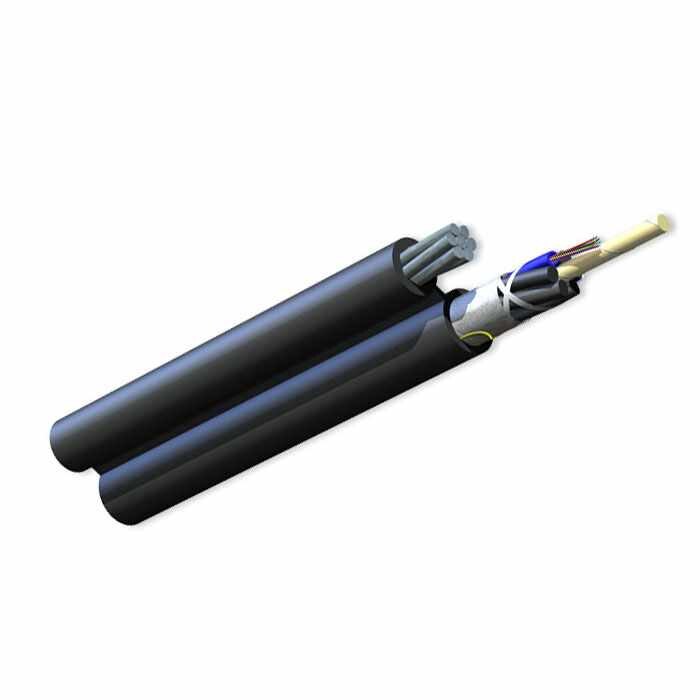

Corning 24 Strand 62.5/125 Multimode OM1 Outdoor Figure 8 w/Messenger Fiber Optic Cable - Black (Per Foot)

$6.15
Reference#: 69138
Item#: COR-024KUA-T4130D20



Description

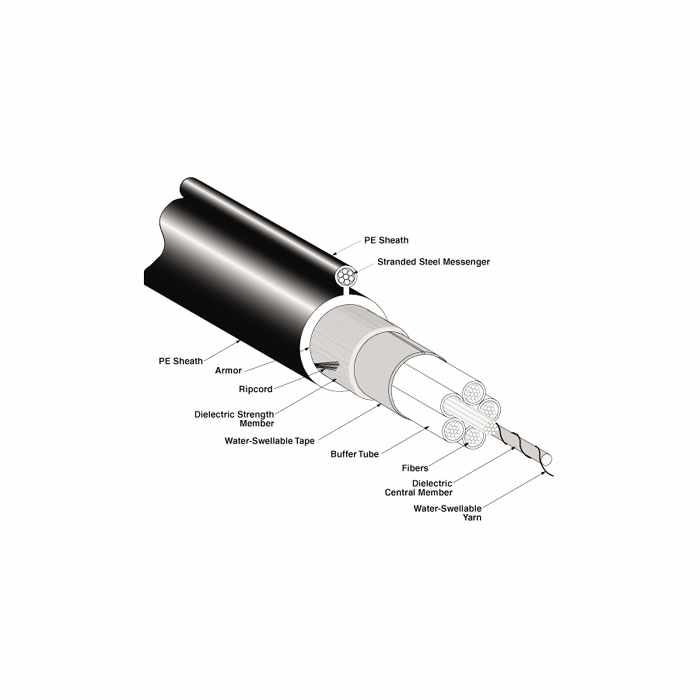

Corning Cable Systems ALTOS Figure-8 Gel-Free cables are self-supporting aerial cables designed for easy and economical one-step installation. The loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunications grade optical fiber. The gel-free design is fully water blocked using craft-friendly water-swellable materials, making cable access simple and requiring no clean up.

Features

  • Fully water blocked loose tube design and gel free makes for simple access and no clean up
  • Medium density polyethylene jacket is rugged, durable and easy to strip
  • Figure 8 cable design makes for a easy one step installation
  • Multimode 62.5

Specification

Nominal Weight (lb/1000 ft)
  • 199
Nominal Outer Diameter
  • 0.41 in
Minimum Bend Radius
  • Loaded:  15.8 cm (6.2 in)
  • Installed:  10.5cm (4.1 in)
Maximum Tensile Loads
  • Light:  790 ft
  • Medium:  770 ft
  • Heavy:  550 ft
Temperatures
  • Storage -40°C to 70°C (-40°F to 158°F)
  • Installation: -30°C to 70°C (-22°F to 158°F)
  • Operation: -40°C to 70°C (-40°F to 158°F)
Common Installations
  • Outdoor self-supporting aerial
Design and Test Criteria
  • ANSI/ICEA S-87-640
