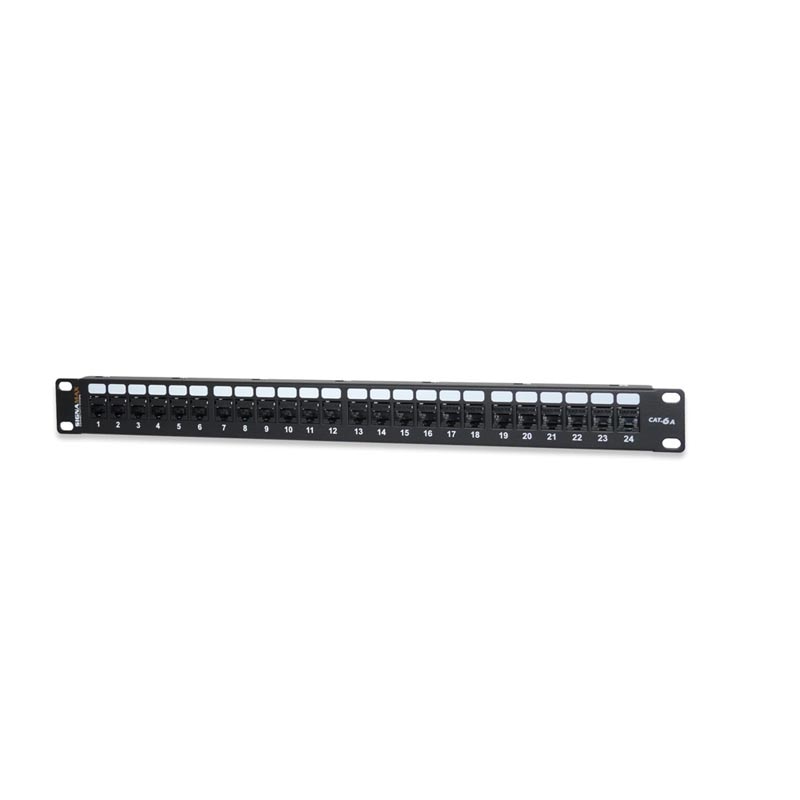

Signamax 24 Port Cat 6A Unscreened MT-Series Patch Panel

$194.40
Reference#: 68043
Item#: SG-24458-C6A



Description

The Signamax 24458-C6A 24 Port Category 6A MT-Series Unscreened Patch Panels are designed to offer a complete panel and jack option. This MT-series includes a 24 port panel, black snap-in keystone jacks, and a cable management bar. This unique design allows easy termination and greater flexibility for future adds, moves or changes, giving installers the perfect cost effective solution for Category 6A applications.

The patch panels rolled-edge steel construction eliminates panel flex, and in lieu of fixed termination, a standard single-position 110 termination tool or a specialized Signamax multi-pair tool can be used. For easy circuit identification, each port designation features a labeling area with a reference number. The keystone jacks are rated for a minimum of 750 plug insertions providing for the highest level of system reliability.

Features

  • Exceeds ANSI/TIA-568-C.2 transmission performance specifications
  • Meets IEEE 802.3an 10-Gigabit Ethernet transmission requirements
  • Eliminates alien crosstalk with solid-metal cable-retention cap on connector modules
  • Removable rear cable management bar
  • Improved wire retention and ease of termination with rear 110 type contacts
  • Slim profile for the highest density applications
  • Cold-rolled steel construction for maximum strength and durability
  • Easy-to-read T568A/B wiring scheme color-coded label

Specification

  • TRANSMISSION PERFORMANCE

ANSI/TIA-568-С.2: meets or exceeds category 6A (1-500 MHz) component specifications

  • TRANSMISSION MEDIA

Unscreened twisted pair (U/UTP)

  • JACK TYPE

8p8c (8-position, 8-contact) “RJ45” style

  • WIRING SCHEME

ANSI/TIA-568-C.2: T568A & T568B
ISO/IEC 11801 2nd Ed.: 8-position pin/pair assignment (1-2/3-6/4-5/7-8)

  • WIRE GAUGE

22 to 24 AWG (0.644 to 0.511 mm)

  • ELECTRICAL

Insulation Resistance: Min 500 MOhm @ 100 Vdc
Dielectric Withstanding Voltage: 1,000 Vdc/ac peak contact-to-contact @ 60 Hz for 1 min
Spring Wire Contact Resistance: Max 20 mOhm
IDC Contact Resistance: Max 2.5 mOhm
Current Rating: Refer to downloadable spec sheet

  • CONSTRUCTION

Panel:
     Front: Steel with corrosive resistant black finish
     Rear: Steel
Cable management bar: Thermoplastic with steel brackets
Jack:
     Housing: High impact thermoplastic, UL94V-0 fire retardant
     Spring Wire: Phosphor bronze alloy plated with 50 μin of gold over 70 to 100 μin of nickel
     IDC: 110 type, phosphor bronze alloy with 100 μin 100% tin alloy

  • MECHANICAL

Total Contact Force: Min 800 g for 8 wire leads with FCC compliant 8p8c plug
Retention: 50 N (11 lbf) for 60 ± 5 s
Mating Cycle Life: Min 750 cycles with FCC compliant 8p8c plug

  • MOUNTING DIMENSIONS

Panel: 19-in rack mountable
Depth:
Management Bar Installed: 6.0” (153 mm)
Management Bar Uninstalled: 1.5” (38 mm)
Height:
24458-C6A: 1 RMU (1.75” (44.45 mm))
48458-C6A: 2 RMU (3.50” (88.90 mm))
72458-C6A: 2 RMU (3.50” (88.90 mm))
Jack: 1.21” D x 0.67” W x 0.76” H (30.8 mm x 16.9 mm x 19.3 mm)

  • ENVIRONMENTAL CONDITIONS

Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

  • COMPLIANCE

ANSI/TIA-568-C.2, IEEE 802.3 ab, FCC Part 68 Subpart F, UL 94V-0, UL 1863, IEC 60603-7

  • APPLICATIONS

X.21, V.11, S0, ISDN, CSMA/CD 10BASE-T, 100BASE-TX, 100BASE-T4, 100BASE-T2, 1000BASE-T, 10GBASE-T, TR 4/16/100, 100BASE-VG, ATM LAN 25/51/155, TP-PMD

  • WARRANTY

 5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System
