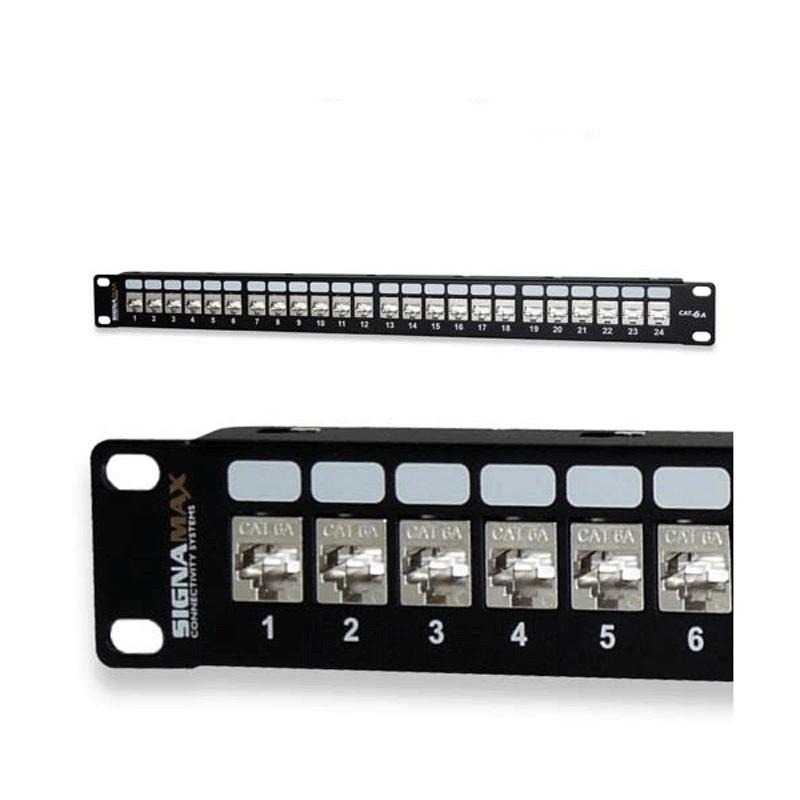

Signamax 24 Port Shielded Category 6A Patch Panel

Reference#: 68045
Item#: SG-24458S-C6A


The category 6A screened patch panel has 24-ports and provides the ability to terminate screened category 6A cable. Keystone connectors used in the panel are designed to meet or exceed TIA-568-B.2-10 channel level specifications for superior performance. The panel is designed to accommodate both unscreened and screened category 6A keystone jacks, which makes it a universal solution. The panel features front labeling areas and comes with a rear cable management bar that mounts easily to the back of the panel.

Category 6A screened patch panels are designed to meet 10 Gigabit Ethernet IEEE 802.3an rev. 1.0 transmission requirements and are guaranteed to exceed ANSI/TIA-568-C.2 performance specifications. These high-density panels feature port labeling areas and port numbering for easy circuit identification.

Panels are supplied with 10G screened connectors supporting both T568A and T568B wiring using an east-to-read color-code wiring label. This uniquely designed connector features a tool-less termination method for quick and easy installation. A new contact design provides enhanced plug-to-jack connection integrity and is rated for a minimum of 750 plug insertions providing for the highest level of systems reliability. Jacks are fully shielded to optimize protection from EMI including alien crosstalk.

Panels are provided with a newly designed cable management bar that easily mounts to the back of the panel without the need for mounting screws. This cable management bar features improved cable routing and strain relief.


• Connector transmission performance meets or exceeds TIA-568-B.2-10 channel level performance specifications.

• Termination is made quick and easy using a tool-less termination.

• Rear cable management bar.

• Connector contact design provides enhanced plug to jack connection integrity and protects against damage caused by insertion of 4 or 6 position plugs.

• Connectors are rated for at least 750 plug insertions providing for the highest level of system reliability.

• Maximum strength and durability construction.
