Kendall Howard, 22U LINIER® Server Cabinet - Glass/Vented Doors - 36" Depth

Reference#: 71263
Item#: KH-3100-3-001-22

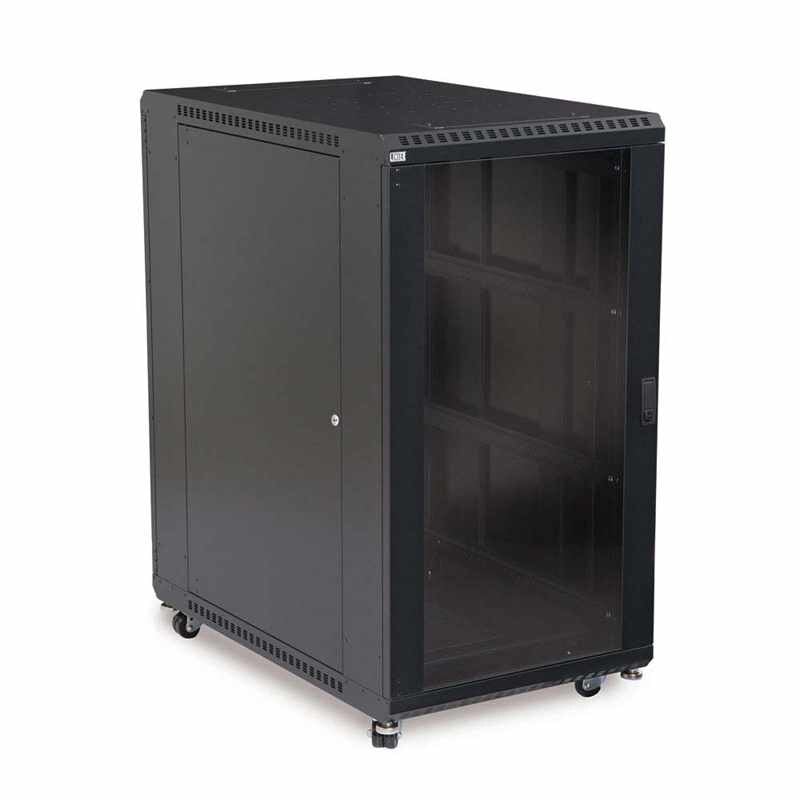

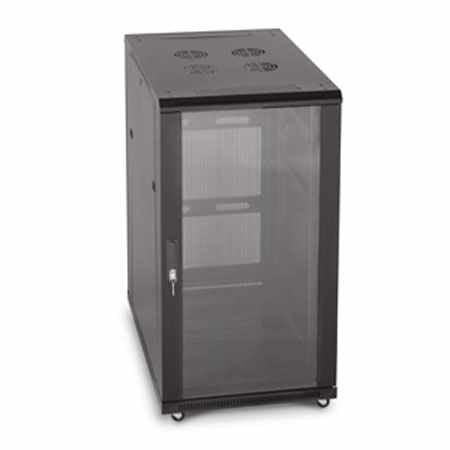

The LINIER™ full size rack is our entry level cabinet. This rack comes with a glass door on the front and a vented rear door. Each rack has 2 sets of vertical rails, adjustable in 1 inch increments, lockable/removable side panels, casters and levelers. The top of the cabinet has cut-outs allowing you to install up to four 4 inch fans while there are removable cable slots for easy installation for all your network communication lines. Our cabinets are available in 22U, 27U, 37U, 42U sizes.

Ships via LTL freight.

Equipment will mount in this rack using cage nuts (Not Included)

See Related Items


Easy Installation:
  • Casters and levelers are pre-installed to allow you to easily move and load your system into the desired location. (Rack hardware not included.)
Removable Cable Access Panels:

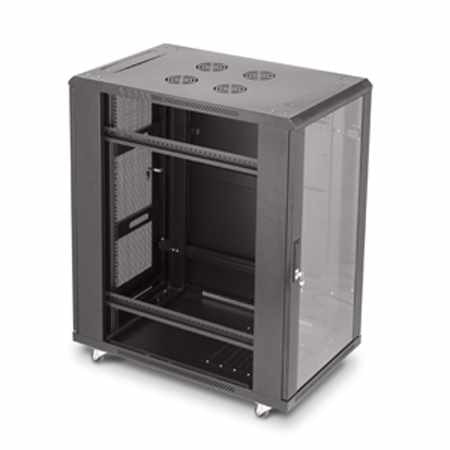

  • The top of the server cabinet includes removable laser knockouts for cable access and added versatility.
Locking, Removable Side Panels:
  • For a completely different look, the side panels are both removable and lockable giving you the option to create the cabinet that best suits your needs.
Adjustable Rails:
  • Includes two sets of adjustable, vertical rails which extend to a maximum depth of 36” for versatile mounting options.
Secured System:
  • Both doors are equipped with locks to help protect and secure your valuable equipment.
Locking Tempered Glass Door:
  • The locking tempered glass door allows installers to easily access and view their network equipment.
Locking Vented Door:
  • The locking perforated door promotes better air circulation within the cabinet. This vented design is especially helpful for equipment that generates a lot of heat, such as servers, UPS’s, and more.


Part Number:
  • 3100 -3-001-22
  • 24
  • 37.72" (36" usable Depth)
  • 45.50"
  • 155.00 lbs.
Shipping Dimensions:
  • 32" L x 45" W x 53" H
  • Black Finish
  • 879447001617
  • 5- Year Limited Warranty
Shipping Method:
  • LTL Freight

  • Includes one locking tempered glass door and one locking vented door
Removable locking side panels
  • 36” depth (Also available with a 24” depth)
  • Other sizes available: 27U, 37U, 42U
  • 1300 lb. weight capacity (Holds 800 lbs. on casters)
  • Includes pre-installed casters and levelers
  • Includes two sets of adjustable cage nut style mounting rails
  • Top includes removable laser knockouts
  • 19” EIA 310-D compliant
  • Made in the USA
  • 5-Year Limited Warranty
