Superior Essex Cat5e 25 Pair Indoor/Outdoor Cable (per foot) * 250ft minimum

Reference#: 75727
Item#: SE-51-499-EL-Z

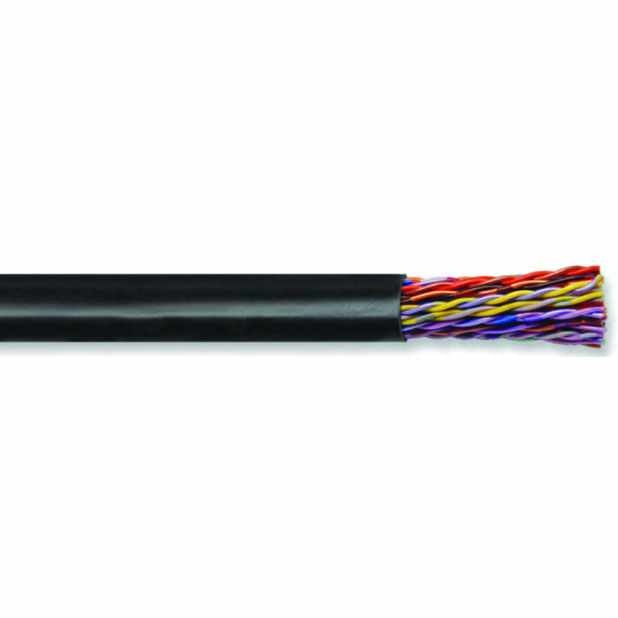

Cat5e 25 Pair Indoor/Outdoor Bulk Cable

Note: 250ft Minimum Order

With its CM fire rating and UV resistant black jacket, this 25-pair, 24 gauge, Category 5e tight twisted copper conductor cable can be installed in both premises and outside plant (OSP) environments. The CAT 5e tight twist lays provide superior crosstalk performance, supporting digital subscriber line (xDSL) and IPTV broadband technologies in both the OSP pedestal and customer premises. In addition, the cable jacket is fungus resistant which is important in OSP pedestal environments. The cable meets or exceeds ANSI/TIA-568-C.2 for CAT 5e backbone cables and is able to support up to 1000BASE-T Ethernet technologies.


  • Small outside diameter
  • Vibrant insulation colors
  • Black, CM rated, non-haolgen, OSP grade jacket material
  • Fungus resistance
  • Compliant to ANSI/TIA-568-C.2 for CAT 5e
  • Specially designed tight twist lays
  • Low temperature bend performance
  • Handles tight installations
  • Easy identification of conductors
  • Provides full sunlight resistance and fire protection in a flexible jacket
  • Non-nutritive to fungus and ideal for installation in humid environments
  • Capable of 1000BASE-T
  • Provides superior Alien Crosstalk performance for xDSL applications
  • Allows installation at -20°C temperatures

Note: Minimum Order Quantity - 250ft
To order, add ANY length above 250ft in "Add to Cart" box.


Superior Essex Part Number: 51-499-EL

• 10BASE-T through 1000BASE-T Ethernet, ATM and token ring

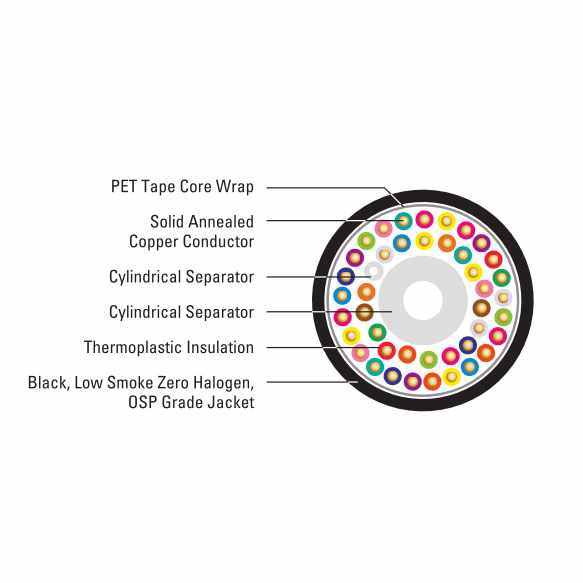

Physical Characteristics:

Nominal Diameter in (mm) - 0.59 (15)
Approx. Weight lbs/kft (kg/k) - 148 (221)


Pair Count - 25

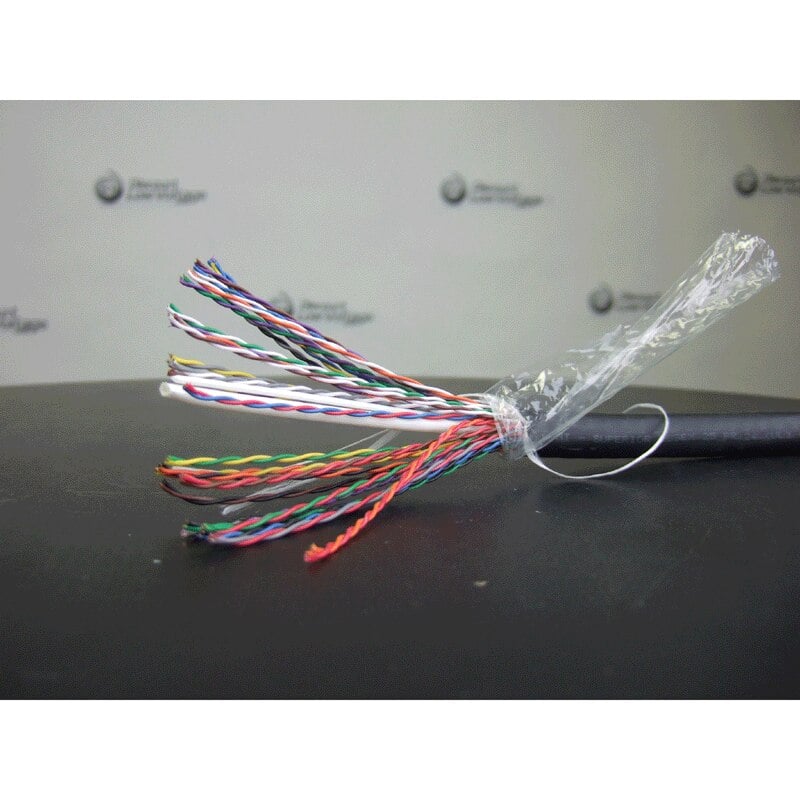

Conductor - Solid annealed copper
AWG - (mm) 24 (0.51)
Insulation - Thermoplastic
Separators - Cylindrical, flame retardant thermoplastic
Core Wrap - PET Tape

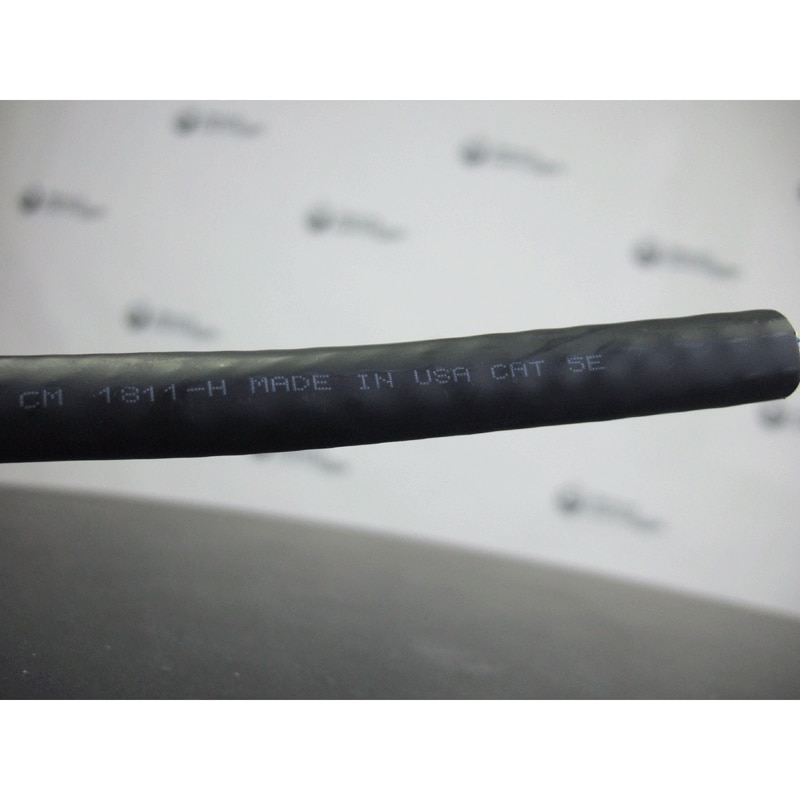

Jacket - Black, CM rated, non-halogen OSP grade
Input Impedance - (Ohms) Guaranteed @ 1-100 MHz 100 ± 15
Delay Skew - (ns/100 m) Maximum: 45 Typical: 30
Nominal Velocity of Propagation - (%) 69
DC Resistance - (Ohms/100 m) Maximum: 9.38 Typical: 9.0
Resistance - Unbalance (%) Maximum: 5.0 Typical: 0.7
Performance Compliance:
- UL 444
- CSA C22.2 No. 214-08
- ANSI/TIA-568-C.2
- RoHS-compliant
NRTL Programs - UL, c(UL) Listed CM

Note: Minimum Order Quantity - 250ft
To order, add ANY length above 250ft in "Add to Cart" box.
