Coleman Cable 16 Gauge 2 Conductor Underground Lighting Cable - Per Foot * Limited to Quantity on Hand *

Reference#: 68975
Item#: CC-55266

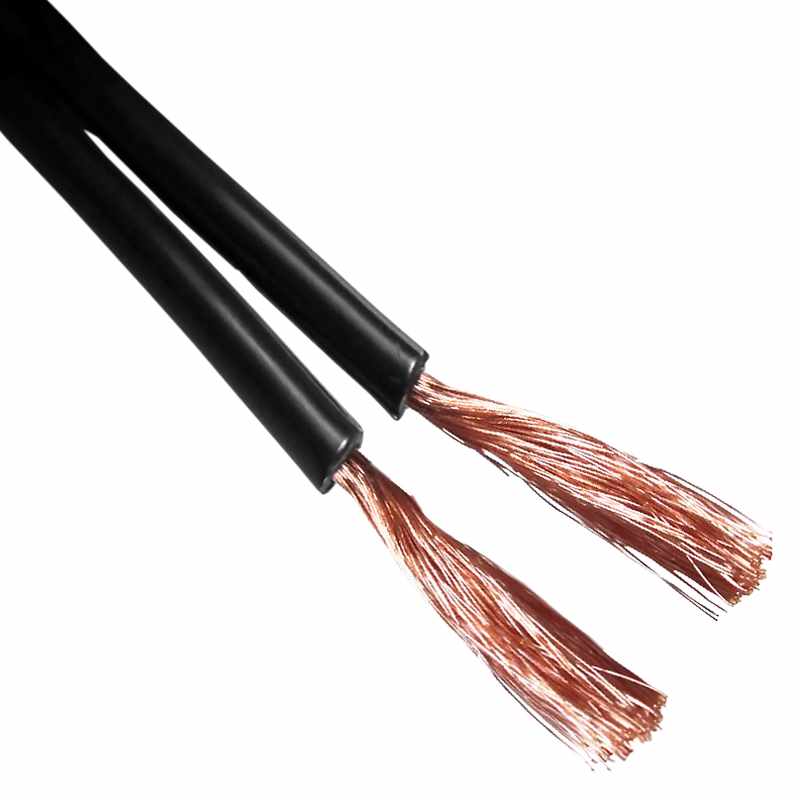

Coleman Cable # 55266 consist of two bare copper conductors with integral insulation and jacket in an SPT style construction and is intended for underground applications. This stranded low energy circuit cable is sunlight resistant and features sequential footage markings. This underground lighting cable is manufactured by Coleman Cable (now owned by Southwire) and cut by the foot here at Discount-Low-Voltage.

* This item is cut per foot and non-returnable
* Longest continuous length is 1,000ft


- Temperature rating from -20C to 60C
- Operating Voltage 30Vac Max
- Conductor 16 AWG Bare Copper
- Stranding 26/30
- Overall Dimensions 0.14" x 0.277" Nom.
- Insulating/Jacket Material PVC
- Insulating/Jacket Thickness 0.041" Nom.
- DC resistance per conductor @ 20C 4.0 Ohms/1M' Nom
- Legend (indent print) CCI E323897 16AWG 2/C Underground low energy circuit cable, sunlight resistant, 60C, UL, 30VAC
