Commscope Direct Burial Cat5e 4 Pair Outdoor Cable w/Gel, USA Made (1000ft spool)

$389.00
Reference#: 69274
Item#: CS-5NF4



Description

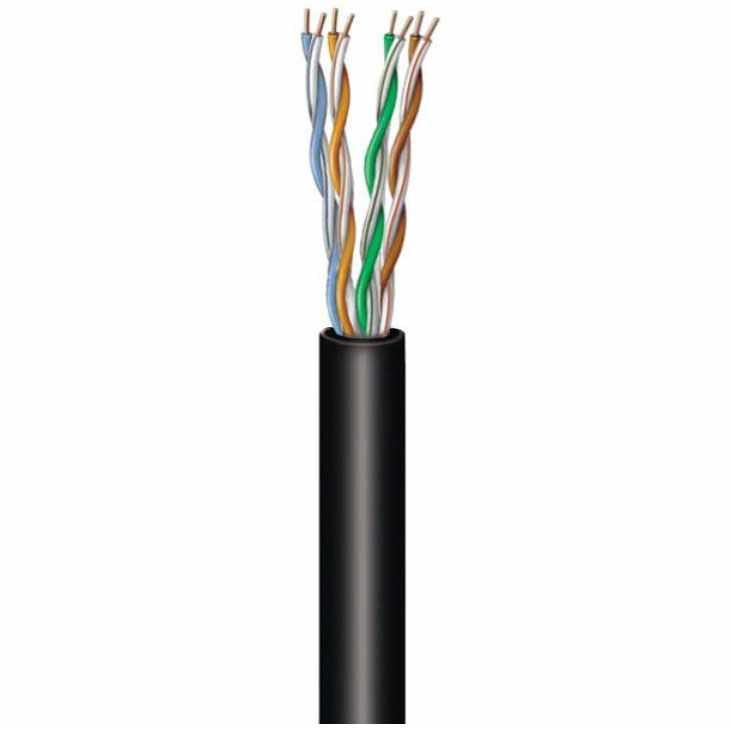

Direct Burial Unshielded Cat5e 4 Pair Cable with Gel

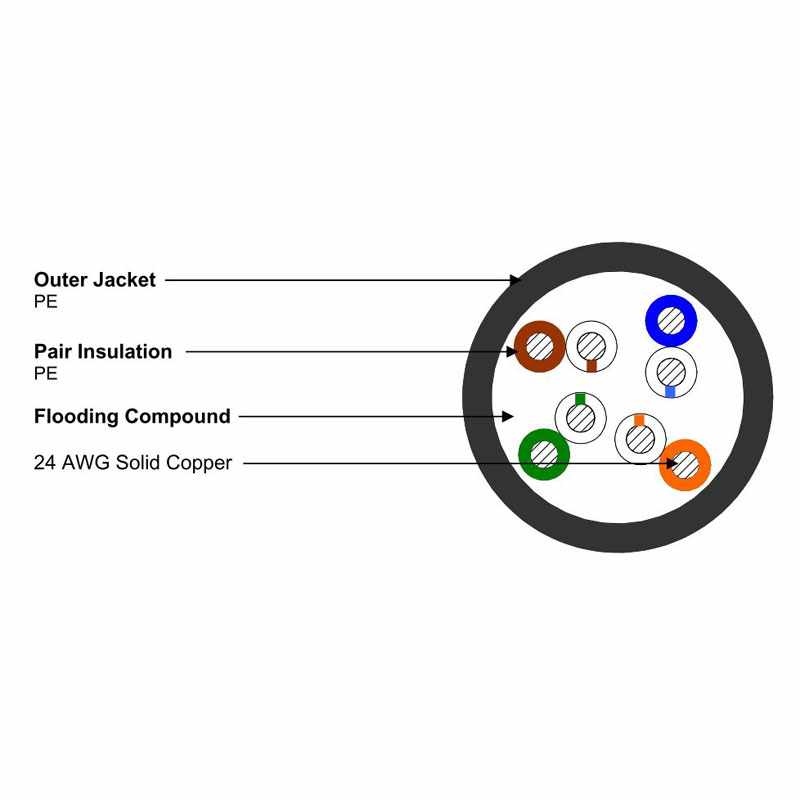

This Cat5e direct burial cable is suitable for use in underground applications. A water blocking gel is flooded throughout the cable, for protection where water is present. Commscope 5NF4 Cat5e direct burial cable has 4 pairs of solid copper conductors, a PE outdoor rated jacket, and is suitable for aerial applications (if support cables are present). Unshielded twisted pair, 24awg construction. Sold per 1,000ft. USA Made!

Features

1,000ft length

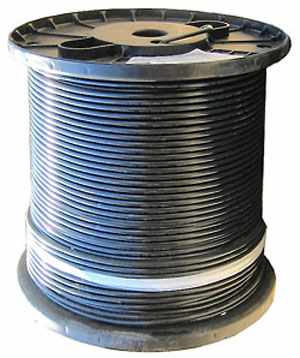

Comes on sturdy easy to use spool
USA Made
UV Resistant Jacket
RoHS Listed

Specification

Applications: Gigabit ethernet 155 Mb/s ATM 100 Mb/s TP-PMD/CDDI

Exceeds/Meets: ANSI/TIA/EIA 568B.2 category 5e CENELEC EN50173

ICEA S-90-661 NEWA low-loss extended frequency AS/NZS 3085.1

ISO/IEC 11801

Mechanical Specifications:

Nominal Jacket OD: 0.240"

Nominal Jacket Thickness: 0.030"

Operational Temperature: -40C to 70C
