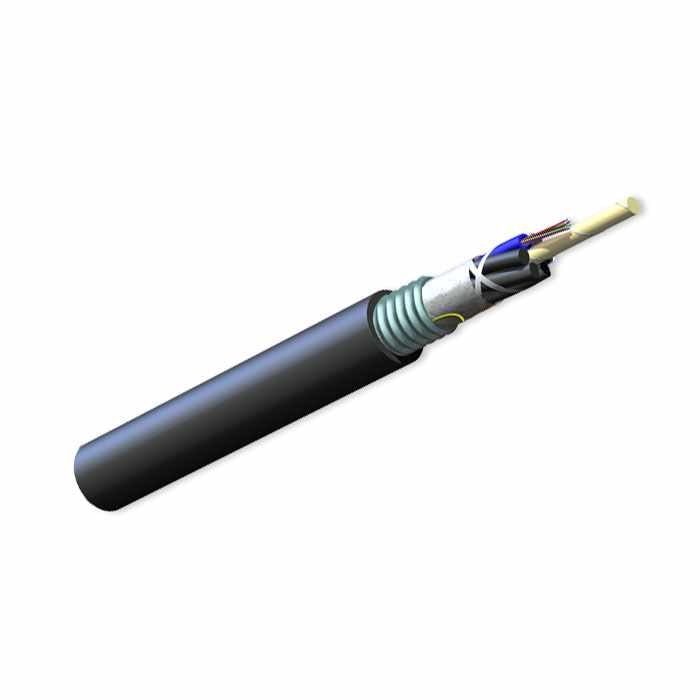

Corning 6 Strand Singlemode Direct Burial Armored Fiber Optic Cable - Black (Per Foot)

$0.82
Reference#: 69040
Item#: COR-006EUC-T4101D20



Description

The Corning 6-Strand Singlemode Armored Fiber Optic Cable (Part Number: 006EUC-T4101D20) is engineered to deliver exceptional performance in demanding outdoor environments. Its robust construction and advanced design make it an ideal choice for direct-buried installations and high-speed data transmission across various applications.


UTILITY
This cable features a gel-free, water-blocked design utilizing water-swellable yarns and tapes that simplify access and eliminate the need for cleanup during installation. The corrugated steel tape armor provides enhanced protection against crush forces and rodent intrusion, ensuring durability in direct-buried scenarios. The loose tube design, with SZ-stranding, isolates fibers from environmental and mechanical stresses, allowing for easy mid-span access while maintaining signal integrity. The medium-density polyethylene jacket offers additional ruggedness, UV resistance, and ease of stripping, making it suitable for various outdoor applications.


AVAILABILITY
At Discount Low Voltage, we stock the Corning 6-Strand Singlemode Armored Fiber Optic Cable, ensuring prompt fulfillment of your orders. We offer this cable in custom lengths to meet the specific requirements of your project. Our efficient supply chain ensures that you receive authentic, high-quality products in a timely manner.

Features

  • Single-armor construction provides additional crush and rodent protection
  • High-strength ripcord under armor for ease of stripping
  • Gel-free design is fully waterblocked using craft-friendly water-swellable yarns and tapes, making cable access simple and requiring no clean up
  • Available in 62.5 μm, 50 μm, single-mode and hybrid versions
  • Standard 3.0 mm buffer tube size reduces the number of access tools required by crafts personnel
  • SZ-stranded, loose tube design isolates fibers from installation and environmental rigors and allows for easy mid-span access
  • Available with extended operating temperature to -60°C (-76°F)
  • Medium Density Polyethylene jacket is rugged, durable and easy to strip
  • Available with Gigabit Ethernet performance

Specification

Nominal Weight (lb/1000 ft)
  • 95
Nominal Outer Diameter
  • 0.52 in
Minimum Bend Radius
  • Loaded: 19.7 cm (7.7 in)
  • Installed: 13.1 cm (5.2 in)
Maximum Tensile Loads
  •  Short-Term: 2700 N (600 lbf)
  •  Long-Term: 890 N (200 lbf)
Temperatures
  • Storage: -40° to +70°C (-40° to +158°F)
  • Installation: -30° to +70°C (-22° to +158°F)
  • Operation: -40° to +70°C (-40° to +158°F)
Approvals and Listings
  • RUS 7 CFR 1755.900
Common Installations
  • Outdoor lashed aerial and duct; indoor when installed according to National Electrical Code® (NEC®) Article 770

Design and Test Criteria

  • ANSI/ICEA S-87-640
