AFL 6 Strand 50/125 Multimode OM4 Indoor Plenum Fiber Optic Cable - Aqua (Per Foot)

$0.89
Reference#: 76893
Item#: AF-CP006C442C01-CRG



Description

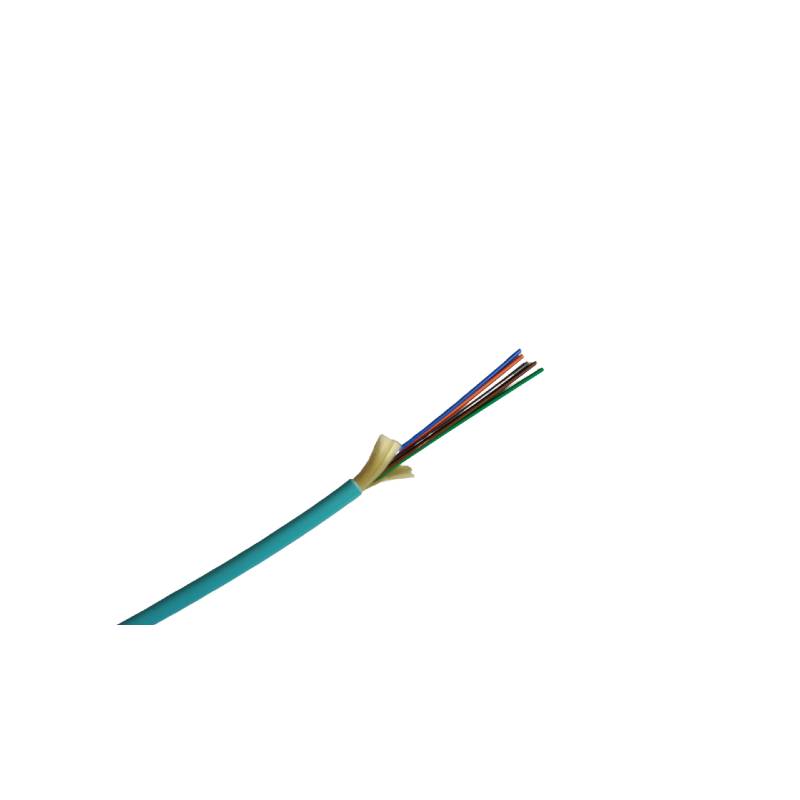

The AFL CP006C442C01-CRG 6 Strand OM4 Indoor Plenum fiber optic cable is a single-unit circular premise design that allows for excellent packaging density, flexibility, and ease of routing. Buffered to 900 µm, these cables can be directly terminated into connectors in loaded panels or in communications closets. We recommend using the AFL FASTConnect Fiber Optic Connectors.

This tight buffered OM4 fiber cable is ideal for routing between communications closets and equipment rooms and intrabuilding backbones. Don't have the tools to install fiber connectors? No problem, you can order this OM4 fiber cable pre-terminated for an easy plug-and-play install here:
Pre-Terminated OM4 Fiber Optic Cable Assembly.

The AFL CP006C442C01-CRG fiber cable is 0.17" in diameter and weighs approximately 0.13 lbs/ft. The Aqua-colored jacket is easy to identify as an OM4 fiber optic cable and is sold by the foot.

Specification

Mechanical Properties

  • Mfr. Part #: CP006C442C01-CRG
  • Fiber Count: 6
  • Nominal OD: 0.17 in (4.4 mm)
  • Bend Radius Installation: 2.6 in (6.6 cm)
  • Bend Radius Long Term: 1.7 in (4.4 cm)
  • Weight: 12 lb/kft (18 kg/km)
  • Tension, Short Term: 100 lbf (440 N)
  • Tension, Long Term: 30 lbf (140 N)

    Temperature

  • Operation 0 to +70 C
  • Storage Shipping -40 to +70 C
  • Installation 0 to +70 C

    Standards
    Tested in accordance with:

  • ICEA-S-83-596
  • GR-409-I2
  • CSA 22.2#232
  • NFPA 262

    Jacket Print
    OPTICAL FIBER CABLE
    PLUS CORNING 50um CLEARCURVE OM4 BIF 6 FIBER
    5012316 (ETL) TYPE OFNP FT6 c(ETL) RoHS
    Lot ####### MM/YY 000000 METERS
