Belden 709SC 1-Pair Quick Snap Splice Connector (200 pieces)

$109.95
Reference#: 68578
Item#: BE-709SC



Description

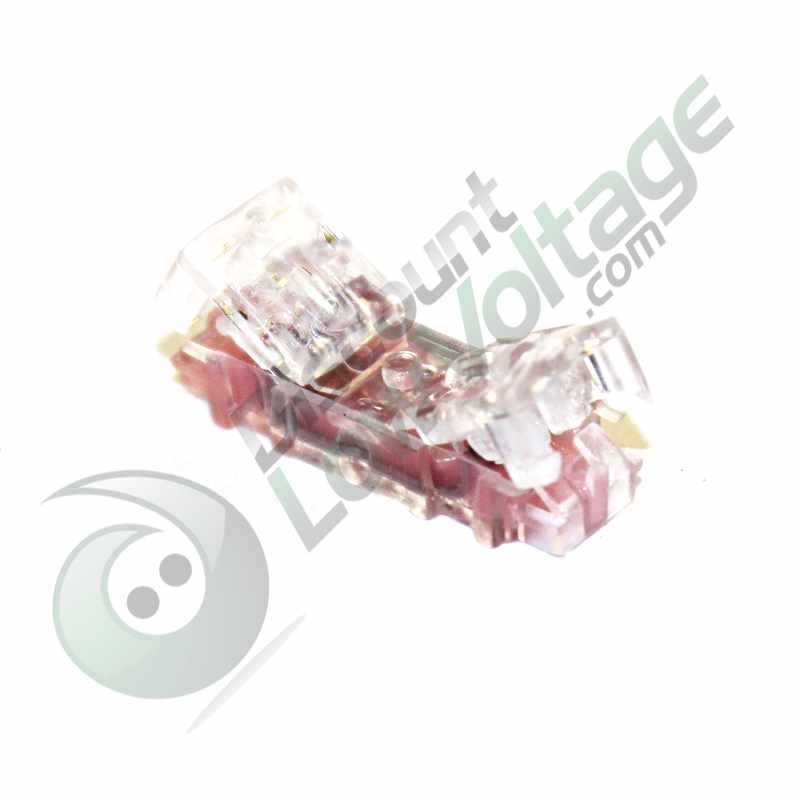

A single 709SC Quick Snap Connector provides cost-saving pair-at-a-time splicing. The single pair connector design reduces the number of connectors and the size of the splice bundle, thus saving time, sleeve material and encapsulant. The 709SC is an in-line splice, that accepts 2 conductors per side. The 709SC is easy to use, does not require any special tools, requires no stripping and is gel filled for indoor or outdoor use.

Features

Wire Connectors Filled

  • Verizon ID# 87261510
  • AT&T ID# 30091261
  • AT&T SE ID# 083011346
  • COMCODE 106795222
Note: 709sc connectors may be used to splice (or half-tap with 709cd) Any solid copper pair 22 thru 26 ga.

  • Filled Moisture Resistant Compound that provides protection from the elements in the Outside Plant Environment
  • No Special Tools Needed for Installation
  • Extended locking latches help improve the locking range of the connector
  • Increased chamfer size improves the seating of the contacts and prevents movement within the connector
  • Minimum installation effort required
  • USDA Rural Development Listed
  • UL Listed
  • RoHS Compliant

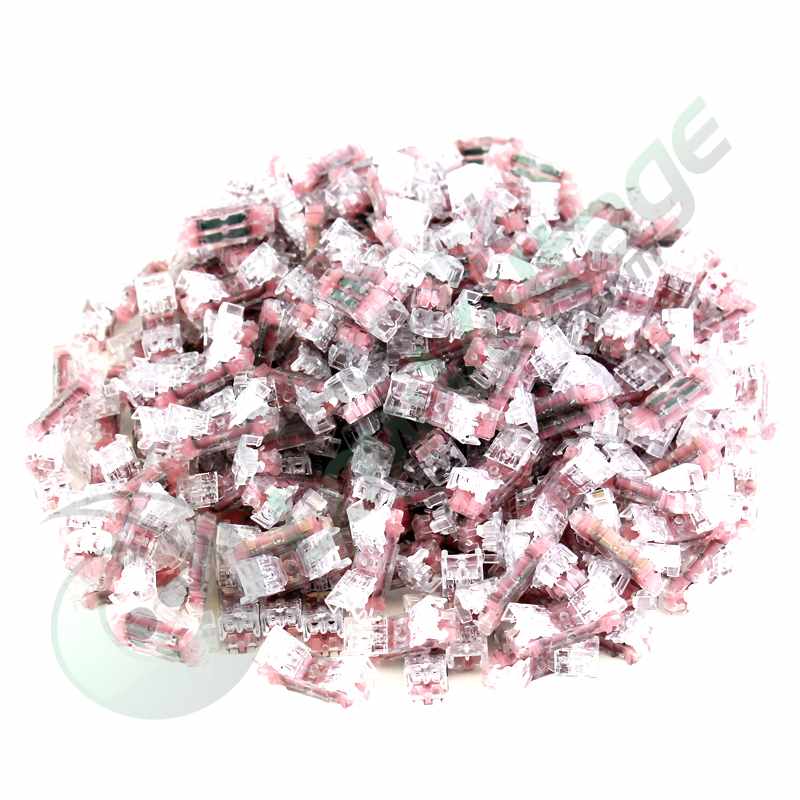

  • 200 709SC splice connectors per box

Specification

Installation

Splicing:

  1. DO NOT remove wire insulation.
  2. Raise end covers and fully insert pair approximately ½".
  3. Press connector covers closed with parallel jaw pliers until both latches are secure

Temperature

  • Withstands 1024 cycles from -40 °C (-40 °F) to 60 °C (140 °F). Cycle is 2 hours with ½ hour dwells at extreme temperatures.

Insulation Diameter

  • Will accommodate wire sizes up to .054" (1.37mm) in diameter. This includes 22 gauge HDPE.

Humidity

  • Withstands 300 cycles from 4 °C (40 °F) to 60 °C (140 °F) at 95% relative humidity. Cycle is 12 hours with about a 5 hour dwell at extreme temperatures.

Insulation Resistance

  • Greater than 20 x 109 ohms at 250 V DC.

709SC Gel Specifications Include the Following

  • Shelf Life: 2 years @ 32.2 °C (90 °F)
  • Dielectric Resistance: 1 KVA @ 5mm
  • Boiling Point: 310 °C (590 °F)
  • Melting Point: 95 °C (203 °F)
  • Freezing Point: -30 °C (-22°F)
  • Specific Gravity: 0.94

Contact Resistance

  • Using a maximum criterion of two milliohms per connection, there will be no more than one failure per 10,000 connections over the life of the installation.
  • Belden  (709SC)
