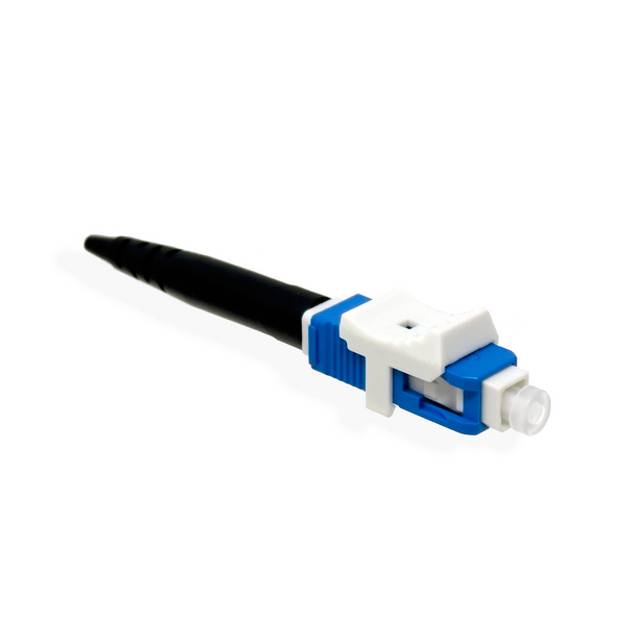

Dynacom Field Installable SC Connector SM UPC, Blue, For 0.9/2.0/3.0 MM -10 Pack<br>
$89.95
Reference#: 77818
Item#: DY-940-SC-10
Item#: DY-940-SC-10
Description
The Field Installable SC Connector delivers reliable, high-performance connectivity for single-mode fiber optic networks. With its UPC finish, versatile cable compatibility, and robust blue housing, it offers a dependable solution for field installations across various applications. Available in a convenient 10-pack, this connector is designed to meet the demands of telecommunications, data centers, enterprise networks, and residential installations.
Specification
Housing Color: Blue
Connector Polish: UPC
Termination: Mechanical splice
Application Cable Type: 3mm, 2mm jacketed cable; 900µm or 250µm buffered cable; 2x3mm drop cable
Mode: Single mode
Insertion Loss: AVG≤0.3 db, MAX≤0.5 db
Return Loss: Single mode UPC≥45 db, APC≥50 db
Tensile Strenght: ≥30 N (900µm≥5N)
Repeat Assembly: ≥3 times
Mechanical Endurance: 500 times
Operating Temperature: -25°C - 75°C
Connector Polish: UPC
Termination: Mechanical splice
Application Cable Type: 3mm, 2mm jacketed cable; 900µm or 250µm buffered cable; 2x3mm drop cable
Mode: Single mode
Insertion Loss: AVG≤0.3 db, MAX≤0.5 db
Return Loss: Single mode UPC≥45 db, APC≥50 db
Tensile Strenght: ≥30 N (900µm≥5N)
Repeat Assembly: ≥3 times
Mechanical Endurance: 500 times
Operating Temperature: -25°C - 75°C
