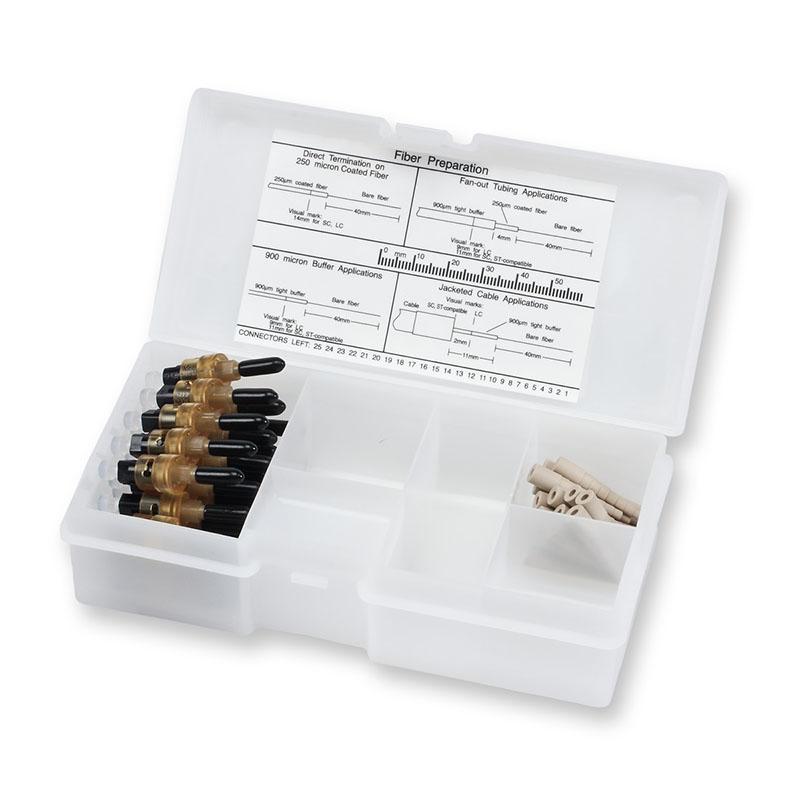

Corning Unicam Standard Performance ST Connector 62.5 OM1 Multimode (25 pack)
Item#: COR-95-000-50-Z
Description
Corning 95-050-50-Z UniCam ST connectors offer optical performance in a fast, easy field-termination solution ideal for fiber-to-the-workstation applications where setup and teardown time is critical. The high-precision mechanical splice technology enables fiber optic networks to be installed quickly and cost effectively. Installation of these Unicam ST connectors can be accomplished in about 50 seconds to one minute with the Corning TKT-UNICAM-PFC Tool Kit.
The lightweight, handheld installation tool and high-performance precision cleaver virtually eliminate human variability during installation, ensuring terminations are right the first time, every time. This kit was designed with consideration for network installers, from the cleaver, with its intuitive, hand-held precision design and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal indicating proper mating of the field fiber to the fiber stub. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance assured. Every UniCam connector is assured to meet the published specification at the time of installation or Corning will replace it.
Features
- Consistent optical performance
- Fast termination and no consumables
- Low installation cost
- Minimum insertion loss
- Optimum optical performance
Specification
Approval and Listings : Compliant with EIA/TIA 568-B.3
Intermateability : Connectors are FOCIS compliant with TIA/EIA 604-3 and IEC61754-4
General Specifications
Technology : No-Epoxy/No-Polish
Keyed : No
Product Type : Field-Installable Connectors
Corning Logo : Yes
Packaging : 25 Pack
Fiber Category : 62.5 µm MM (OM1)
Temperature Range
Operation : 0 °C to 60 °C , meets TIA/EIA 568-B.3 (32 °F to 140 °F , meets TIA/EIA 568-B.3)
Design - Connector A
Connector Type : ST Compatible
Ferrule : Composite
Housing Material : Composite
Housing Color : Amber
Boot Color : Beige
Mechanical Specifications - Connector A
Durability : ≤ 0.2 dB change by 500 rematings, FOTP-21
Tensile Strength Jacketed Cable : 44 N, change ≤ 0.2 dB, FOTP-6 (10 lb, change ≤ 0.2 dB, FOTP-6)
Tensile Strength 900µ Cable : 2.2 N, change ≤ 0.2 dB, FOTP-6 (0.5 lb, change ≤ 0.2 dB, FOTP-6)
Nominal Fiber Outer Diameter : 125 µm
Optical Specifications - Connector A
Insertion Loss, Typical : 0.3 dB
Insertion Loss, Max. : 0.75 dB
Reflectance : ≤ -20 dB
Polish : UPC
Chemical Characteristics
RoHS : Free of hazardous substances according to RoHS 2002/95/EG
