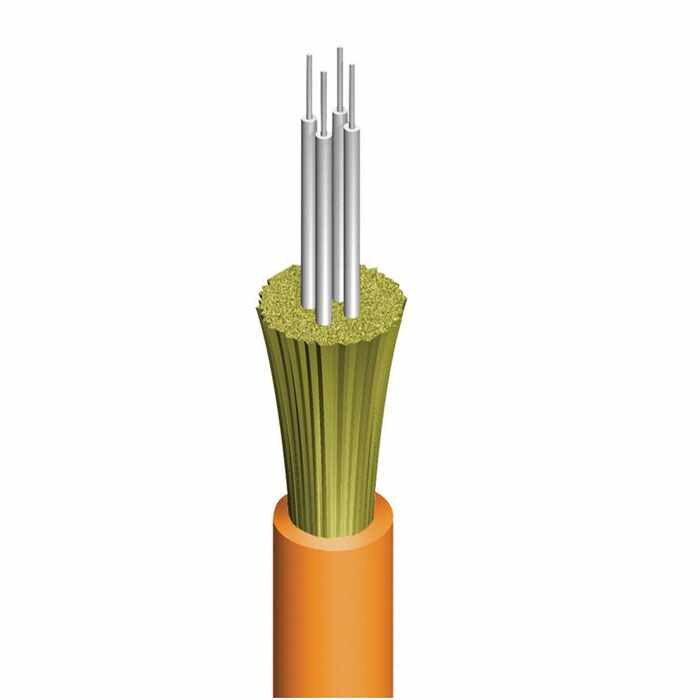

AFL 6 Strand 62.5/125 Multimode OM1 Indoor Plenum Fiber Optic Cable - Orange (Per Foot)

$0.60
Reference#: 68146
Item#: AF-CP0066441201



Description

These new designs meet or exceed GR-409 and ICEA-S-104-696. Customers benefit from a more compact, lighter weight and more robust Indoor Plenum Cable. Higher performance equals better value over previous designs.

Applications:
Connectorized communications cables with both send-and-receive and send-and-receive backup in a single unit
Routing between communications closets and equipment rooms
Intrabuilding backbones

Features

  • Tested to meet or exceed EIA/TIA 568-A/GR-409-CORE
  • Compliant to Directive 2002/95/EC (RoHS)
  • Mixed Fiber Design Available

Specification

Nominal Weight
  • 13 lbs
Nominal Outer Diameter
  • 0.17 in
Minimum Bend Radius
  • Loaded: 5.0 cm (2.0 in)
  • Installed: 7.2 cm (3.0 in)
Maximum Tensile Loads
  • Short-Term: 440 N (100 lbf)
  • Long-Term: 132 N (30 lbf)

Temperatures

  • Storage: -40° to +70°C
  • Installation: 0° to +70°C
  • Operation: 0° to +70°C
