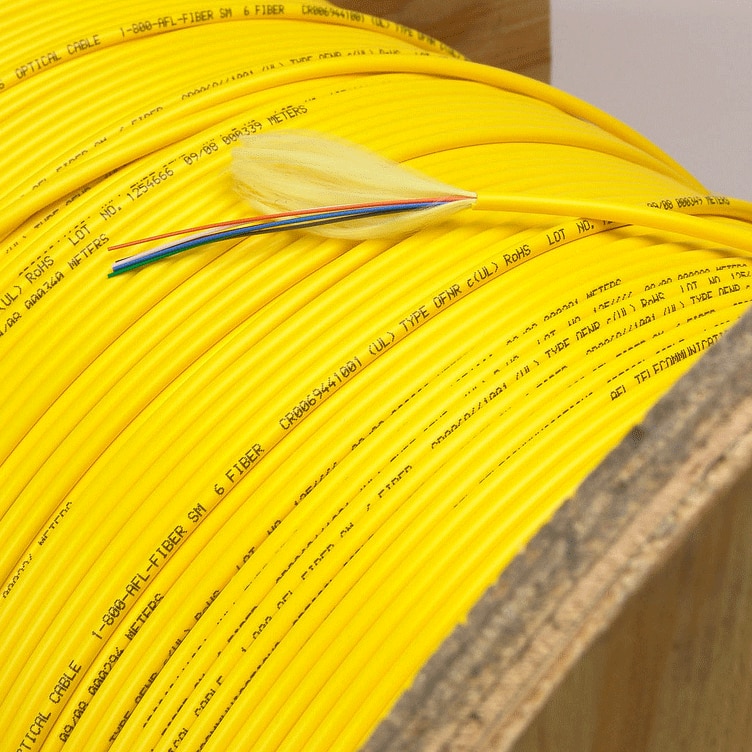

AFL 6 Strand Singlemode Indoor Plenum Fiber Optic Cable - Yellow (Per Foot)

$0.38
Reference#: 76164
Item#: AF-CP0064442901



Description

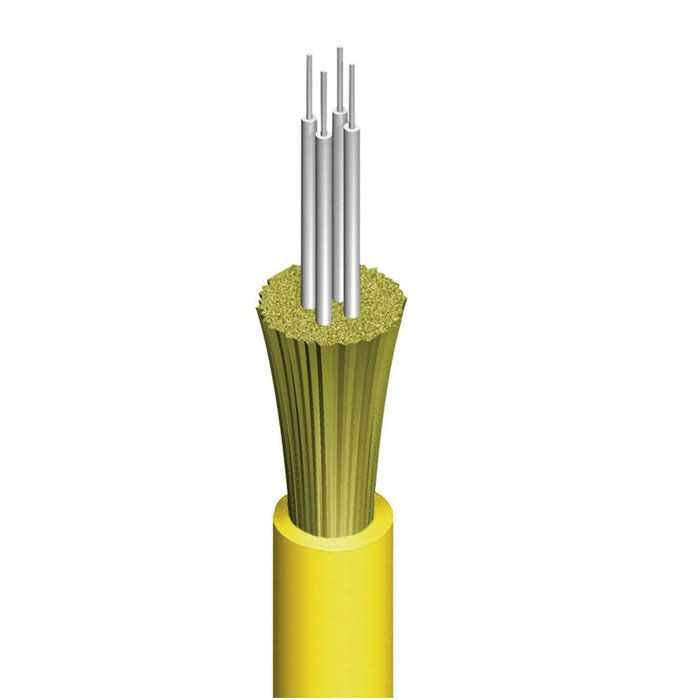

Quad-Link and single unit Circular Premise Cable designs allow for excellent packaging density, flexibility, and ease of routing. Buffered to 900μm, these cables can be directly terminated into connectors in loaded panels or in communications closets. Sold by the foot.

* Note: CP0064442901 replaces old item # CP0069441901

Features

  • Connectorized communications cables with both send-and-receive backup in a single unit
  • Routing between communications closets and equipment rooms
  • Intrabuilding backbones
  • Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE
  • Compliant to Directive 2002/95/EC (RoHS)
  • Mixed fiber designs available
  • AFL part number CP0069441001 Sold per foot.

Specification

Nominal Weight (lb/1000 ft)
  • 17
Nominal Outer Diameter
  • 0.19 in
Maximum Bend Radius
  • Installation: 7.2 cm (3.0 in)
  • Loaded:  5.0 cm (2.0 in)
Maximum Tension
  • Installation: 286 lbs
  • Long-Term:  143
Temperatures
  • Storage: -40°C to +75°C
  • Operation: -20°C to +70°C
  • Installation: -20°C to +70°C
Design and Test Criteria
  • Tested to meet or exceed EIA/TIA 568-B3 / Telcordia GR-409-CORE
