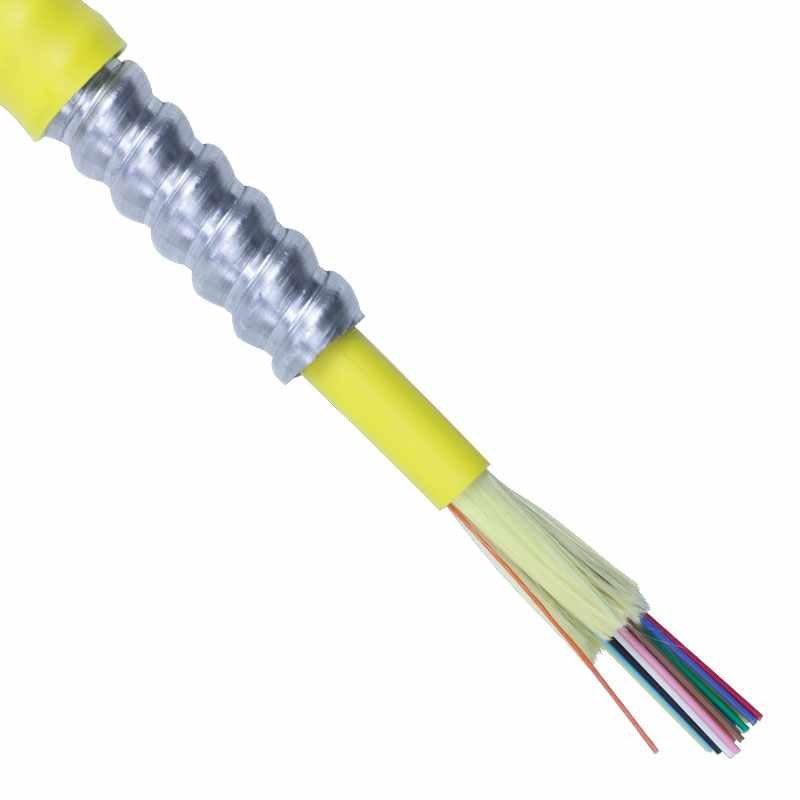

AFL 12 Strand Singlemode Indoor Armored Plenum Fiber Optic Cable - Yellow (Per Foot)

Reference#: 68154
Item#: AF-CP0124552901-AIAP


Rugged yet light in weight, AFL 12-Strand Single-Mode Indoor Armored Plenum Yellow Fiber Optic Cable offers excellent packaging density and flexibility. It is UL listed and jacketed with aluminum interlocking armor that offers the best balance of ruggedness, low weight and flexibility. Interlocking armor can also be used with other types of cable, including indoor/outdoor tight-buffered cables.
Use this cable inside buildings for applications that require extra ruggedness. Examples include buildings with potential rodent problems as well as harsh industrial environments and manufacturing plants. This cable is also ideal for high-density routings in data-center applications.
·Nominal Diameter: 0.46”
·Installation Bending Radius: 7.0”
·Long-Term Bending Radius: 4.8”
Free shipping is available for qualified orders of $200 or more, with delivery usually taking two to five business days. Quicker shipping options are also available.
Because we sell this fiber optic cable by the foot, you can buy without waste. Quantity discounts also are available, meaning the more you buy, the more you save. If you need to save time in the field, we can also quickly and inexpensively pre-terminate this cable for you. Call us toll-free if you have questions.


  • Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required
  • Extra protection for fiber optic cables in harsh industrial environments
  • Manufacturing plants
  • High-density routings in data center application


Nominal Diameter
  • 0 .46 in (11 .8mm)
Weight Plenum
  • 82 lbs (122 KG/KM)
Tension Installation
  • 100 lbs (440 N)
Tension Long Term
  • 30 lbs (132 N)
Bending Radius Installation Inches (cm)
  • 7 .0 in (17 .7 cm)
Bending Radius Long Term
  • 4 .8 in (12 .2 cm)
