AFL 12 Strand 50/125 Multimode OM4 Indoor Plenum Fiber Optic Cable - Aqua (Per Foot)

$1.70
Reference#: 68156
Item#: AF-CP012C552C01-CRG



Description

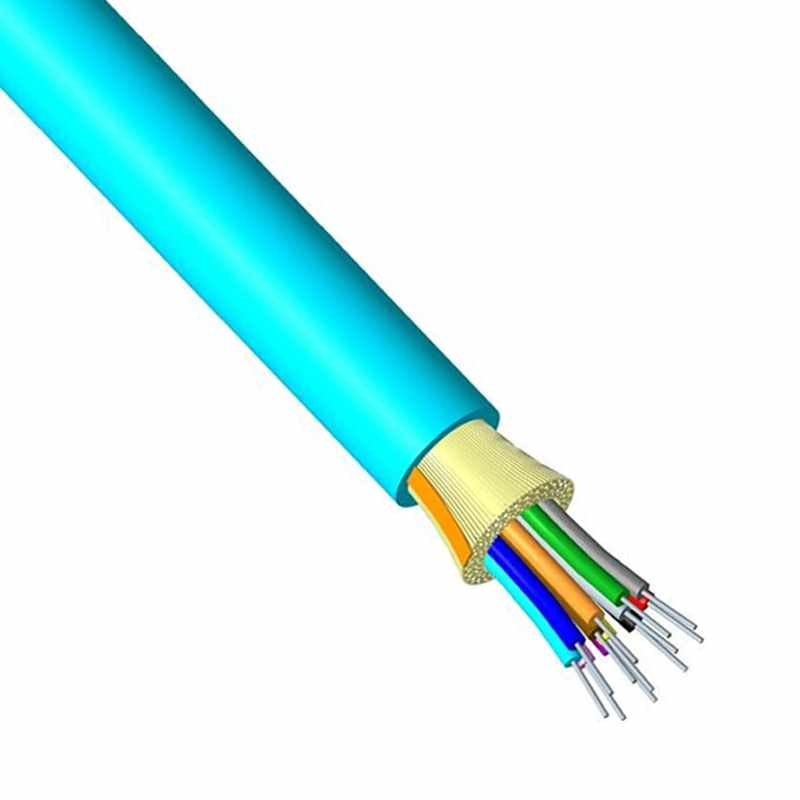

QUAD-Link and single unit Circular Premise Cable designs allow for excellent packaging density, flexibility, and ease of routing. Buffered to 900 µm, these cables can be directly terminated into connectors in loaded panels or in communications closets.


* Note: AFL item # CP012C552C01-CRG replaces old item #CP012C551C01-BIF

Features

  • Connectorized communications cables with both send-and-receive and send-and-receive backup in a single unit
  • Routing between communications closets and equipment rooms
  • Intrabuilding backbones

Specification

Maximum Attenuation (DB/KM)
     850 nM
  • 3 .0
     1300 nM
  • 1 .2
     1550 nM
  • N/A
 Overfill launch MIn. Bandwidth (Mhz•kM)
     850 nM
  • 3500
     1300 nM
  • 550

     eMBc (Mhz•kM)
  • 4700
Gibabit Ethernet Min. Link Distance (Meters)
     850 nM
  • 1040
     1300 nM
  • 550
     850 nM
  • 550
