AFL 24 Strand 50/125 Multimode OM4 Indoor Armored Plenum Fiber Optic Cable - Aqua (Per Foot)

Reference#: 77535
Item#: AF-CP024C842C01-CRG-AIAP

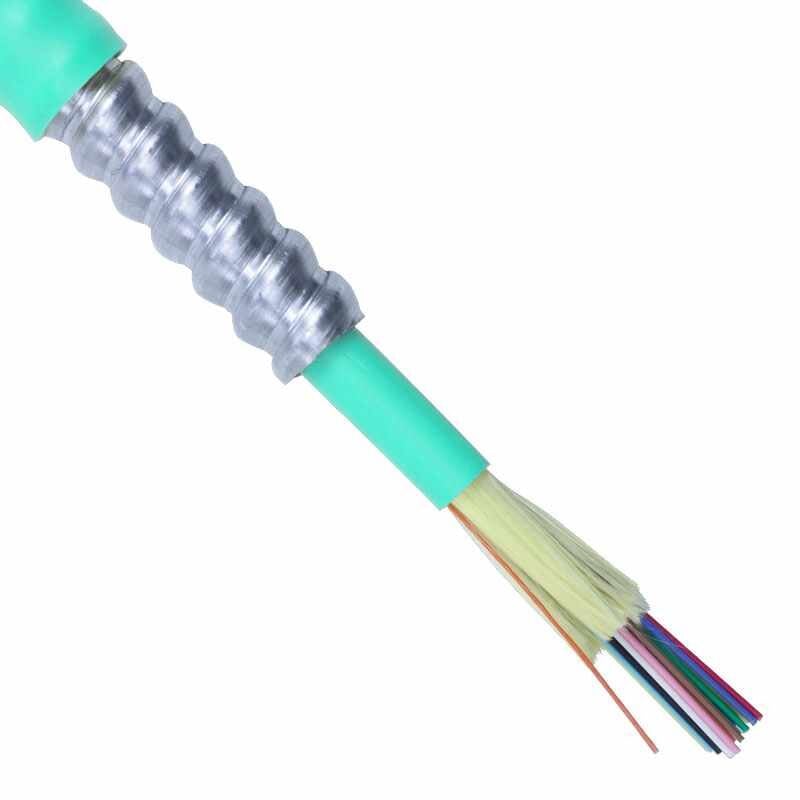

This AFL CP024C842C01-CRG-AIAP Armored Tight Buffered Fiber Optic Cable incorporates 24 strands in a UL listed, jacketed, aluminum interlocking armor. Jacketed aluminum interlocking armor provides the best balance of ruggedness, flexibility, and low weight.

Note: CP024C842C01-CRG-AIAP replaces old item # CP024C841C01-BIF-AIAP


  • Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required
  • Extra protection for fiber optic cables in harsh industrial environments
  • Manufacturing Plants
  • High-density routings in data center application


Nominal Weight (lb/1000ft)
  • 144 lbs
Nominal Outer Diameter
  • 0.62 in
Minimum Bend Radius
  • Installation: 9.3 in (23.6 cm)
  • Long Term: 5.3 in (13.4 cm)

Maximum Tensile Loads

  • Installation: 660 N (150 lbs)
  • Long Term:  198 N (45 lbs)


  • Storage:  -40°C  to  +75°C
  • Installation:  0°C  to  +70°C
  • Operation:  0°C  to  +70°C
TestedMeets or exceed EIA/TIA 568-B3 / Telcordia GR-409-CORE
