AFL Clip LC duplex, FAST/FUSECONNECT, 100 pack

$77.11
Reference#: 76522
Item#: AF-CS010437-100



Description

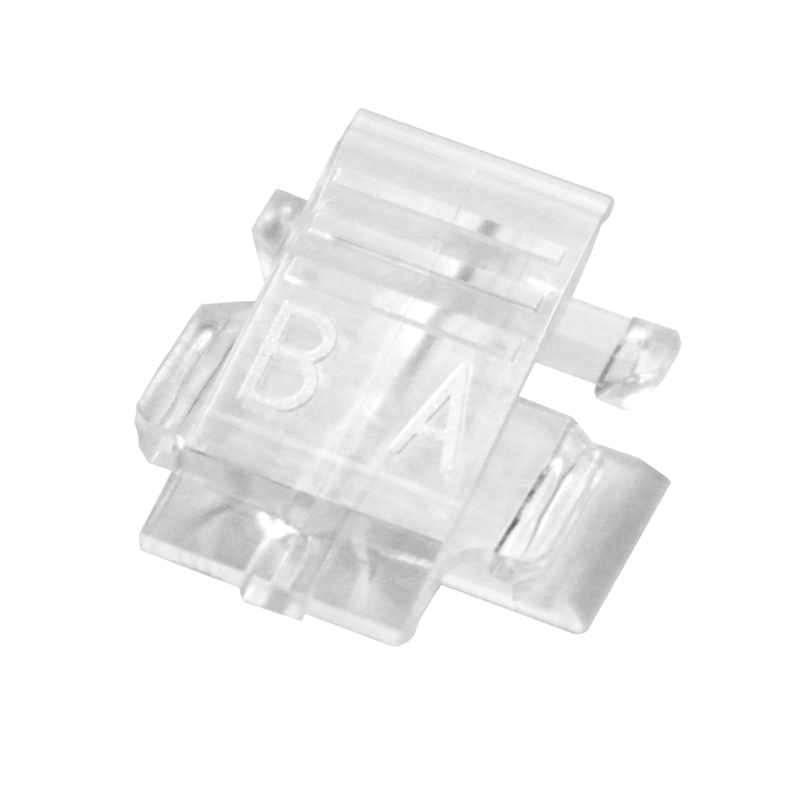

Use the AFL CS010437-100 clips to create a duplex connector on the FastConnect and FuseConnect fiber optic connectors. Great for use when inserting fiber connectors into SFP modules, switches and coupler panels. This is a 100-pack of clips.

! CLIPS ONLY - THESE DO NOT COME WITH CONNECTORS !

Specification

  • Connector Type: LC
  • Cable Type 900μm, 2mm, 3mm
  • Polish APC, UPC, PC
  • Insertion Loss SM: 0.15dB (average), 0.3dB (maximum) / MM: 0.10dB (average), 0.3dB (maximum)
  • Return loss SM = > 65dB (APC), > 55dB (UPC) / MM = > 30dB (PC)
  • Operating Temperature –40°C to +75°C
